New SAN Series
Key Facts
- High-performance superheterodyne receiver
- Frequency range: 9 kHz to 4.5/6/9 GHz
- IF and image rejection: >95 dBc (typ.)
- 1 GHz DANL: -168 dBm/Hz (typ.)
- 1 GHz phase noise: <-110 dBc/Hz@10 kHz (typ.)
- 1 GHz phase noise measurement: <-125 dBc/Hz@10 kHz (typ.)
- Analysis bandwidth: 50 MHz/100 MHz (opt.50) (typ.)
Available Models

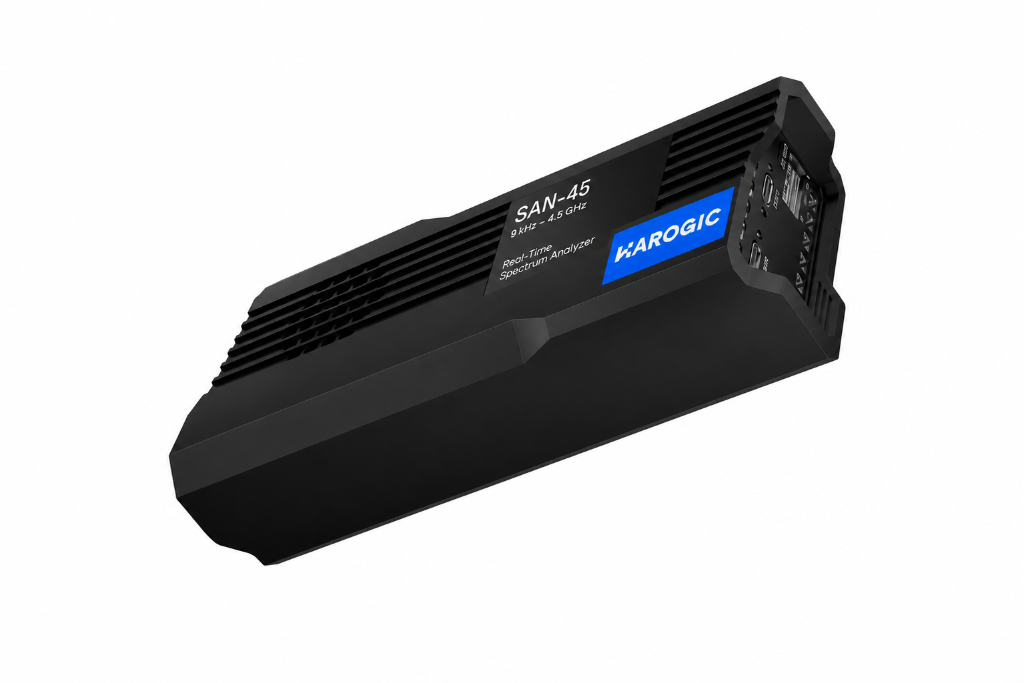

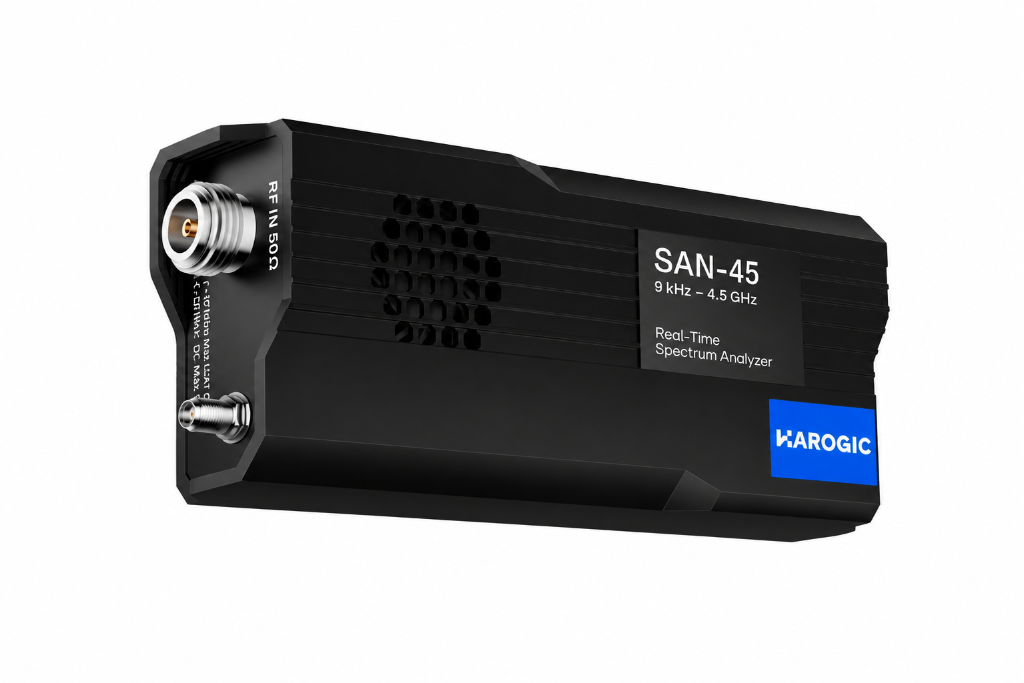

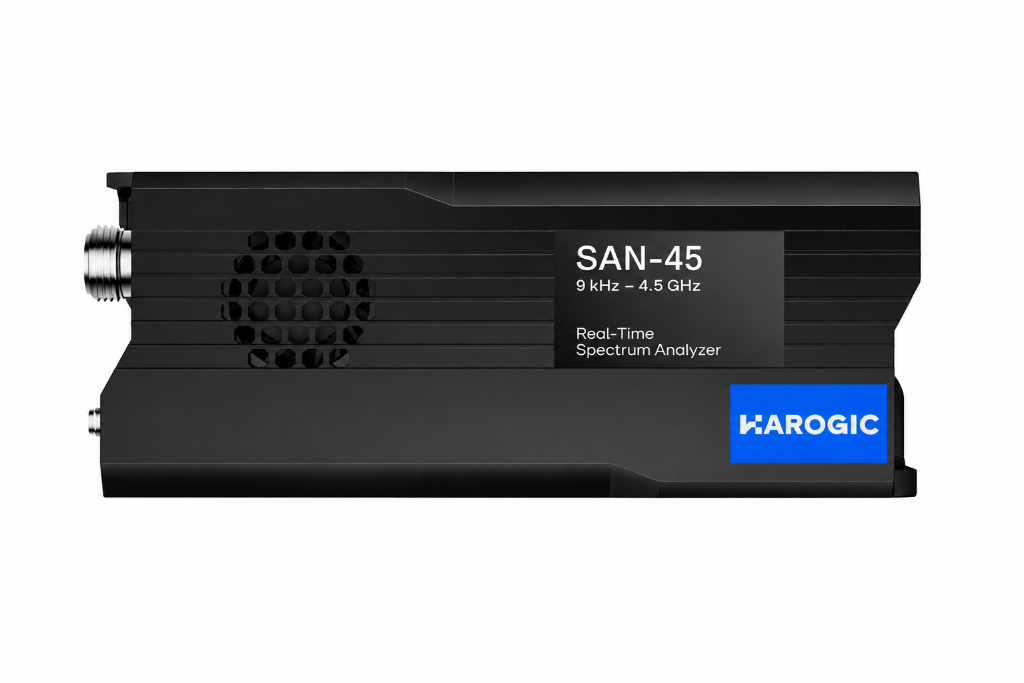

SAN-45
9 kHz – 4.5 GHz
9 kHz – 4.5 GHz

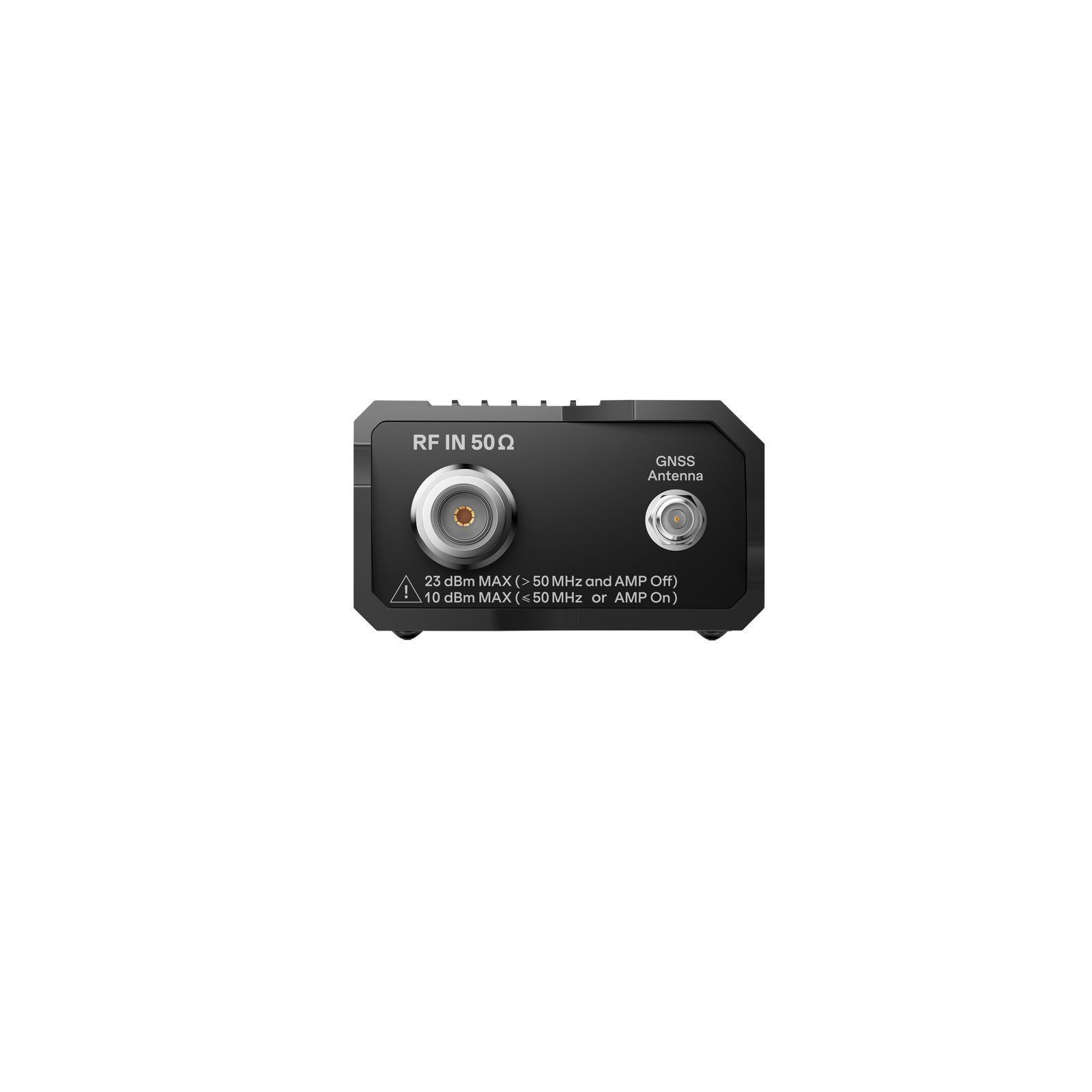

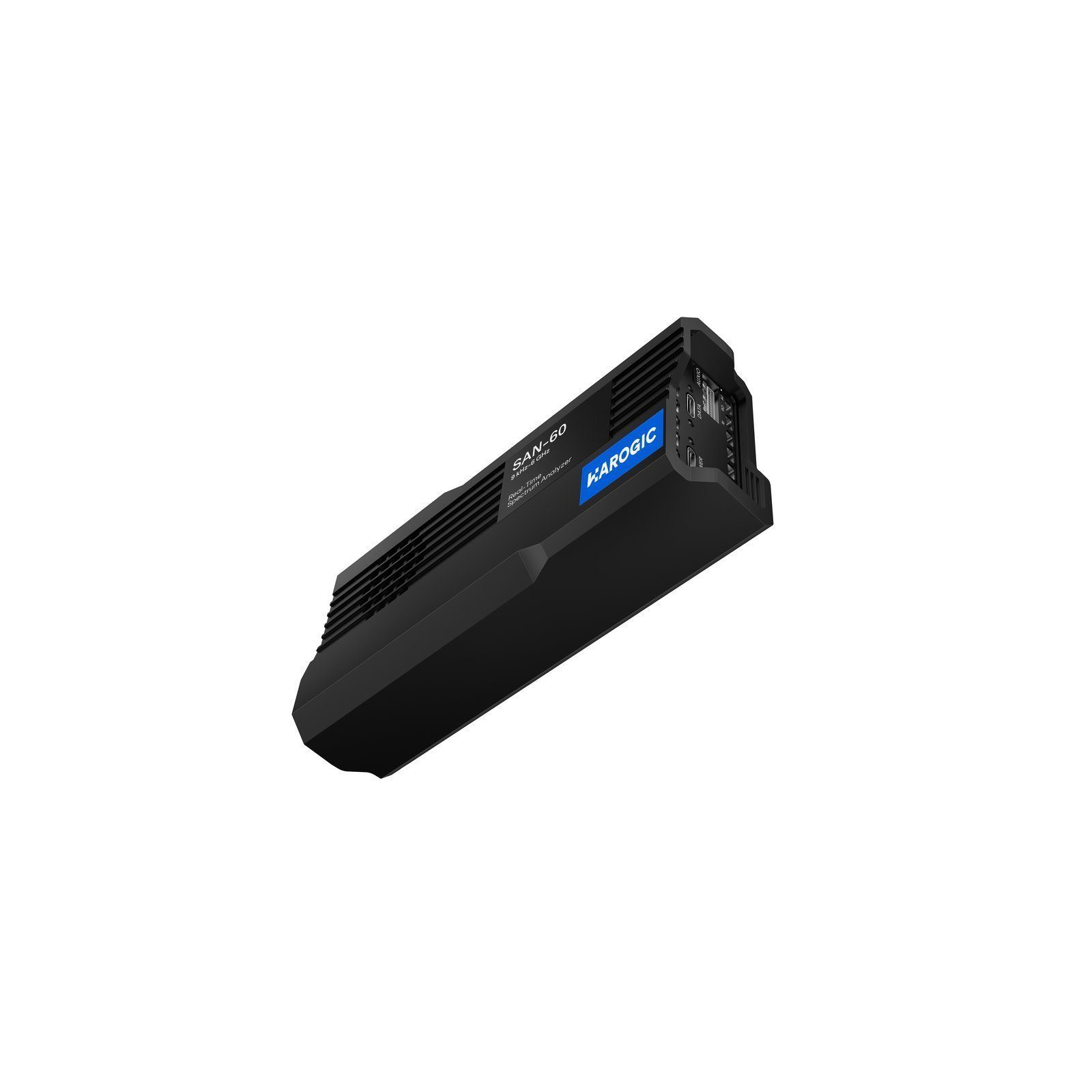

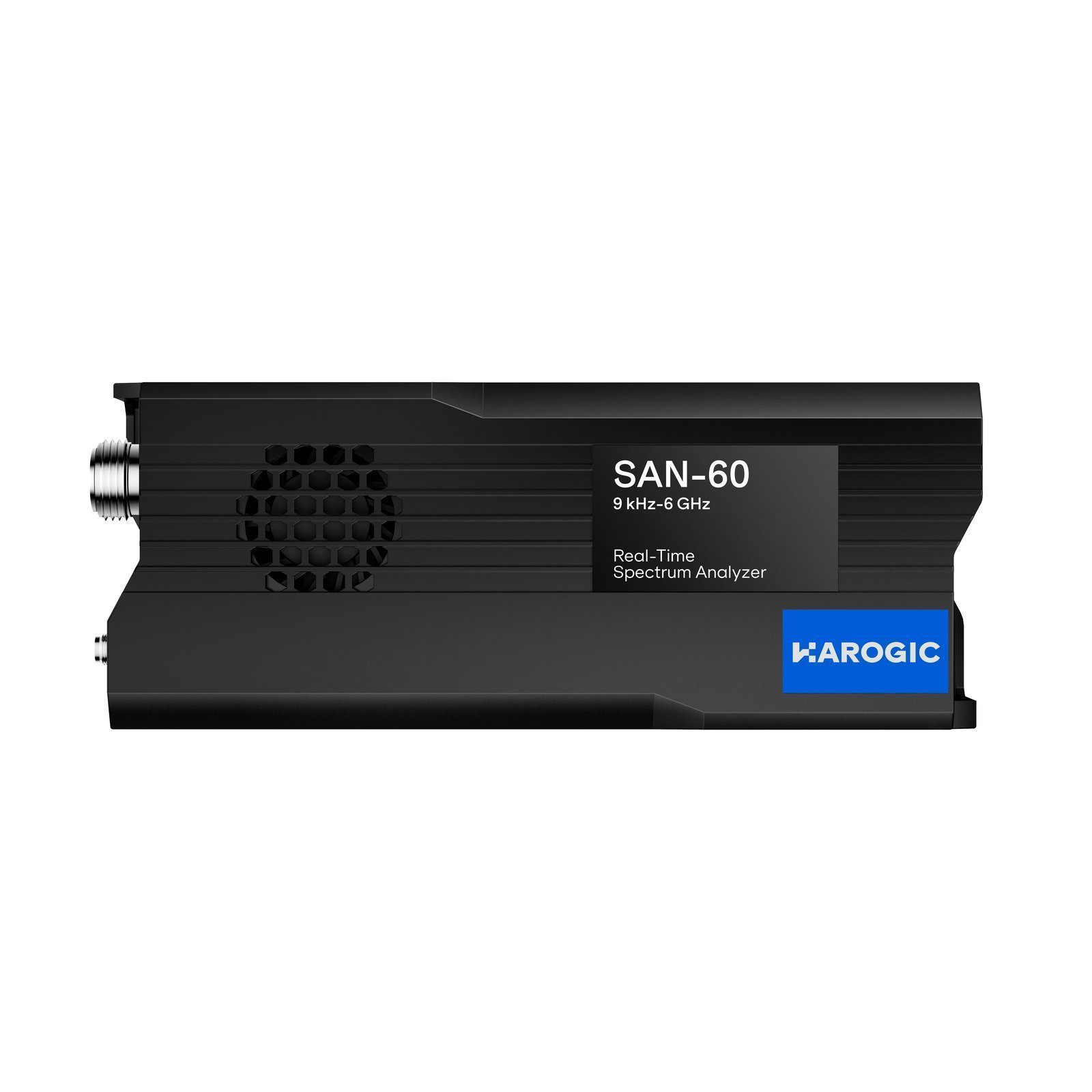

SAN-60
9 kHz – 6 GHz
9 kHz – 6 GHz

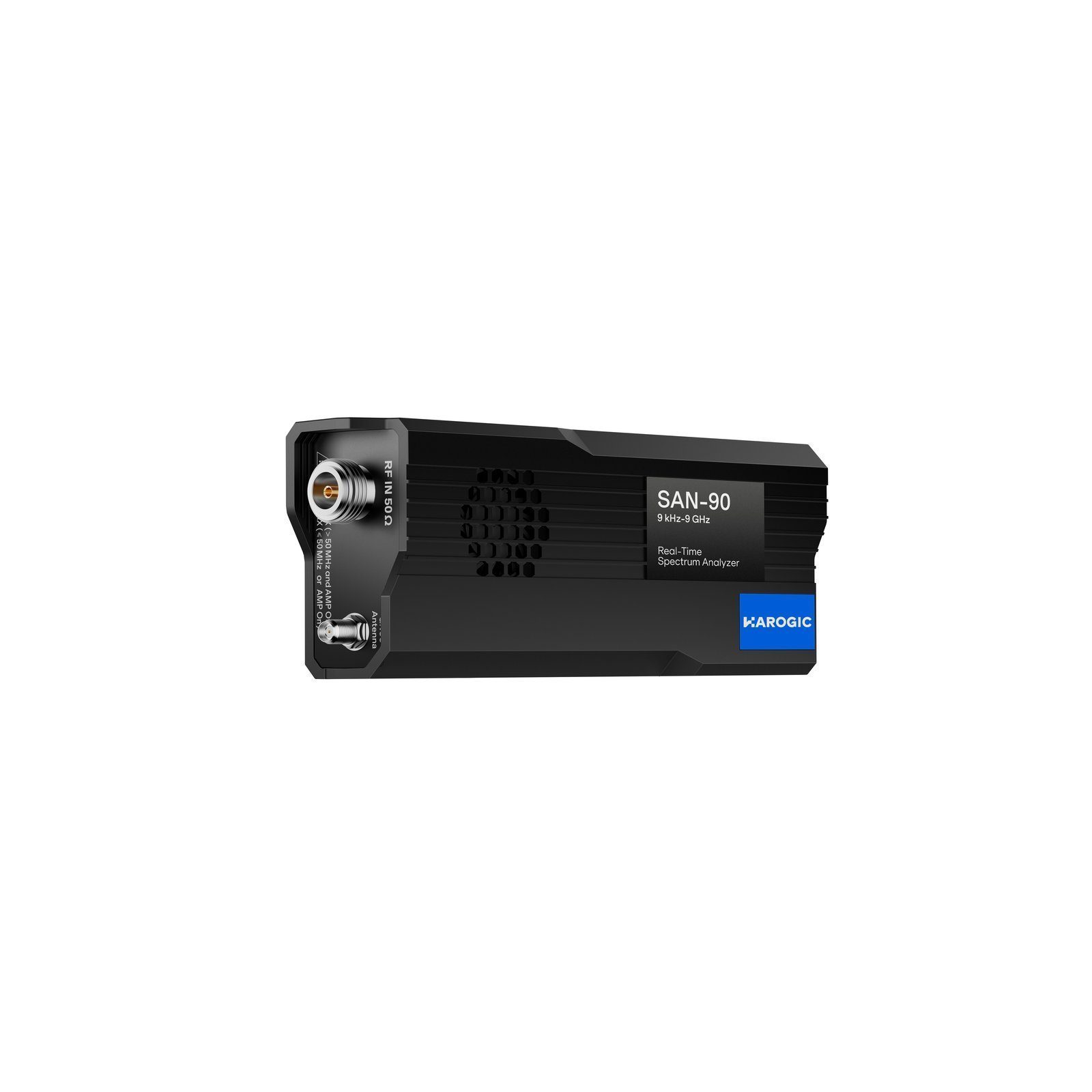

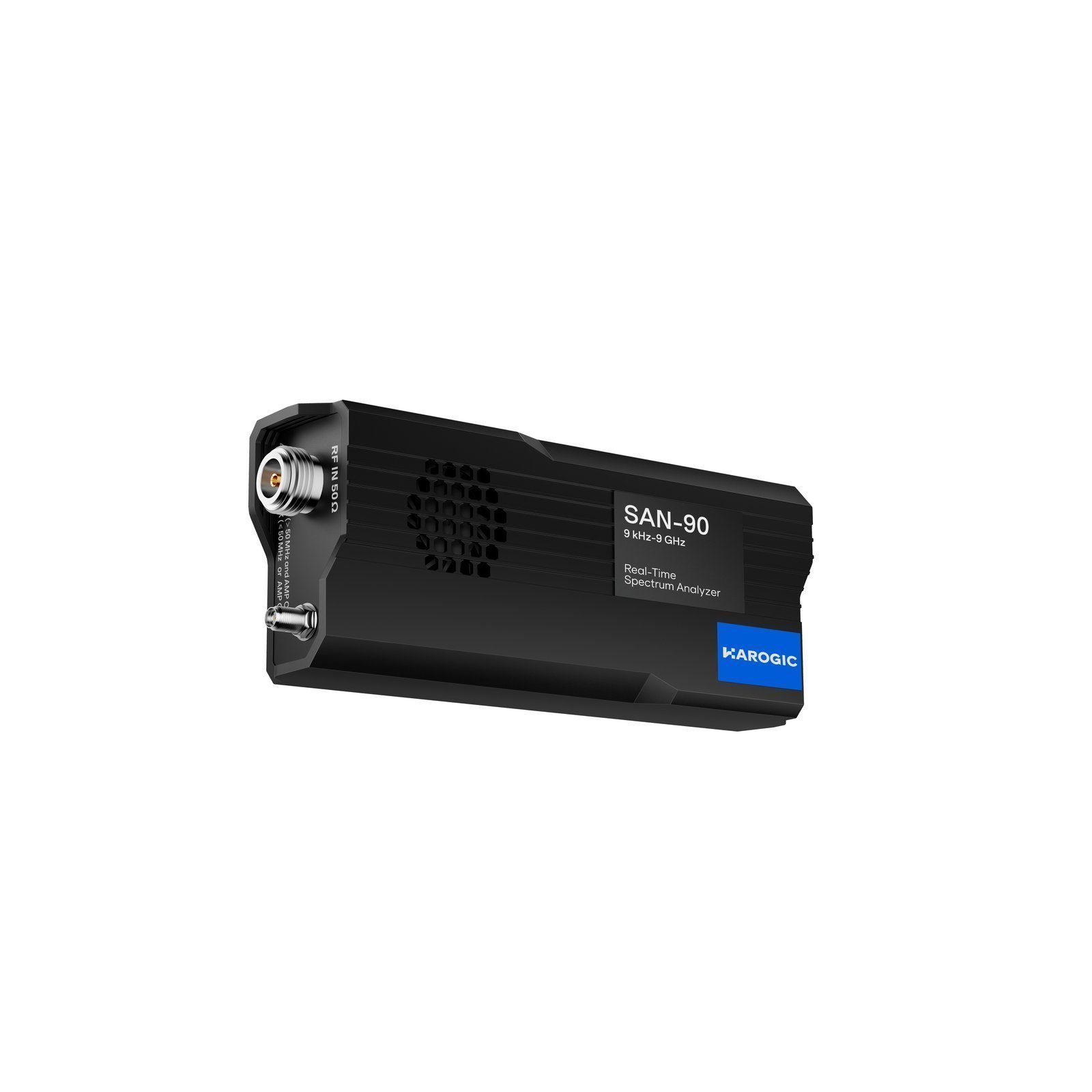

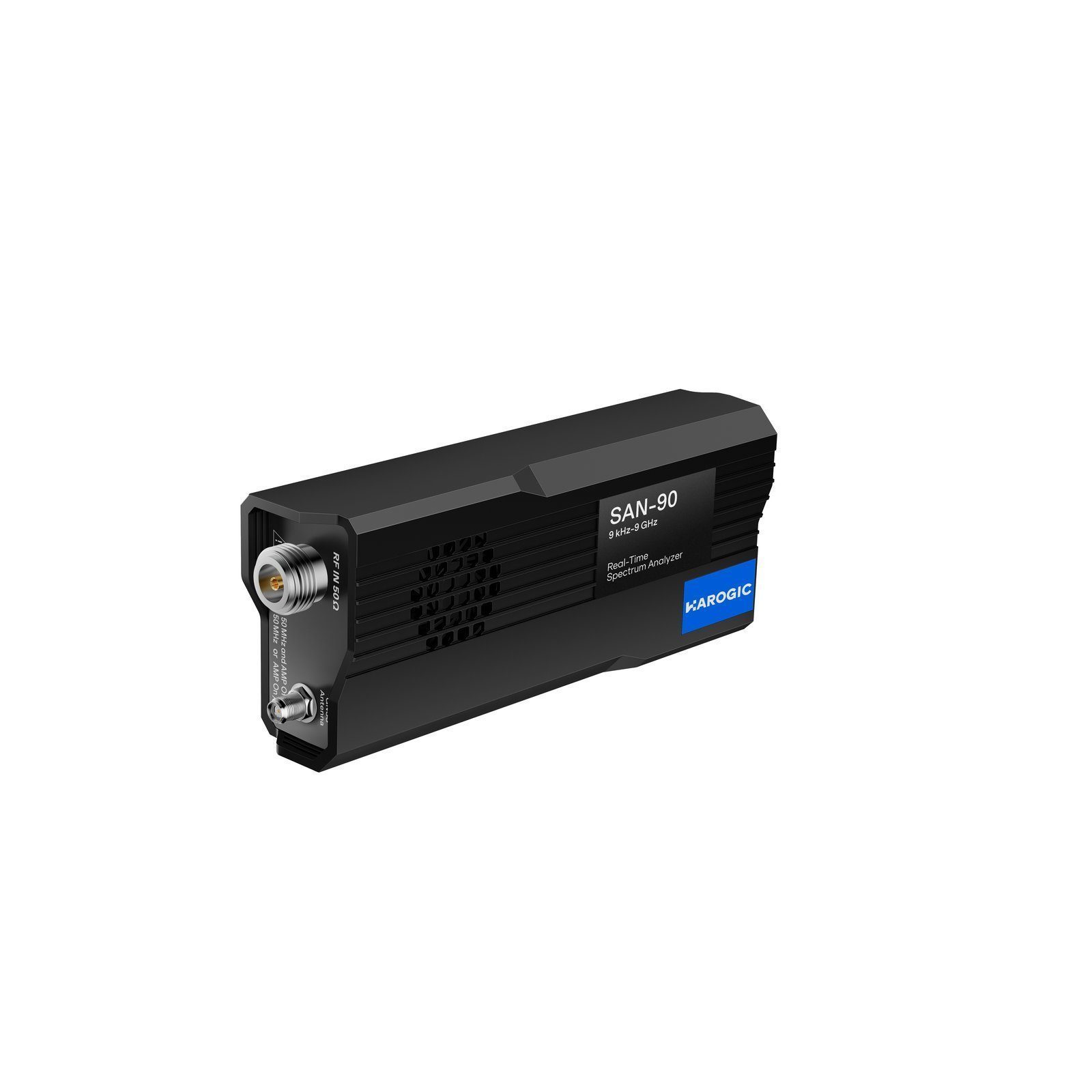

SAN-90
9 kHz – 9 GHz
9 kHz – 9 GHz
Available Models Comparison
NEW SAN SERIES
Model
Product Manual
Frequency
Phase Noise 1 GHz,
10 kHz offset
10 kHz offset
DANL 1 GHz,
Amp On
Amp On
Analysis Bandwidth
Sweep Speed
RBW=250 kHz
RBW=250 kHz
Options
Code
Option
Description
01
Built-in OCXO reference clock
built-in hardware
05
Internal high precision GNSS
built-in hardware

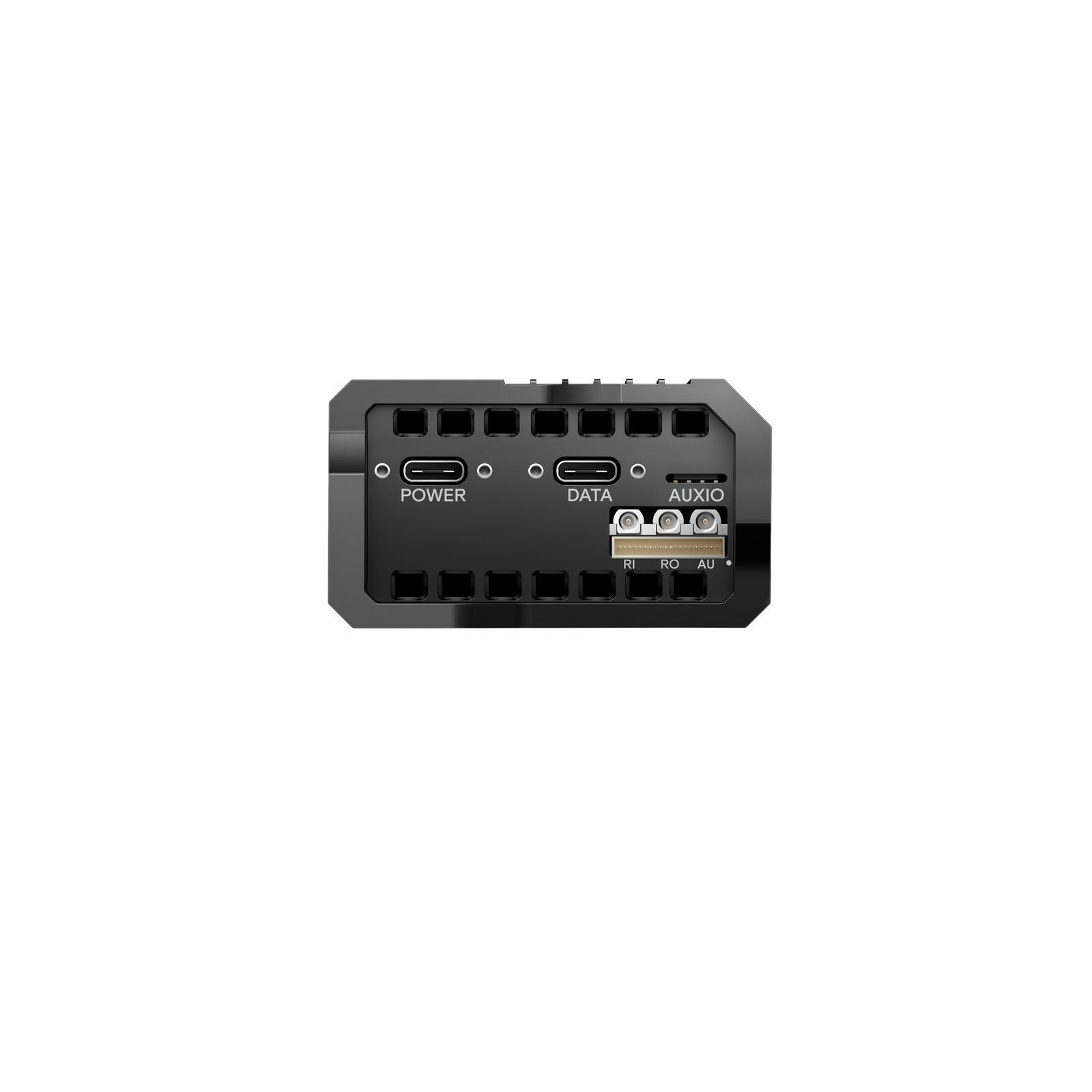

20
AUXIO IO Expansion board
accessory
34
External omnidirectional antenna, 400MHz to 8000MHz,
Gain<2dBi
accessory
35
External active directional antenna, frequency range: 0.5
to 10 GHz
Gain: < 5 dBi (amp off); < 25 dBi(amp on)
Gain: < 5 dBi (amp off); < 25 dBi(amp on)
accessory
40
T1 temperature class
built-in hardware
41
T2 temperature class, only available for core
built-in hardware
50
100 MHz analysis bandwidth
built-in hardware
71
Basic vector modulation analysis
software
72
Pulse analysis
software
