Key Facts
- Frequency range: 9 kHz to 6 GHz
- Maximum level output：7 dBm to 14 dBm
- Level output up to 25 dBm (opt.)
- 1 GHz phase noise: < -124 dBc/Hz@10 kHz
- Maximum real-time bandwidth: 50 MHz
- Maximum playback output bandwidth: 100 MHz
- 0 dBm output harmonics: <-50 dBc (typ.)
- Operation time: 2.5 hours (typ.)
Available Models & Views
Technical Overview
The HAROGIC PGA-60 is a breakthrough 1.4 kg handheld vector signal generator covering 9 kHz to 6 GHz. Designed to eliminate testing limitations in the field, it features a vivid 10.1-inch multi-touch display, integrated SGStudio software, internal battery power, and 100 MHz instantaneous playback bandwidth. Perfect for wireless network maintenance, radar verification, UAV communication testing, and field RF stimulus.
True Handheld Field Mobility

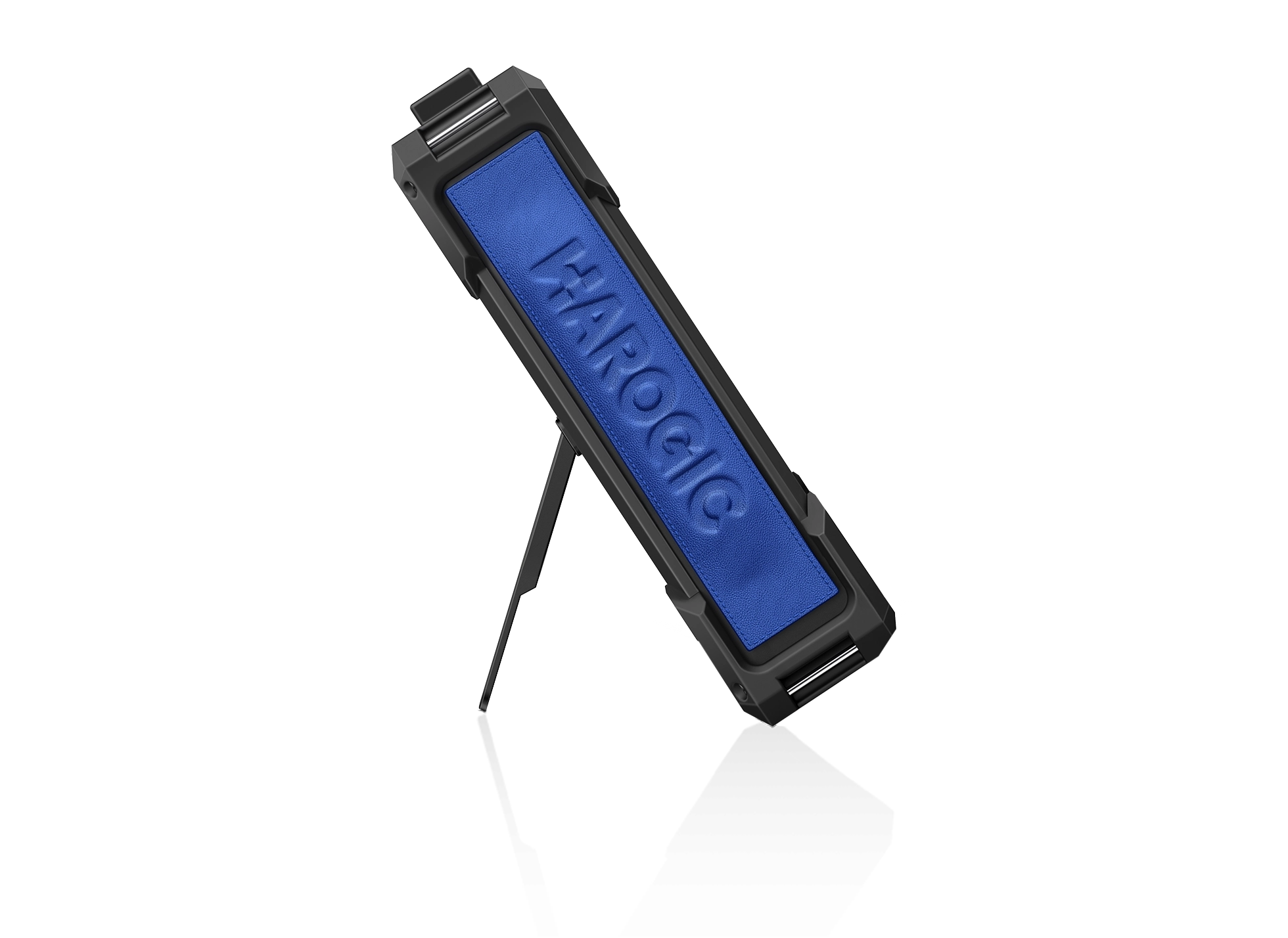

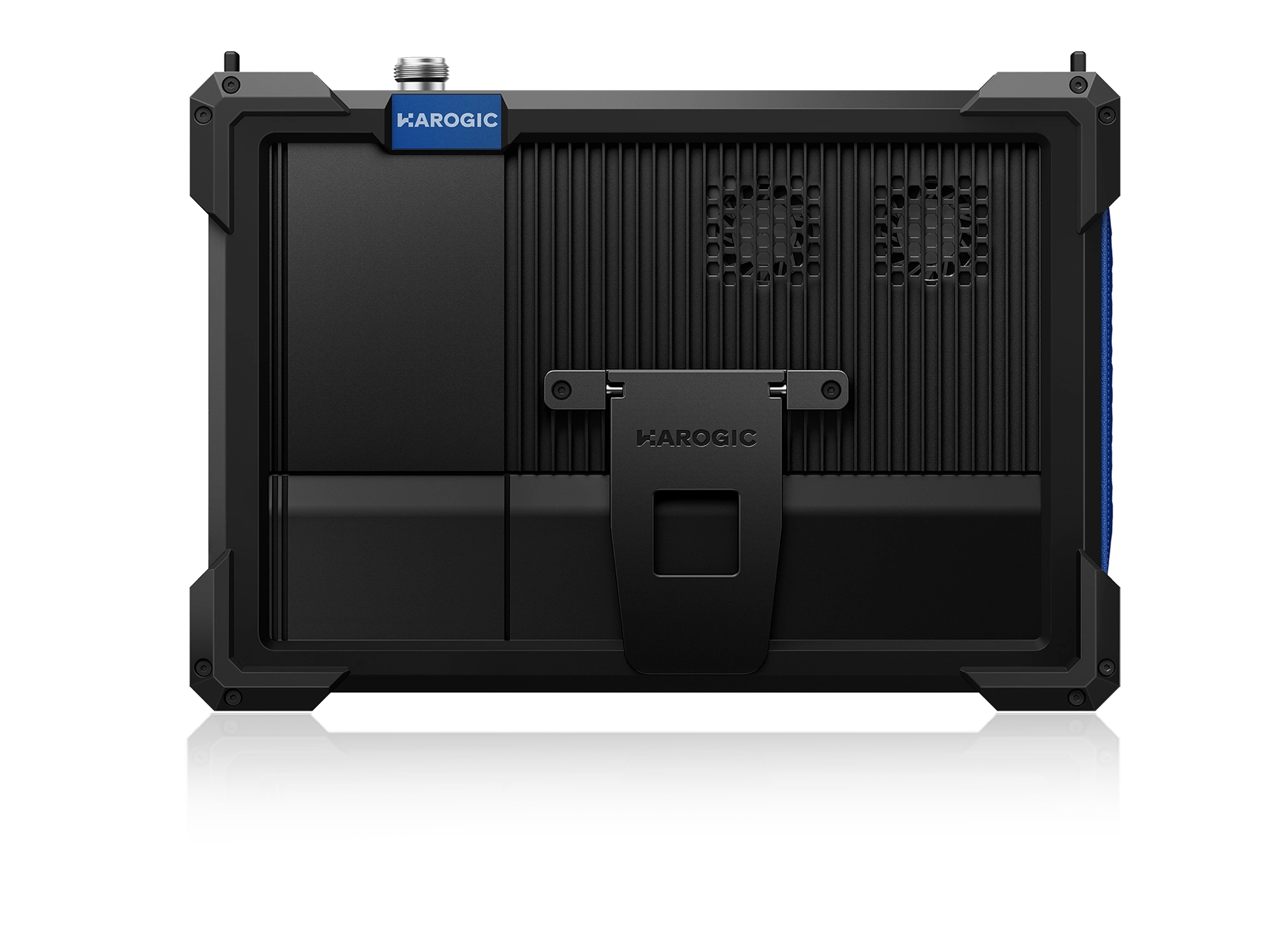

Weighing only 1.4 kg with an ergonomic design and drop-resistant bumpers, the PGA-60 provides all-day field testing without operator fatigue.

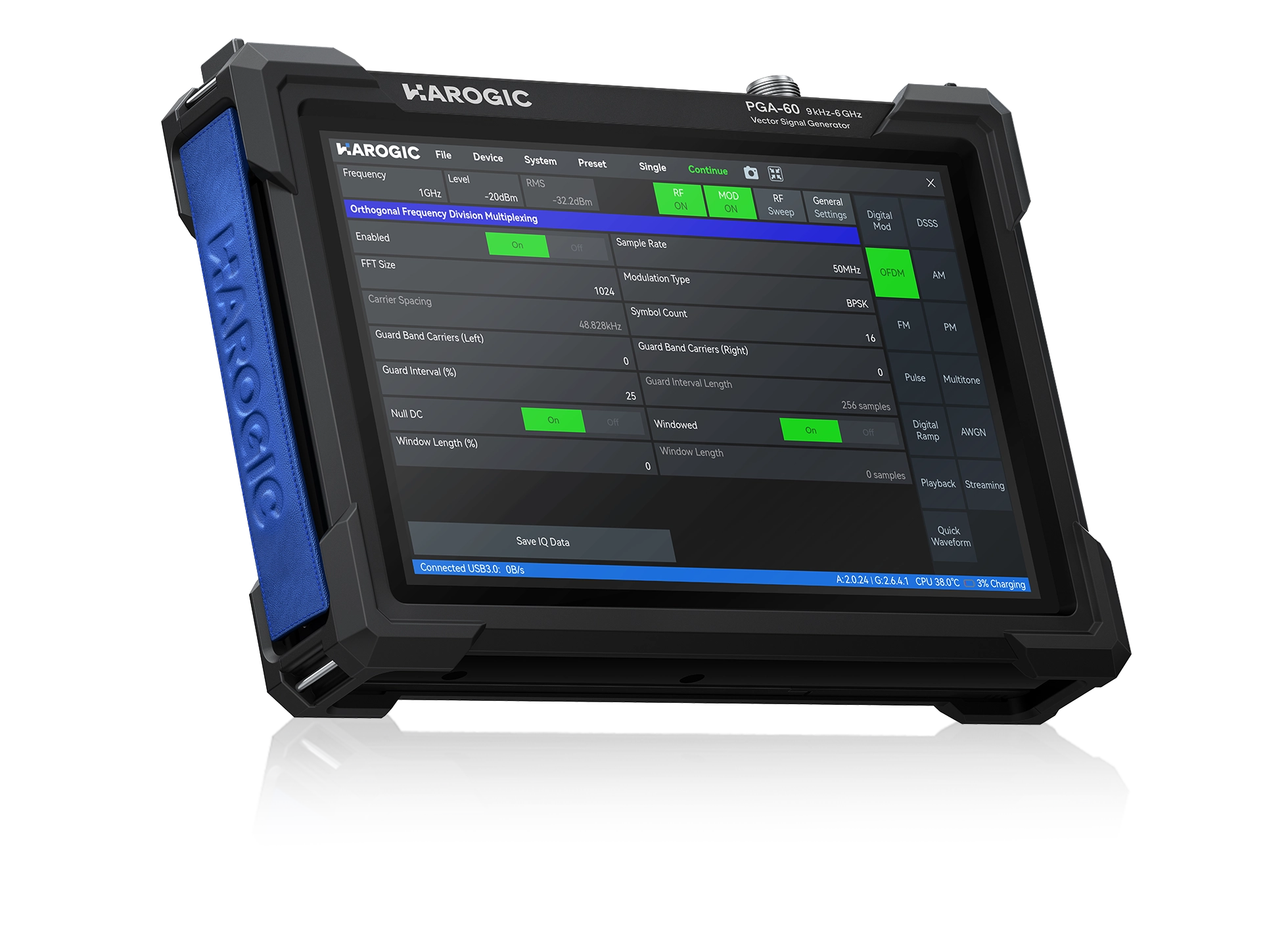

10.1" Multi-Touch User Interface
High-resolution touchscreen interface allows engineers to set frequencies, configure complex modulation schemes, and view constellation parameters with tablet-like responsiveness.
Comprehensive Modulation Library
Generates CW, AM, FM, Pulse, FSK, PSK, QAM, and custom arbitrary waveforms up to 100 MHz bandwidth for realistic wireless communications testing.
Dual Power Flexibility
Internal rechargeable battery powers up to 2.5 hours of testing, with hot-swappable external USB-C power bank compatibility for extended field missions.
