Key Facts
- Frequency range: 10 MHz to 6 / 9 / 20 / 40 GHz
- High-performance superheterodyne receiver with up to 14 preselection filters
- Phase noise at 1 GHz: <-110 dBc/Hz @ 10 kHz
- Real-time bandwidth: 50 MHz / 100 MHz (opt.)
- 14-bit ADC, SFDR >70 dB
- Built-in GNSS as standard, supporting GNSS-based frequency calibration
- Integrated Raspberry Pi 5 for standalone deployment
- Supports C/C++, C#, Python, MATLAB, Qt, LabVIEW, and GNU Radio
- Supports Windows and Linux operating systems

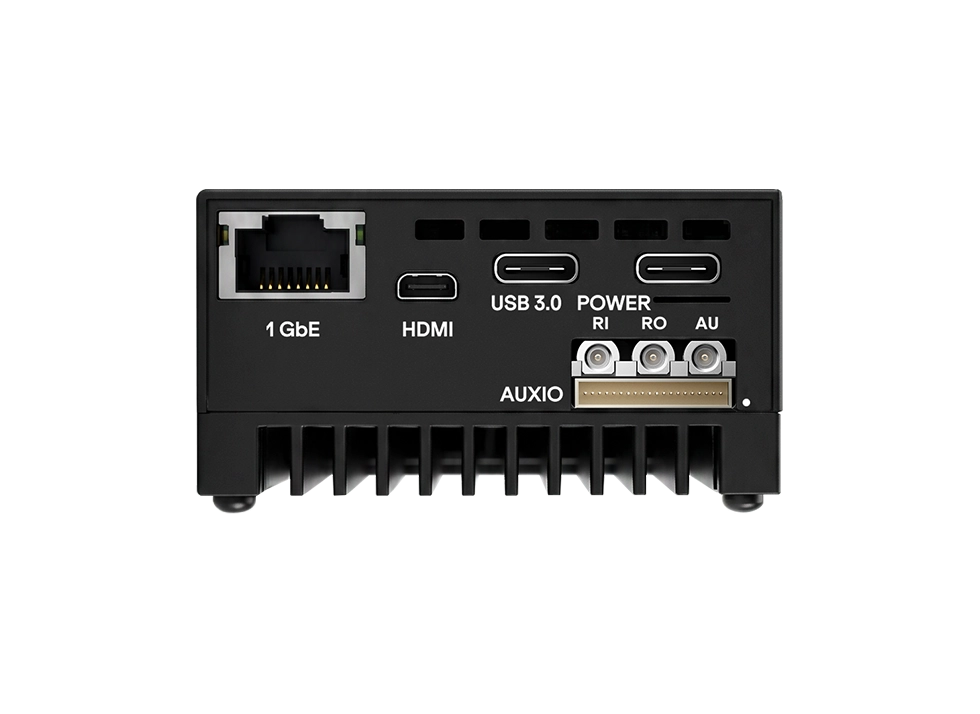

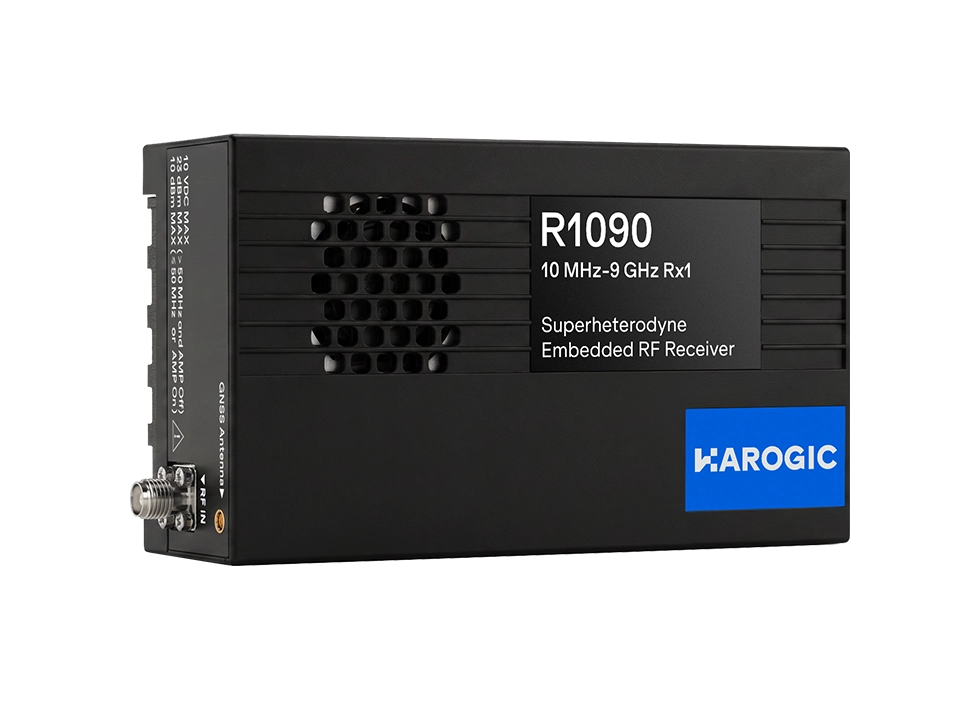

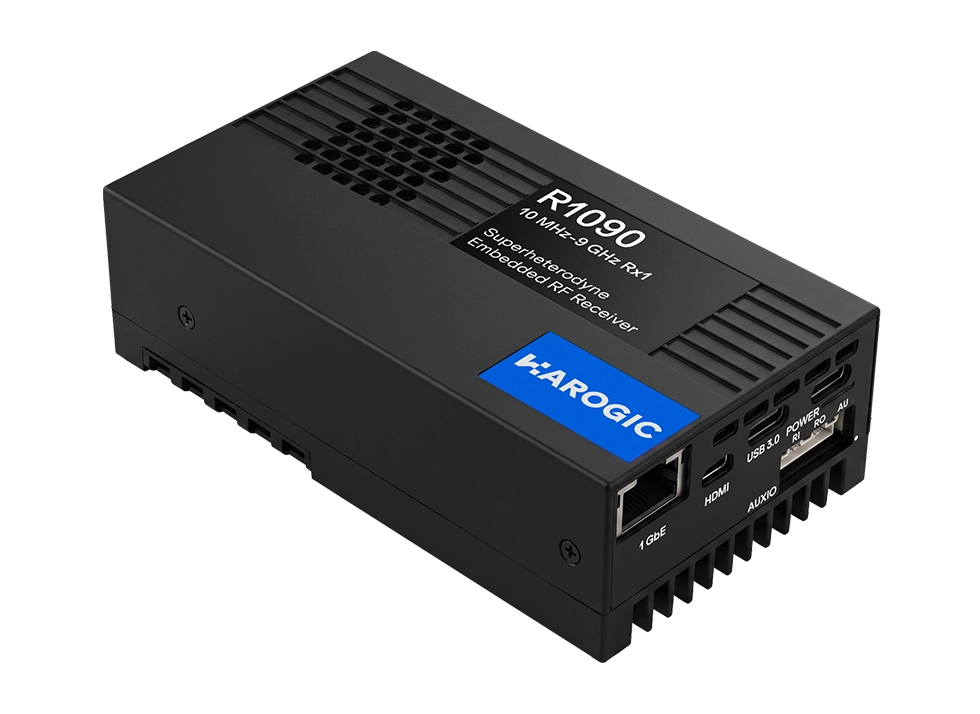

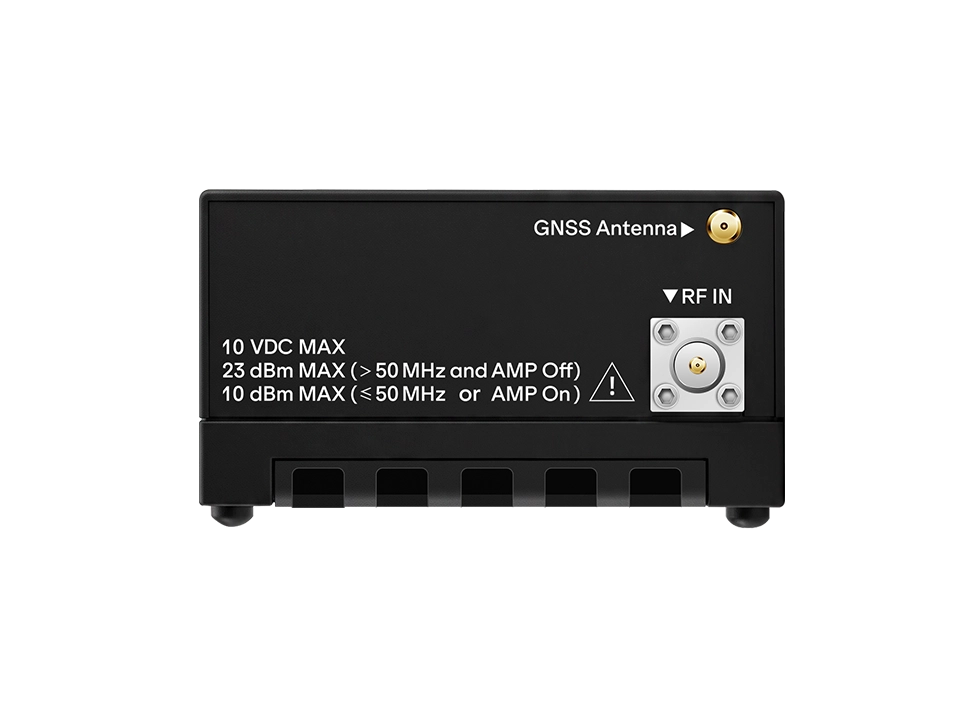

Available Models & Views
10 MHz – 6 GHz
10 MHz – 9 GHz
10 MHz – 20 GHz
10 MHz – 40 GHz
Technical Overview
The HAROGIC R1000 Series integrates a single-channel, high-performance superheterodyne RF receiver and Raspberry Pi 5 computing module into a compact, self-contained embedded platform. Covering 10 MHz to 6 / 9 / 20 / 40 GHz with up to 100 MHz real-time bandwidth, it can serve as a streaming IQ data source for external workstations or run autonomous RF signal acquisition, machine-learning classification, and threat mitigation locally at the edge.
Integrated Raspberry Pi 5 Edge Computing
Equipped with a quad-core 64-bit Arm Cortex processor and onboard Linux, run customized DSP algorithms, automated spectrum scanners, and alert daemons completely independently.
True Superheterodyne Front-End up to 40 GHz
High-performance RF architecture with switched preselection filters provides superior image suppression, low noise figures, and wide dynamic range across millimeter-wave frequencies.
Complete Multi-Platform SDK Ecosystem
Unified APIs for C++, Python, Qt, and official GNU Radio out-of-tree modules allow instant integration into SDR workflows and automated monitoring grids.
Power over Ethernet (PoE) Ready
Deployable across remote masts, distributed antenna towers, and secure perimeters with single-cable PoE connectivity (Option 24) and rugged aluminum thermal housing.
