SAN Series
Key Facts
- Frequency Range: 9 kHz to 4.5/6/8.5/40 GHz
- 1 GHz DANL: -158 dBm/Hz
- 1 GHz Phase Noise: -107.5 dBc/Hz@10 kHz
- Analysis Bandwidth: 6.25/25/100 MHz
- USB3.0/2.0 Type C Interface
- Highly Compatible API Interface
- ARM and X86 Processor are supported
- Linux and Windows operating systems are supported
Available Models
SAN-45
9 kHz – 4.5 GHz
9 kHz – 4.5 GHz

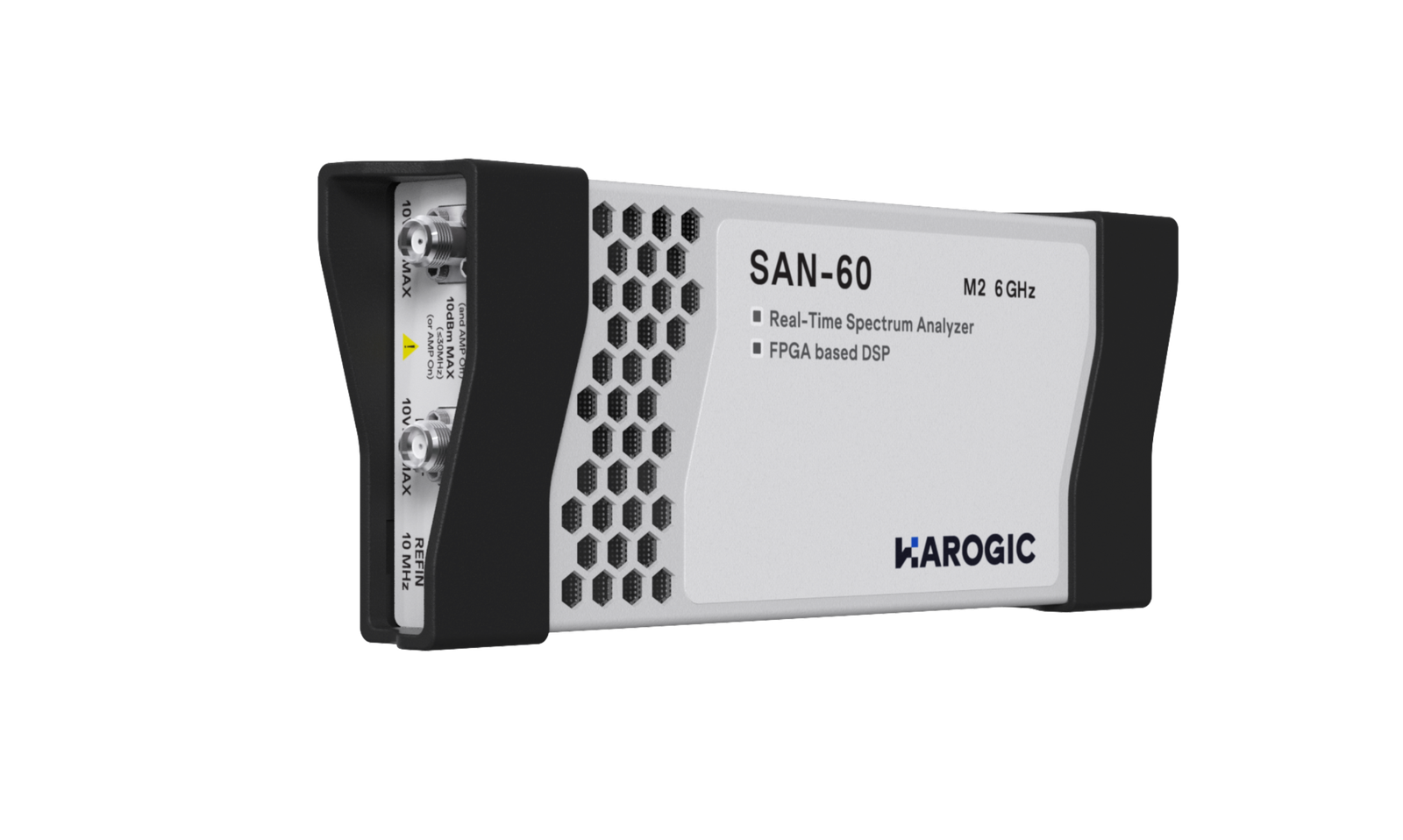

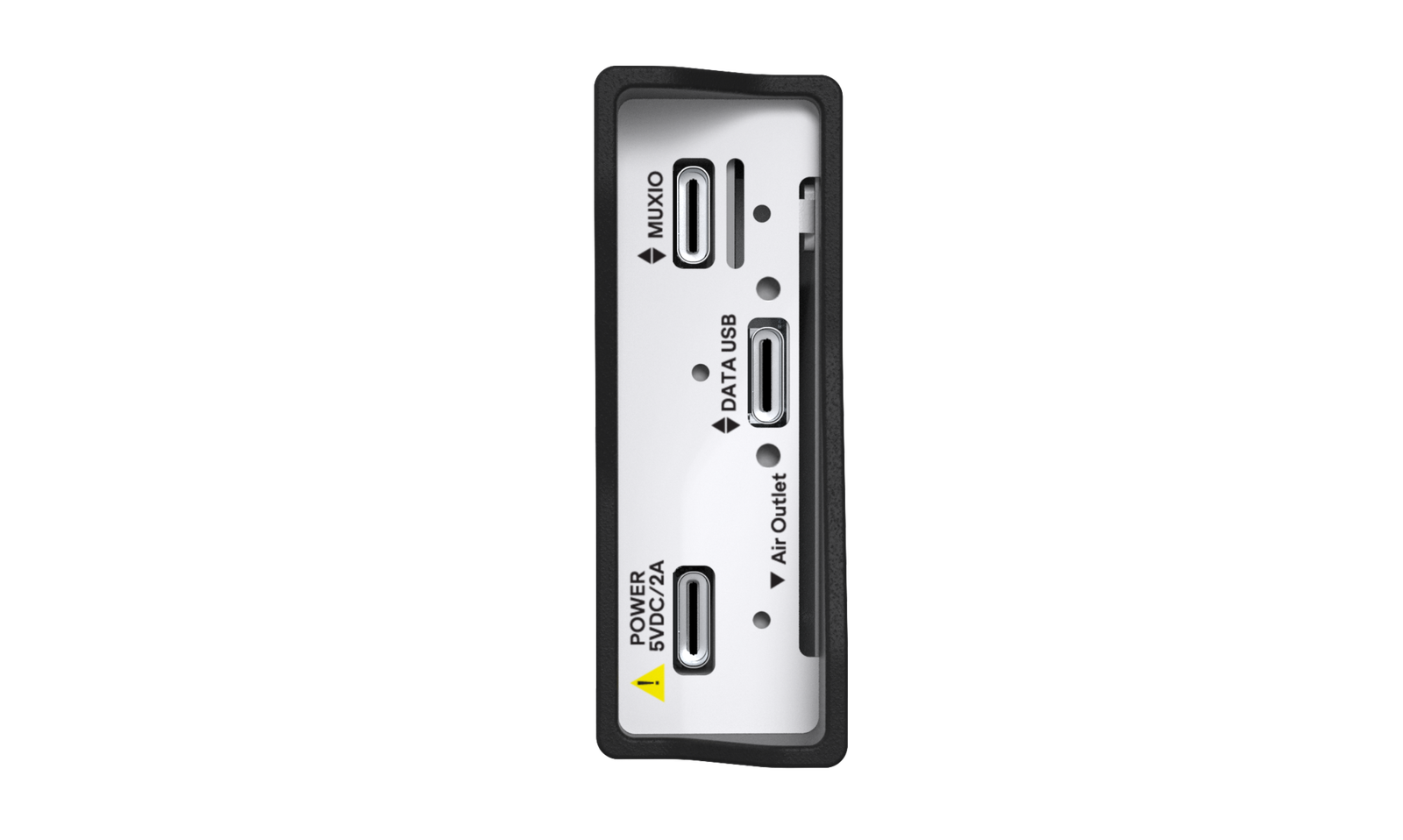

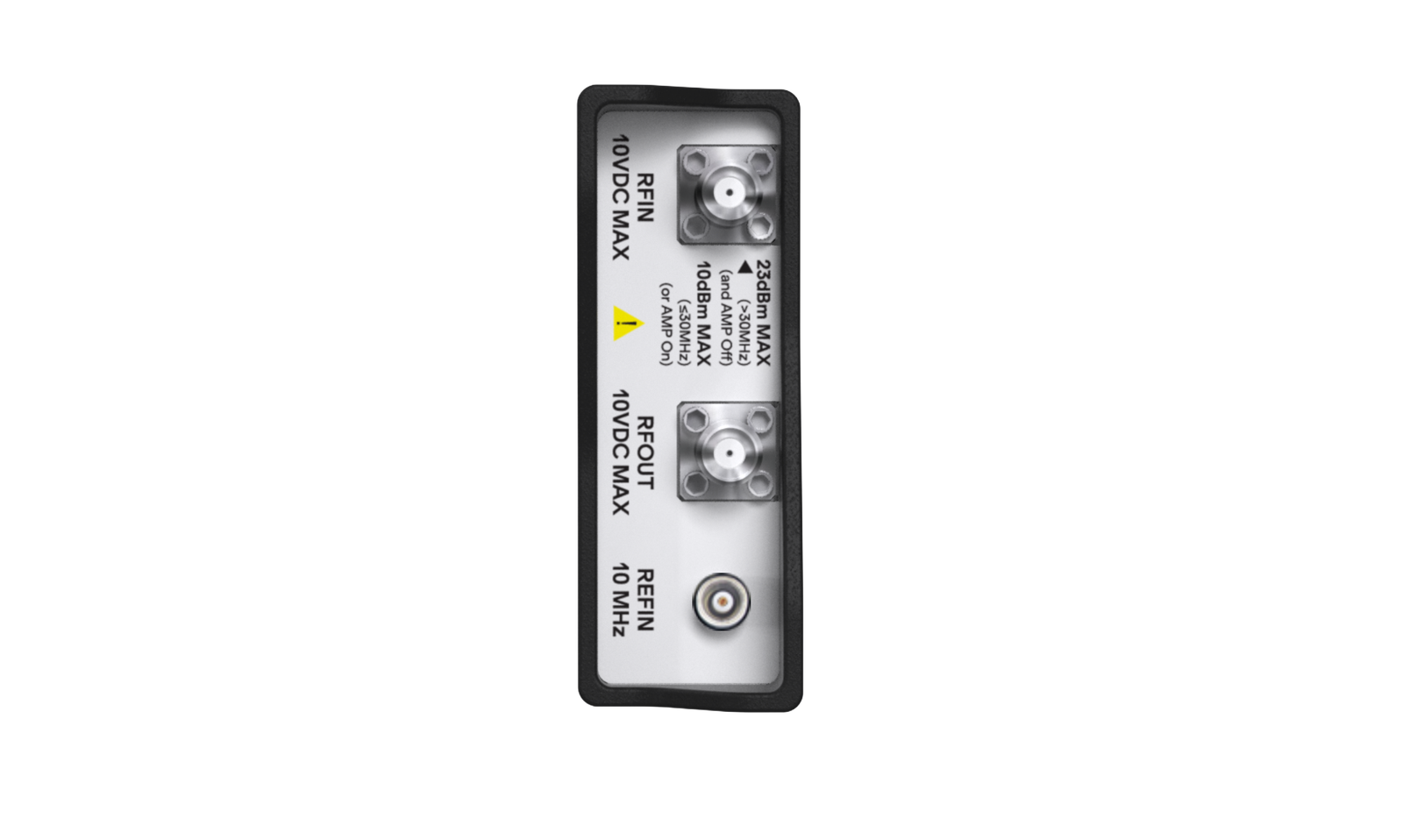

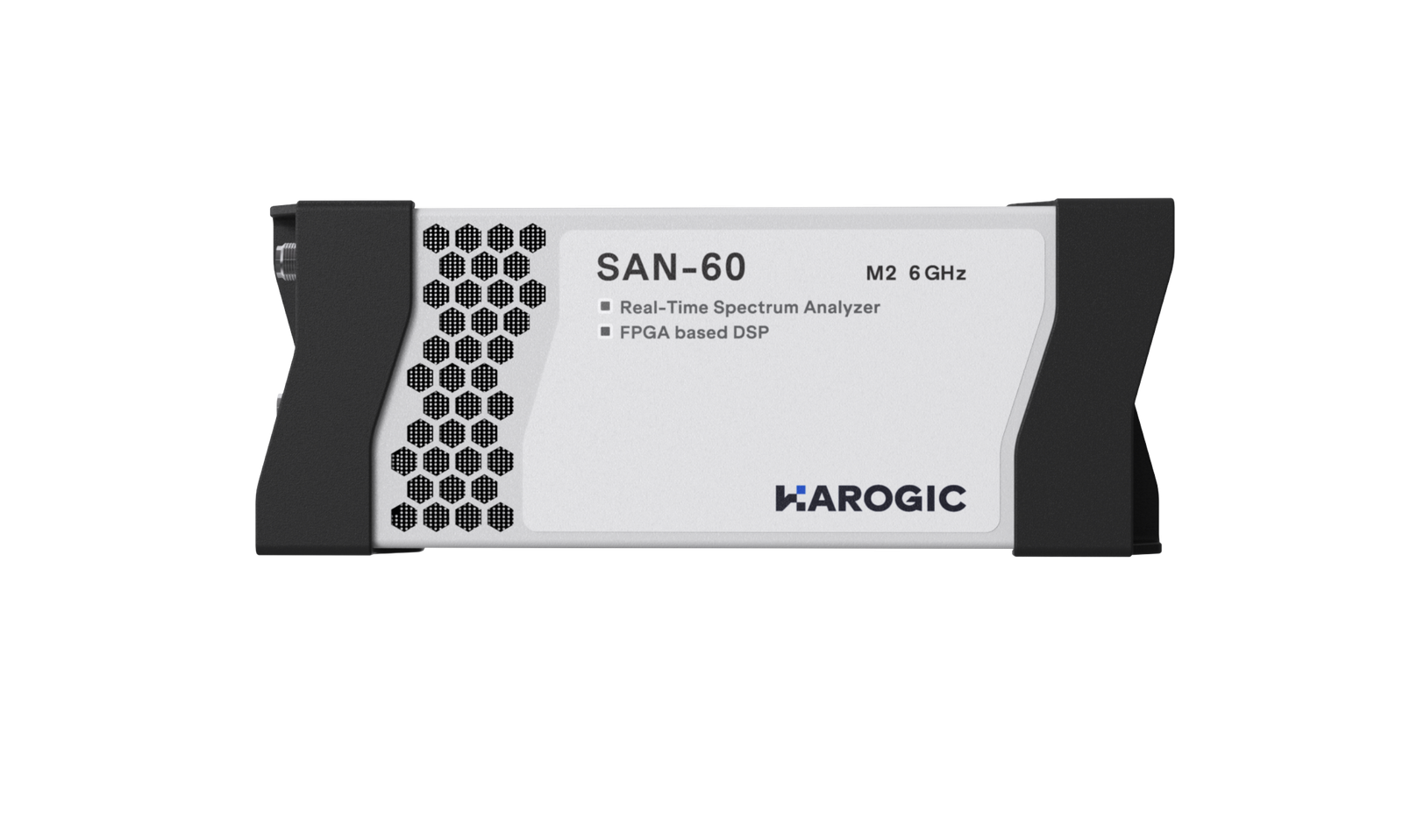

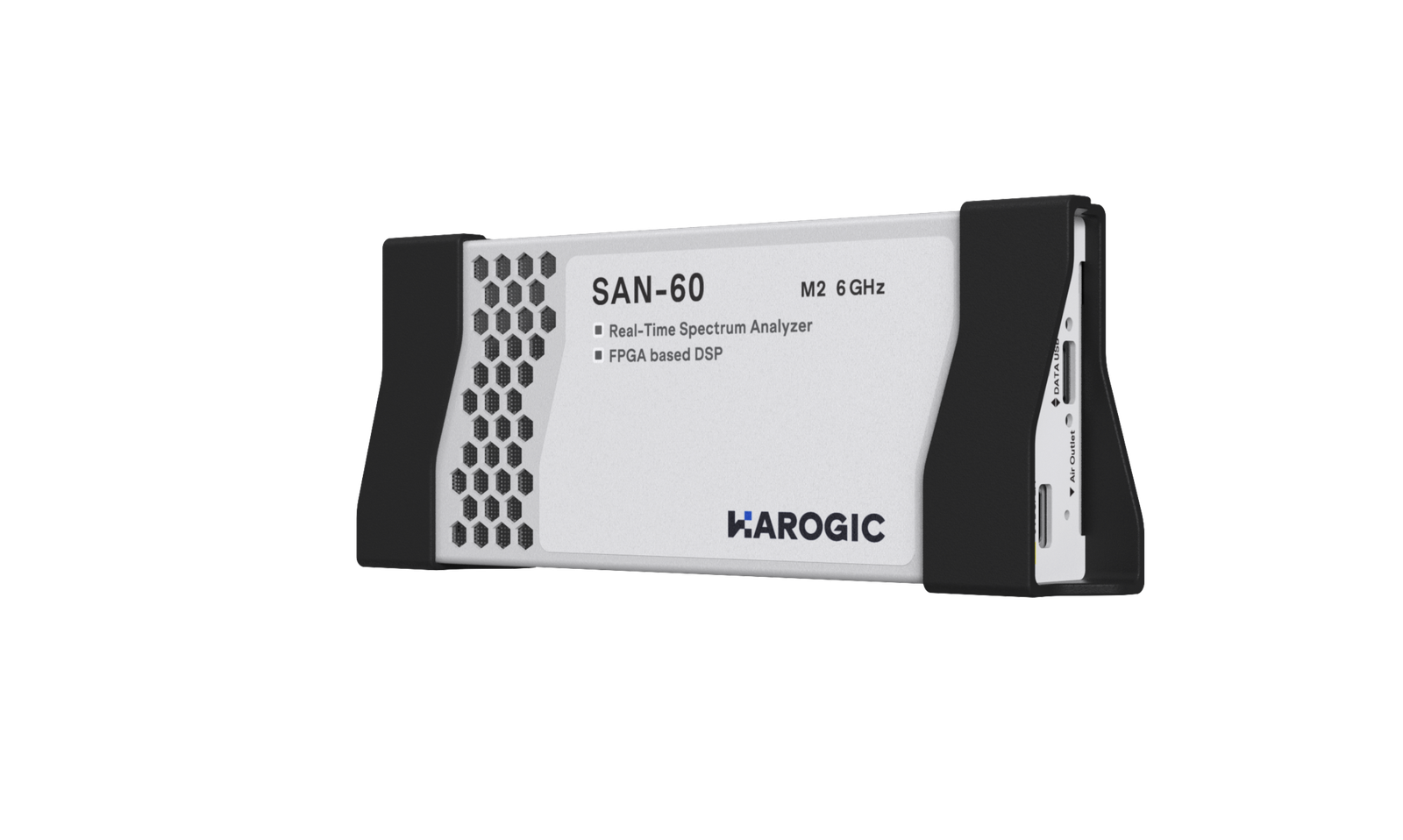

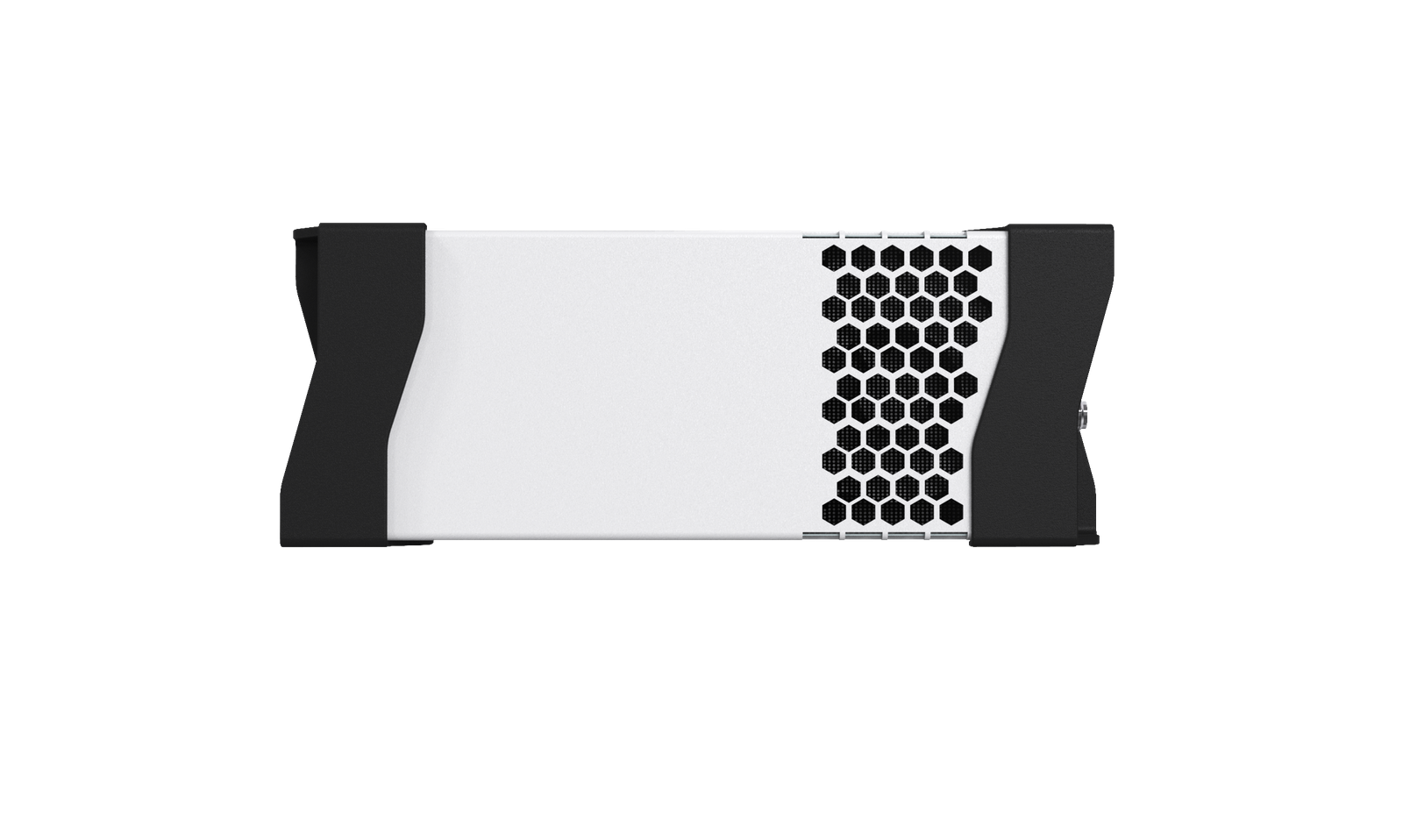

SAN-60
9 kHz – 6 GHz
9 kHz – 6 GHz

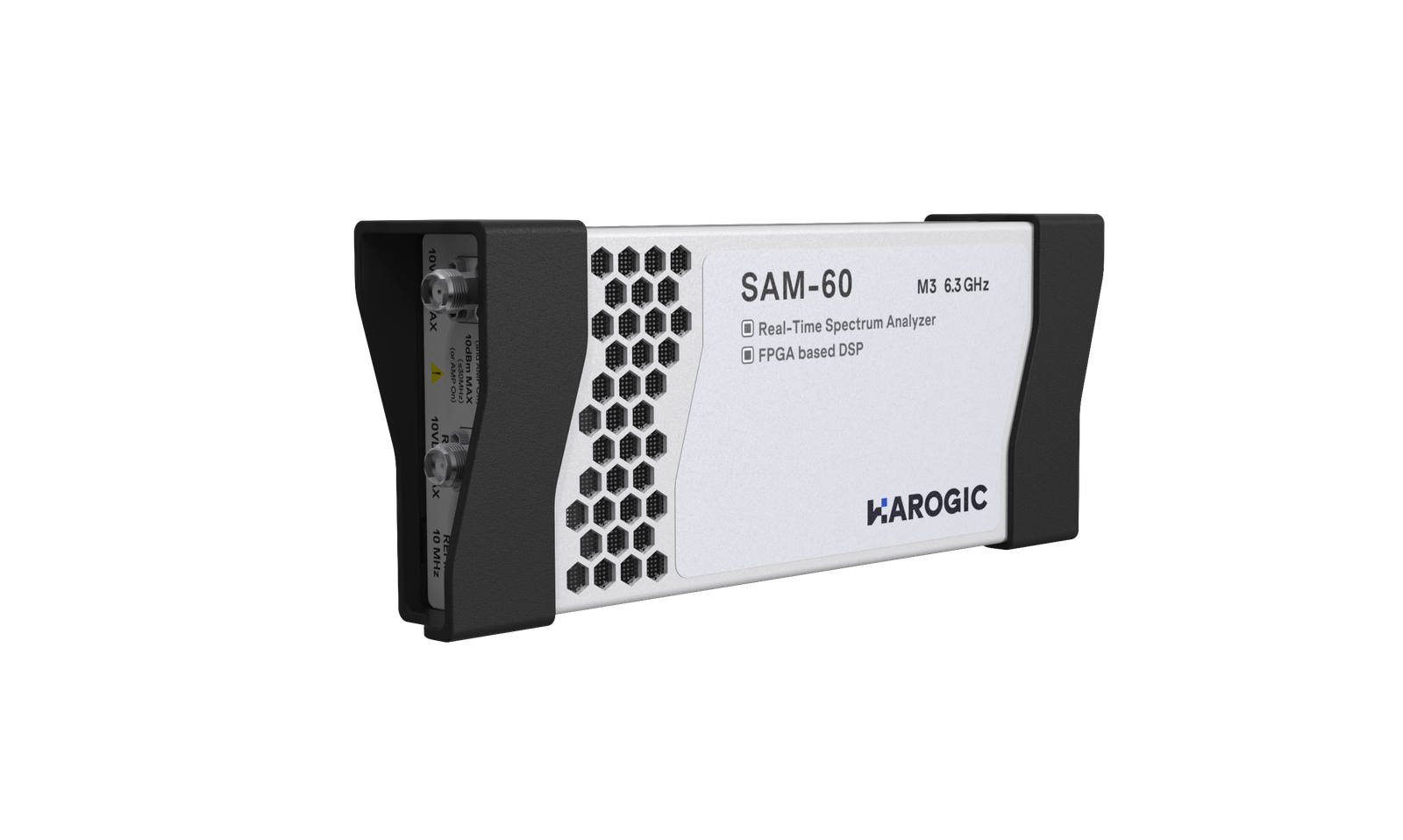

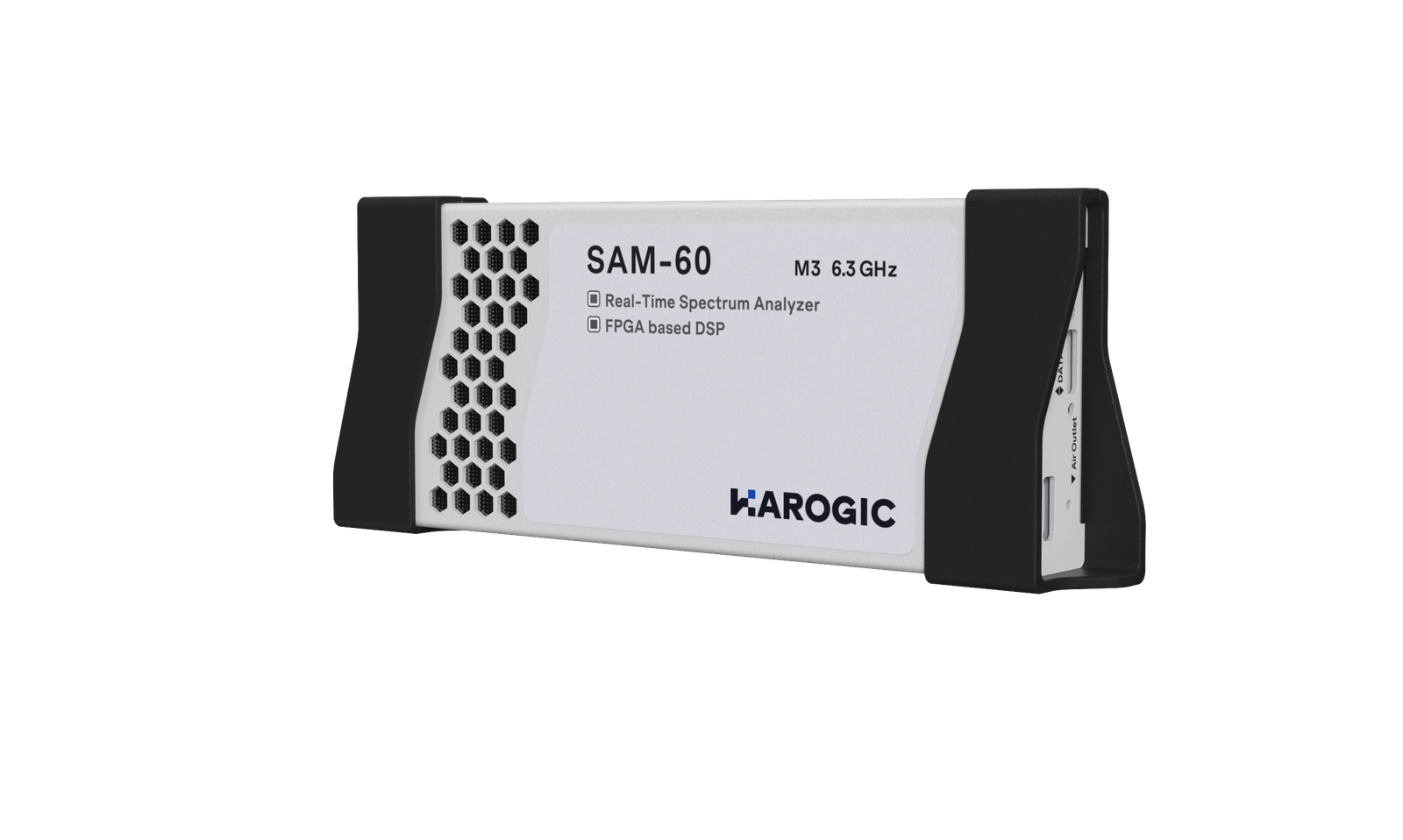

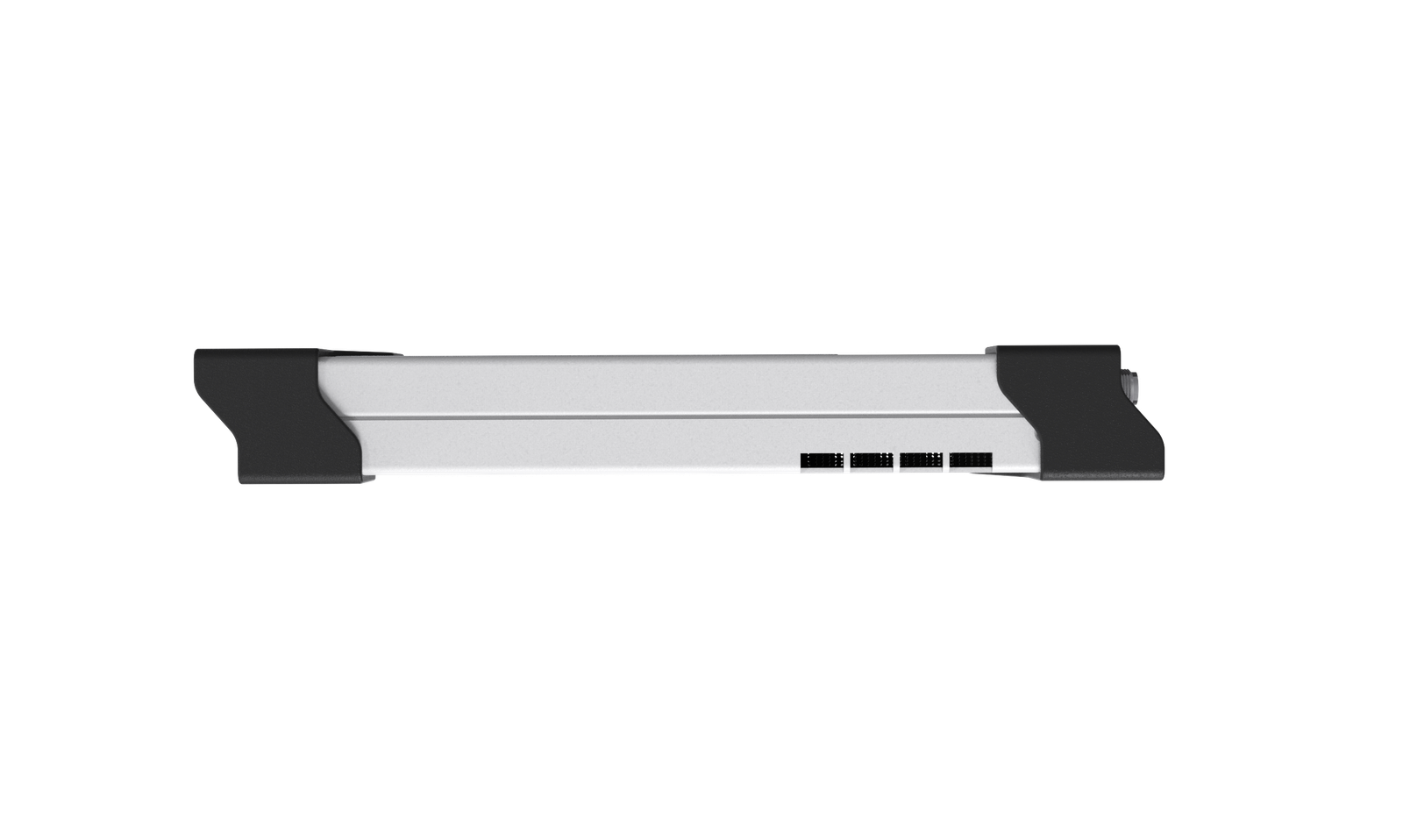

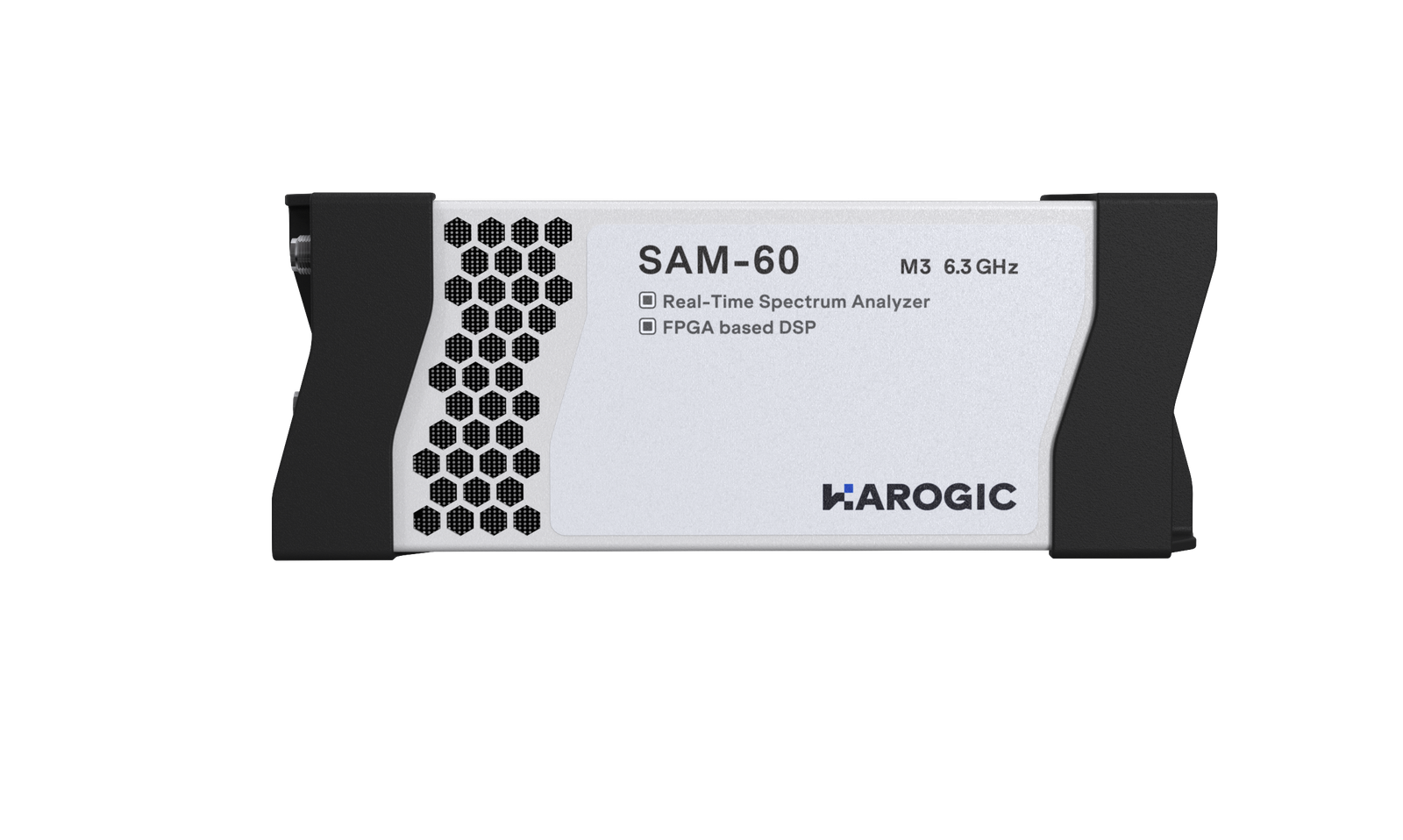

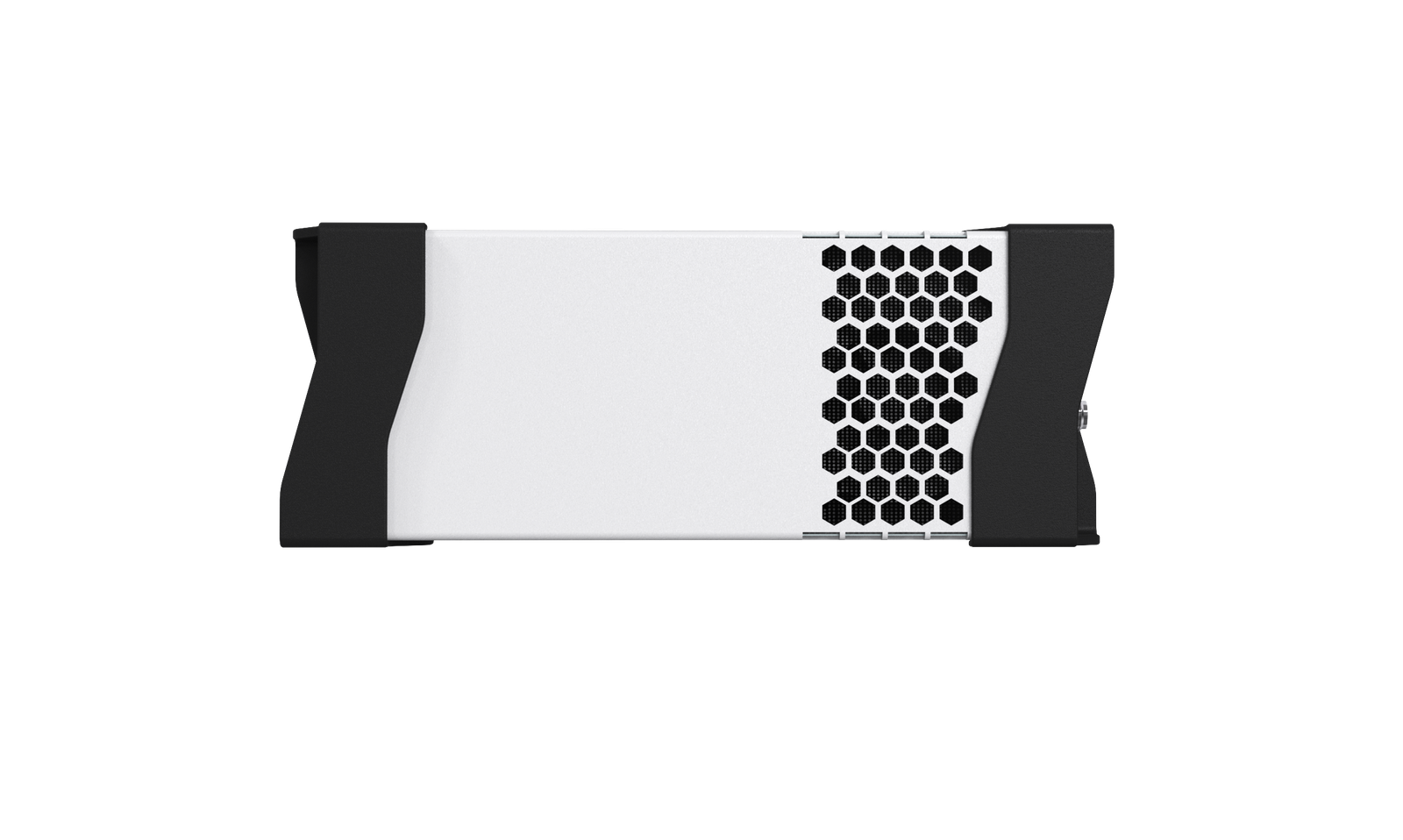

SAM-60 M3
9 kHz – 6 GHz
9 kHz – 6 GHz
SAM-80
9 kHz – 8.5 GHz
9 kHz – 8.5 GHz

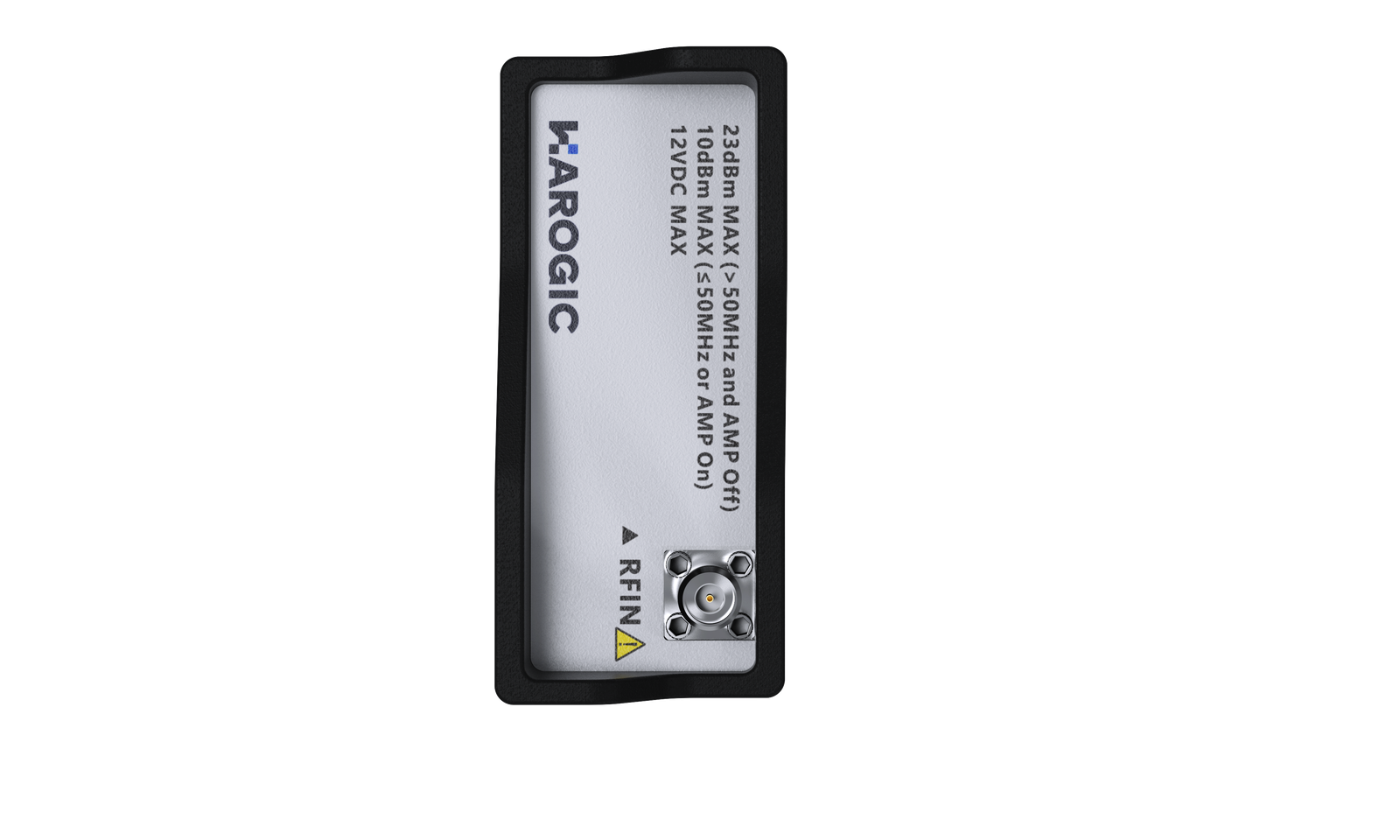

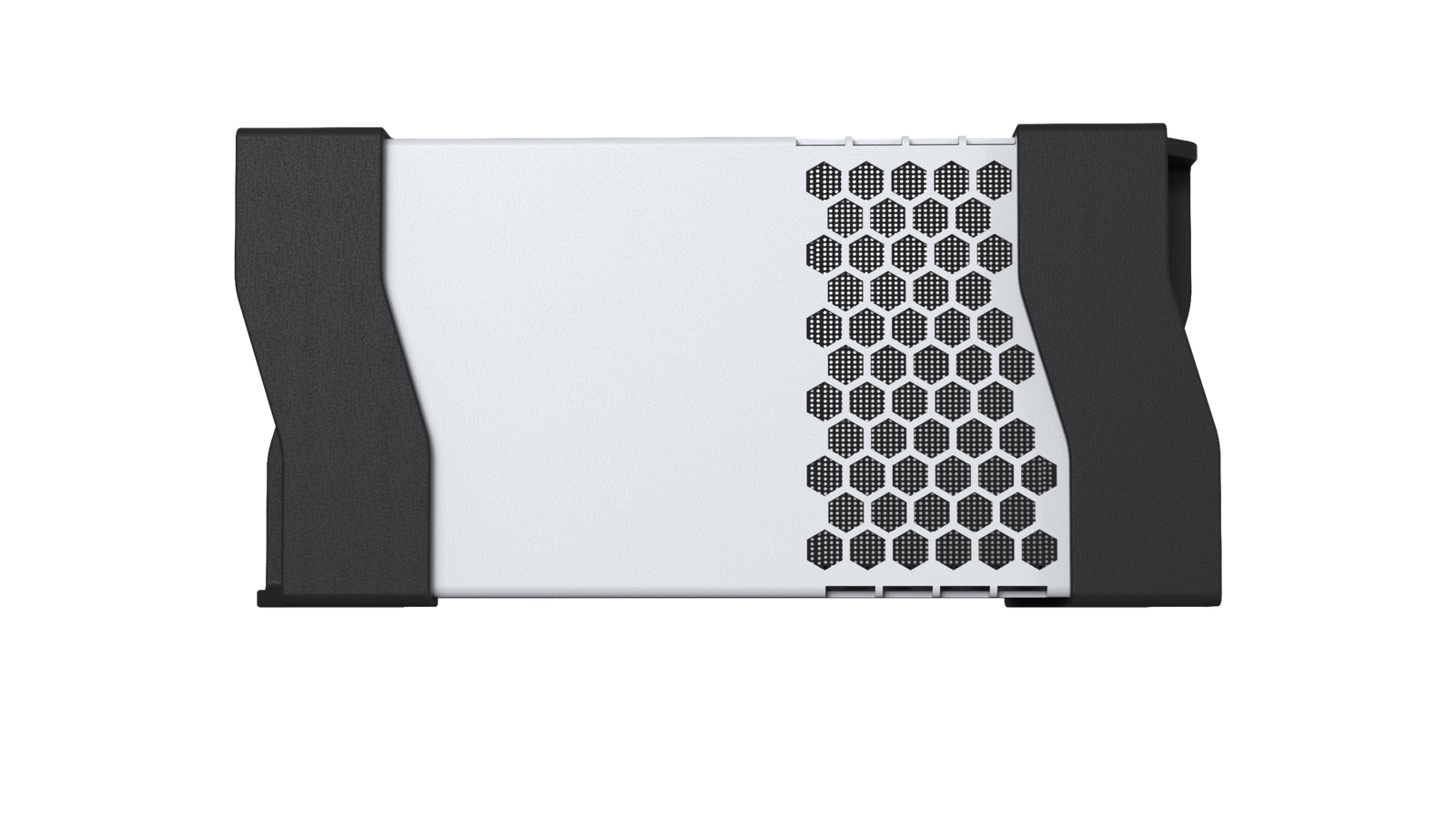

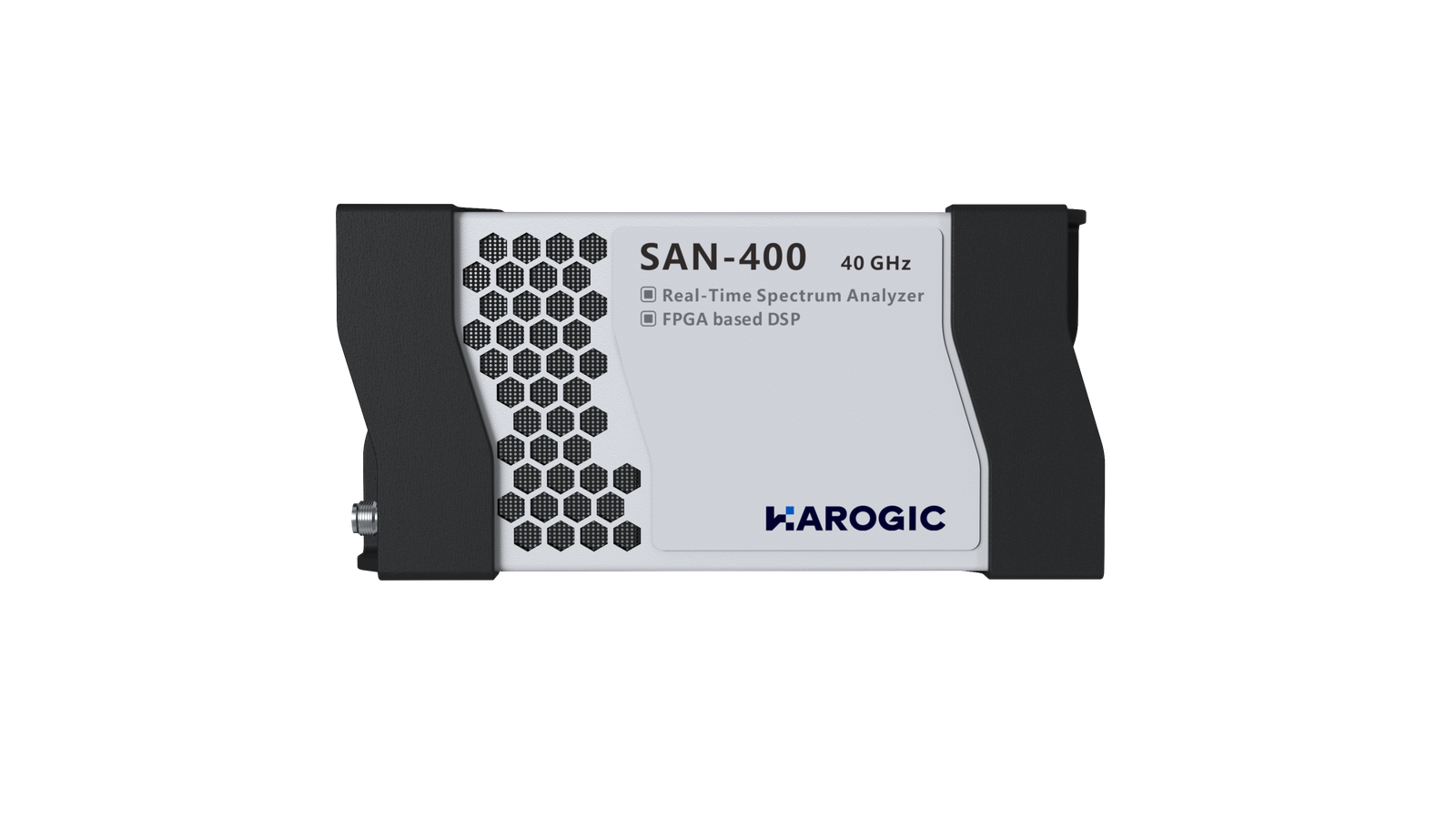

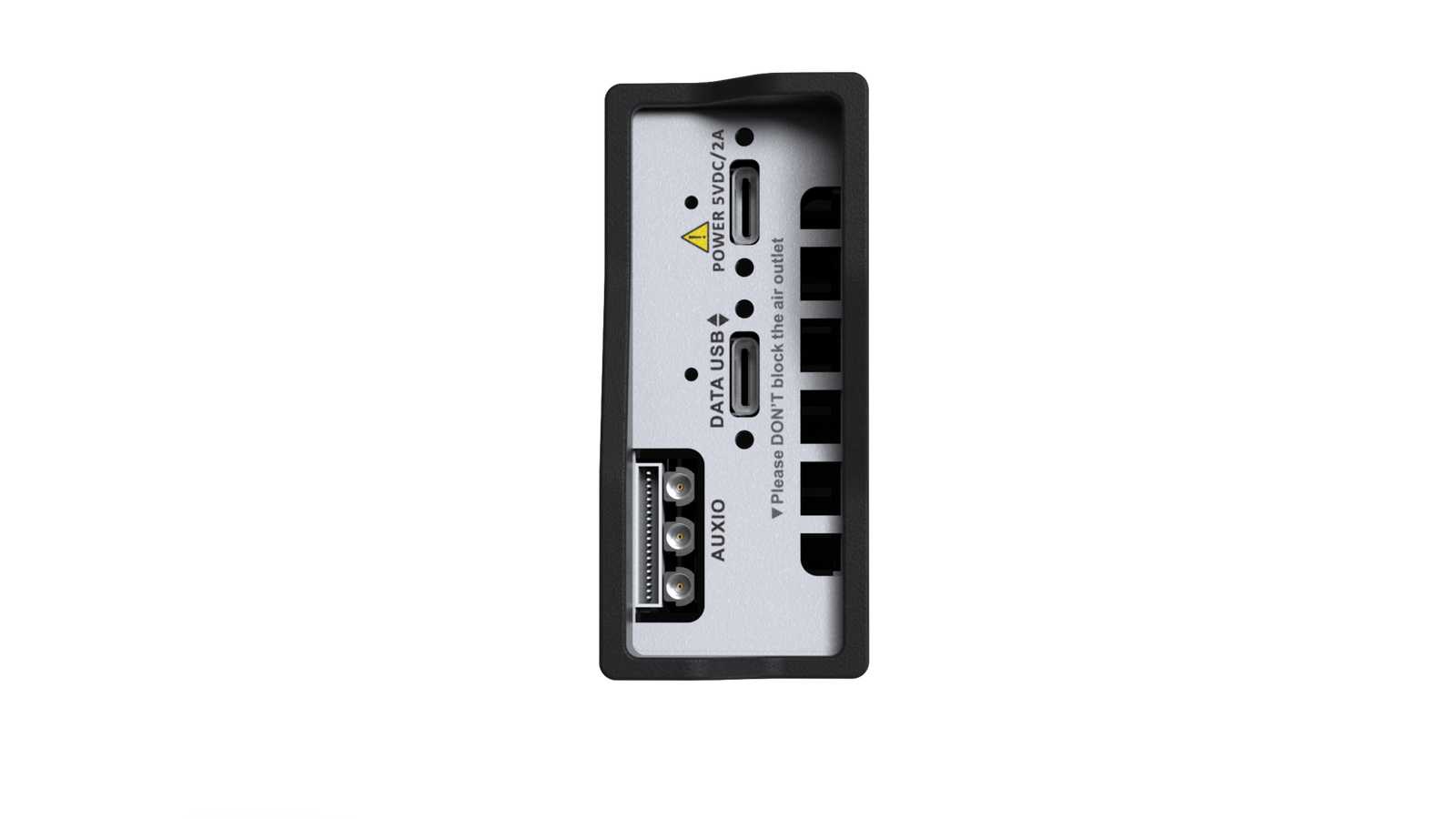

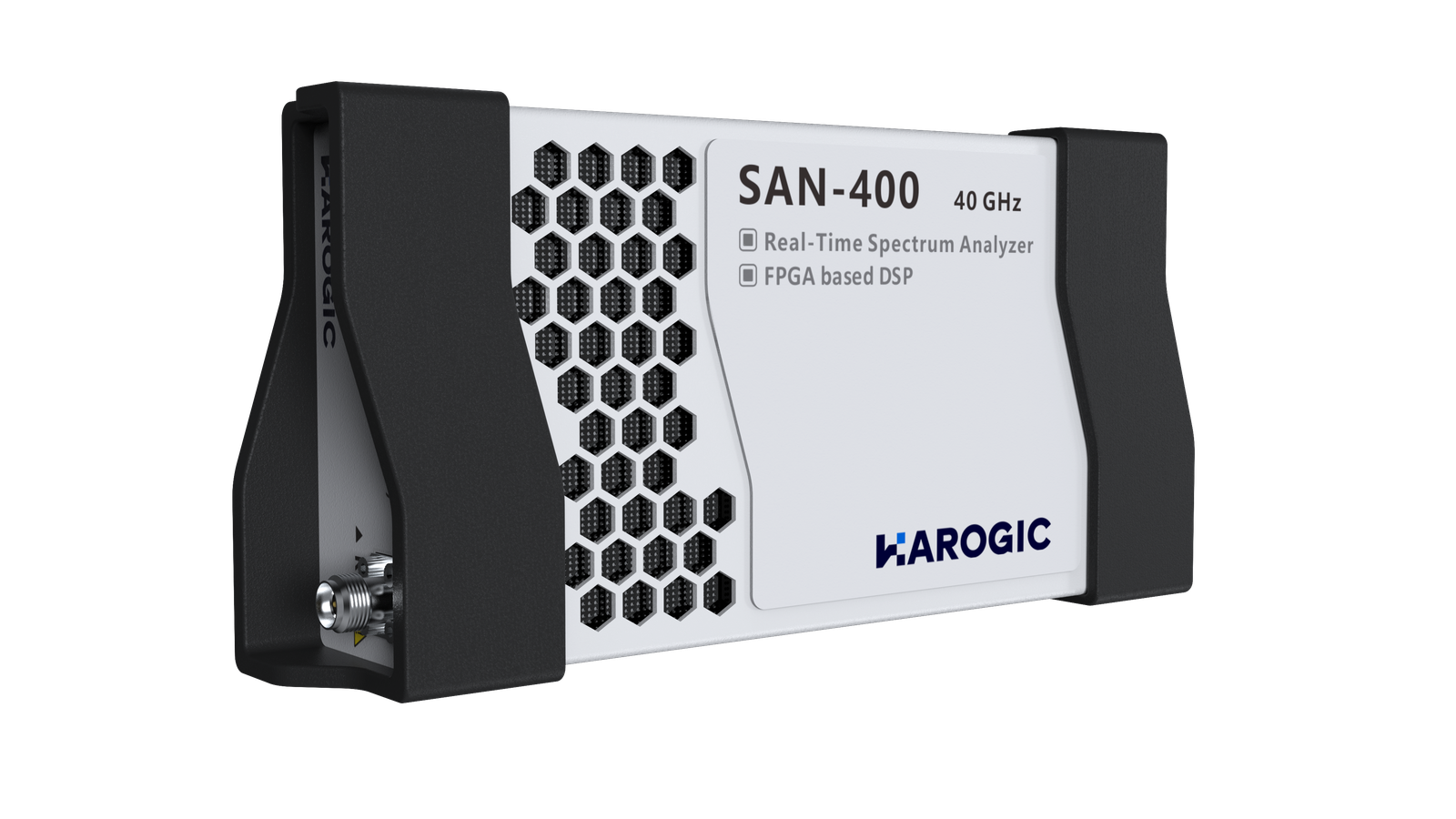

SAN-400
9 kHz – 40 GHz
9 kHz – 40 GHz
Available Models Comparison
SAN SERIES
Model
Product Manual
Frequency
Phase Noise 1 GHz,
10 kHz offset
10 kHz offset
DANL 1 GHz,
Amp On
Amp On
Analysis Bandwidth
Sweep Speed
RBW=250 kHz
RBW=250 kHz
Options
Code
Option
Description
01
Built-in OCXO Reference Clock
Built-in Hardware
02
Built-in Signal Generator
Built-in Hardware
05
Internal high precision GNSS
Built-in Hardware
06
Build-in GNSS disciplined reference clock
Built-in Hardware
20
MUXIO IO Board
Accessory
21
External GNSS
Accessory
22
External High Precision GNSS
Accessory
23
External GNSS Disciplined OCXO Reference Clock
Accessory
34
External omnidirectional antenna, 400MHz to 8000MHz,
Gain<2dBi
Accessory
35
External active directional antenna, frequency range: 0.5
to 10 GHz
Gain: < 5 dBi (amp off); < 25 dBi(amp on)
Gain: < 5 dBi (amp off); < 25 dBi(amp on)
Accessory
40
T1 Temperature Class
Built-in Hardware
41
T2 Temperature Class, Only Available for Core
Built-in Hardware
71
Basic Digital Modulation Analysis
Software
72
Pulse detection
Software
