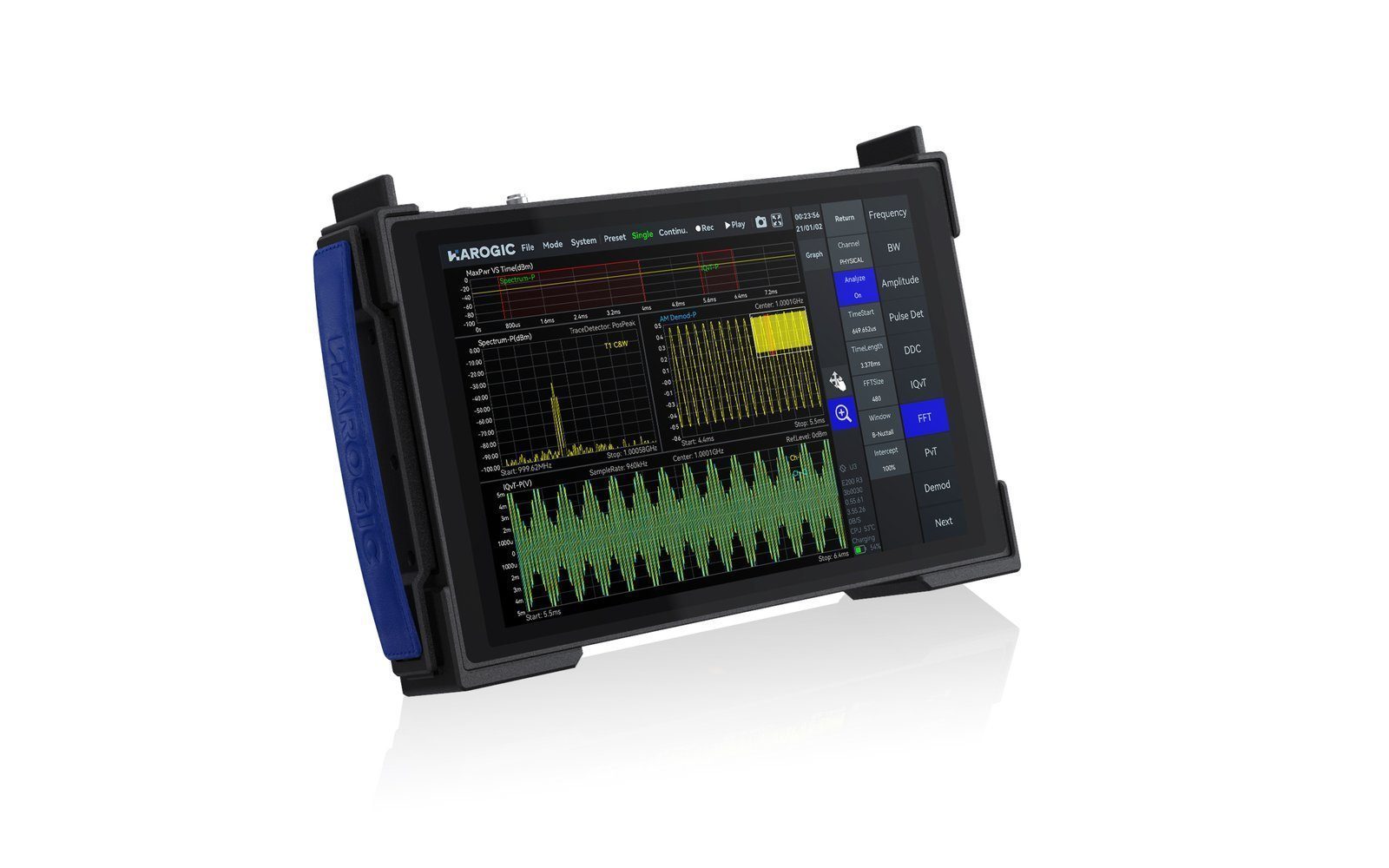

PX Series Geek
Key Facts
- Windows11 operating system
- 1.19 kg lightweight, 8.8-inch multi touchscreen
- Frequency range: 9 kHz to 9.5/20/40 GHz
- 1 GHz DANL: -159.9 dBm/Hz
- 1 GHz phase noise: -100 dBc/Hz@10 kHz
- Analysis Bandwidth: Up to 100 MHz
- CPU: AMD Z1 Extreme
- 16 GB RAM and 512 GB SSD
Available Models

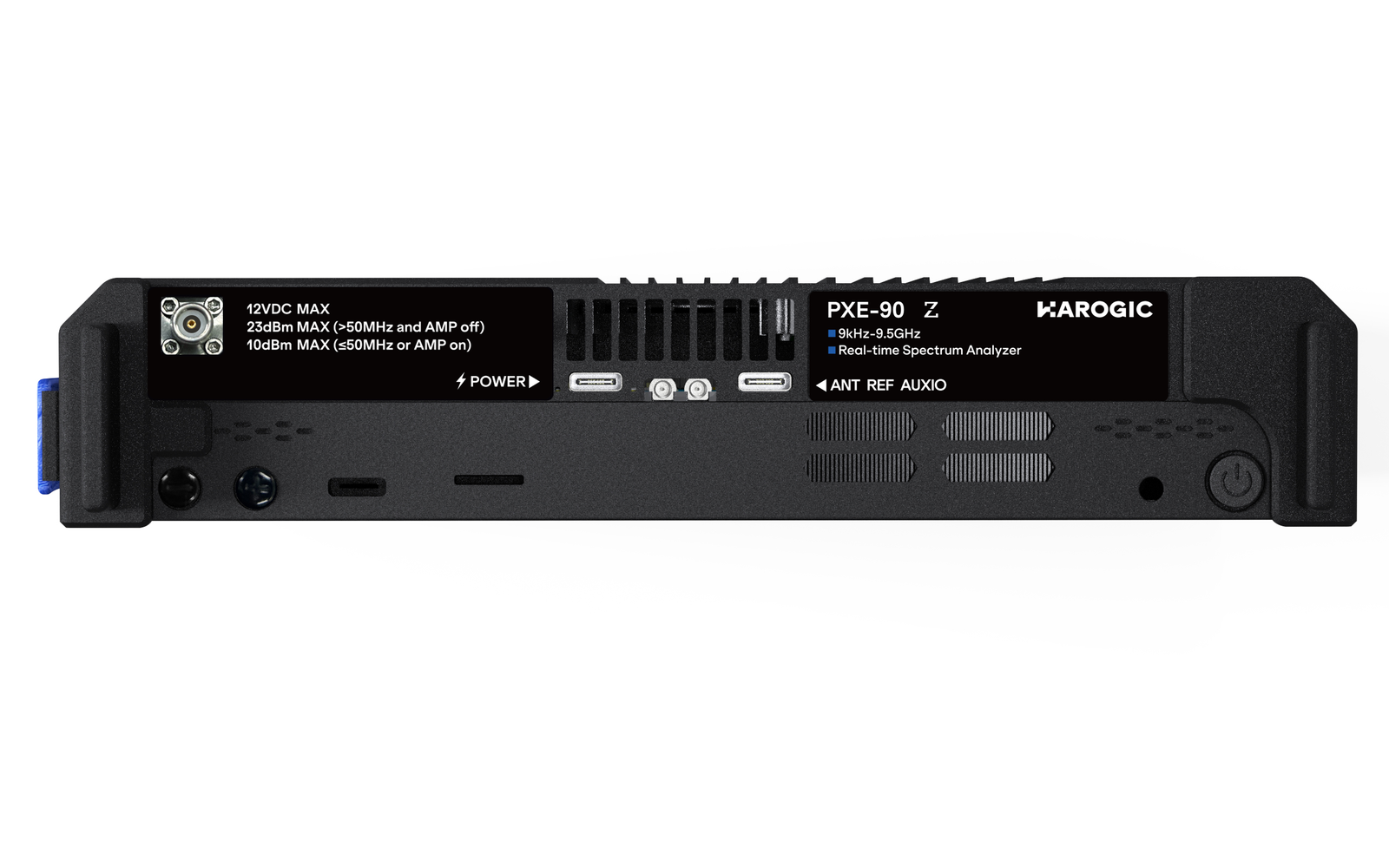

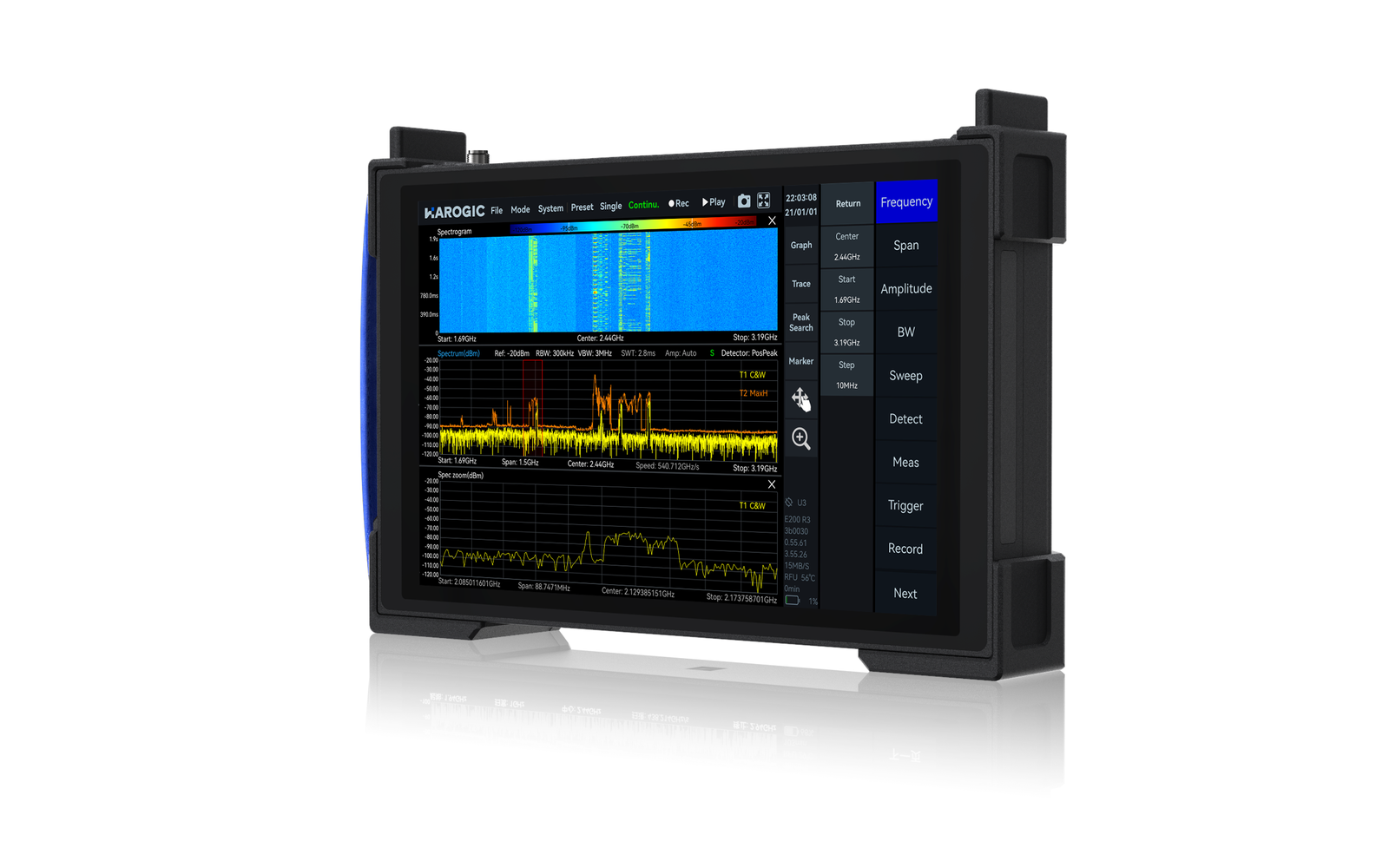

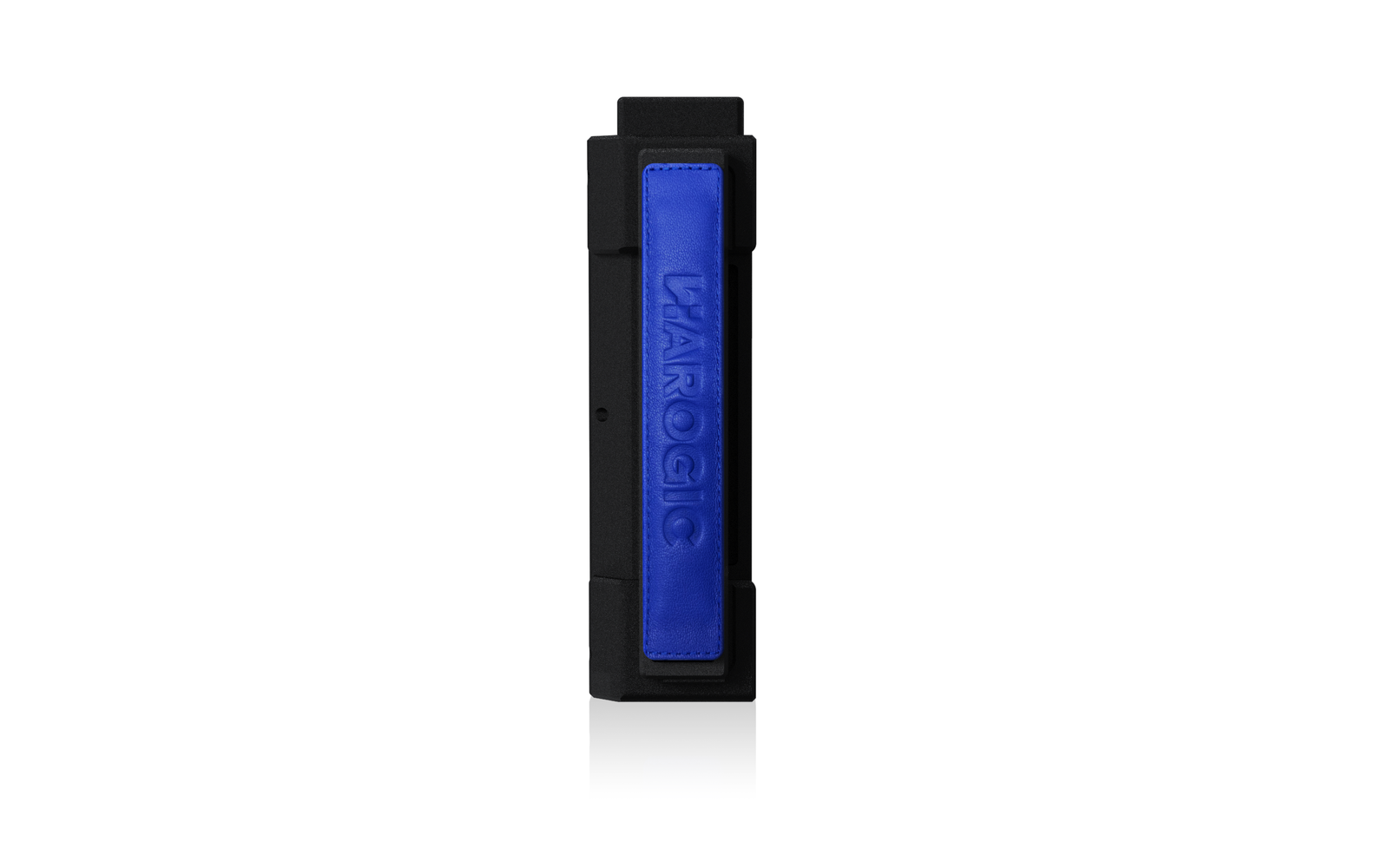

PXE-90Z
9 kHz – 9.5 GHz
9 kHz – 9.5 GHz

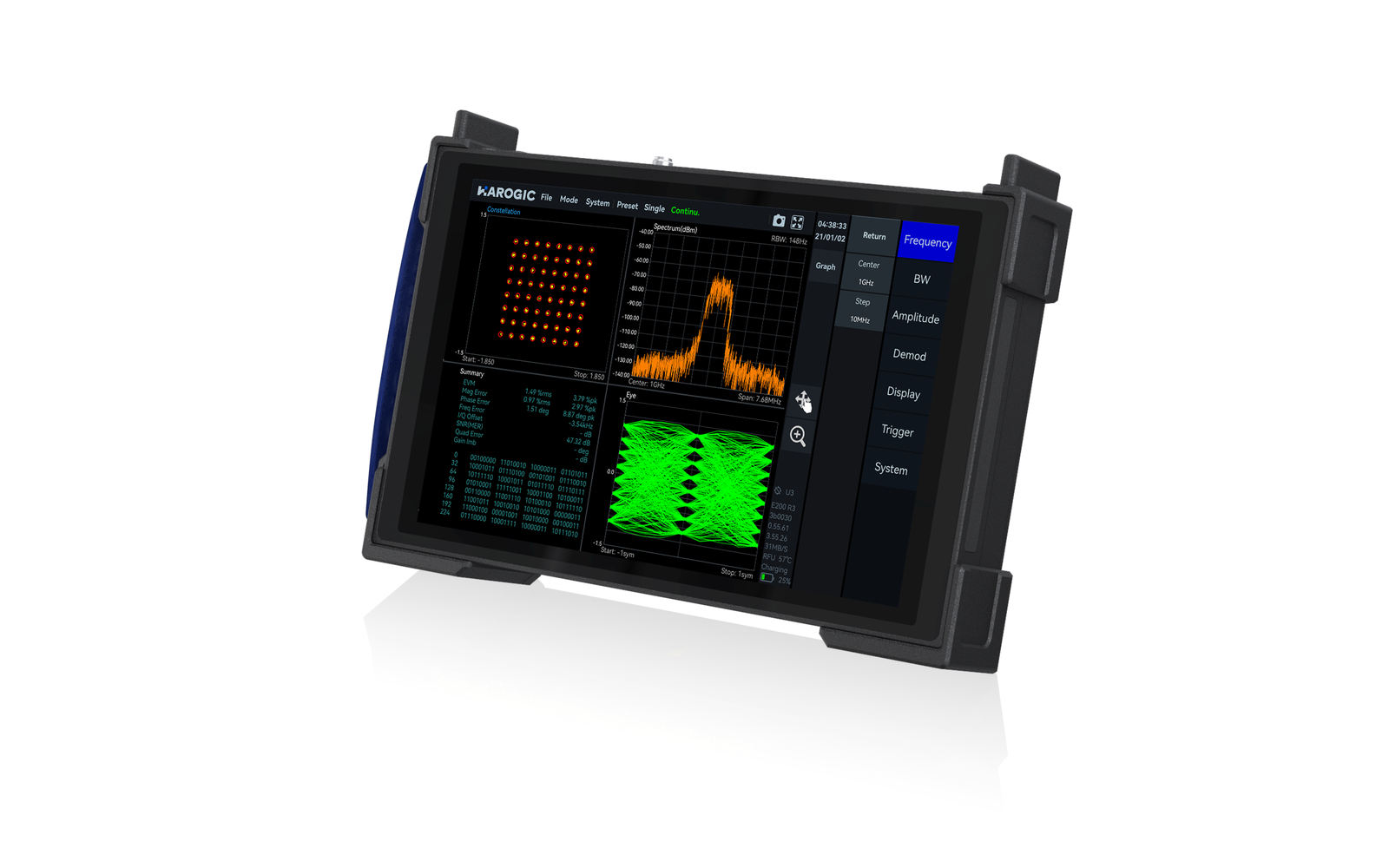

PXE-200Z
9 kHz – 20 GHz
9 kHz – 20 GHz

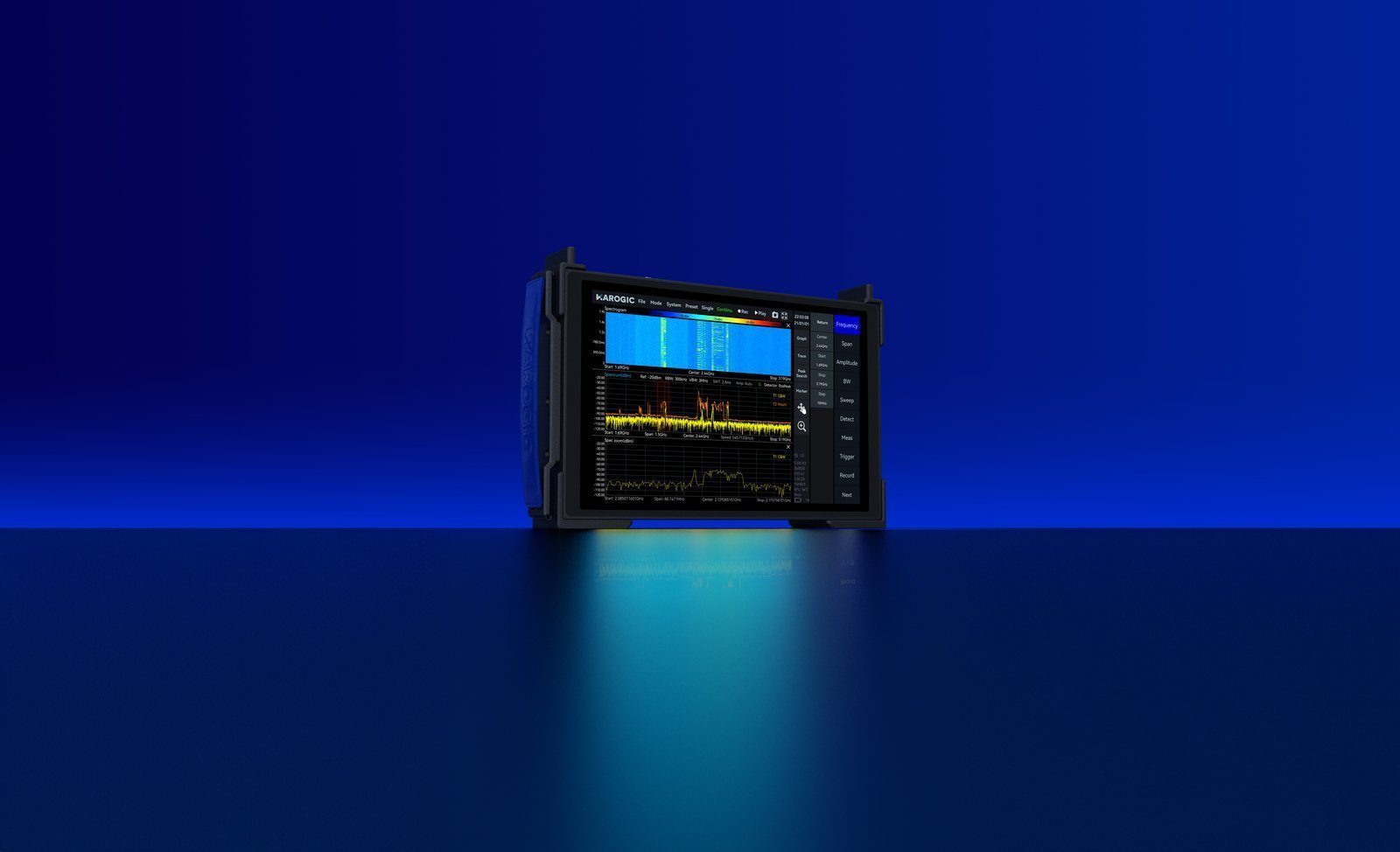

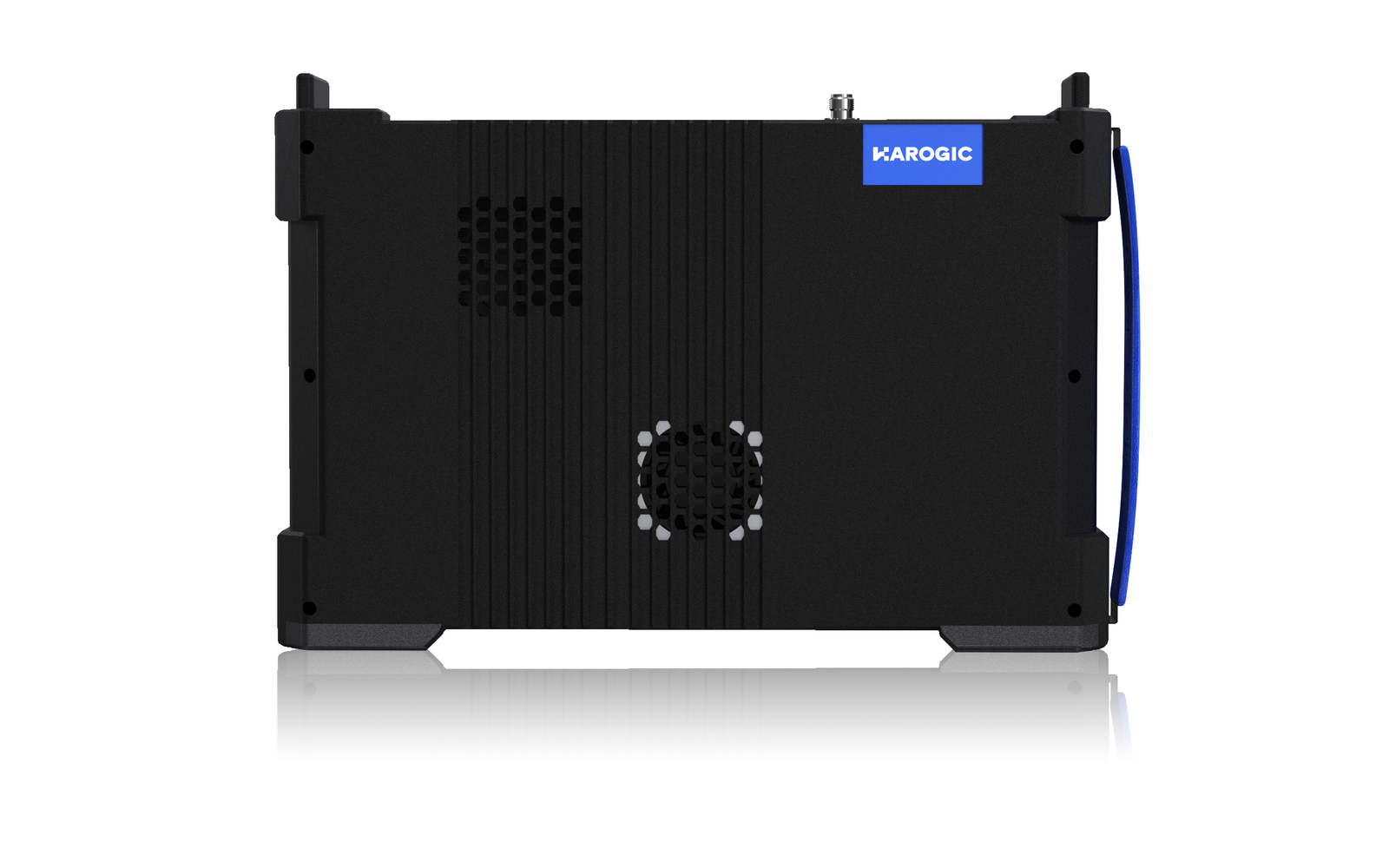

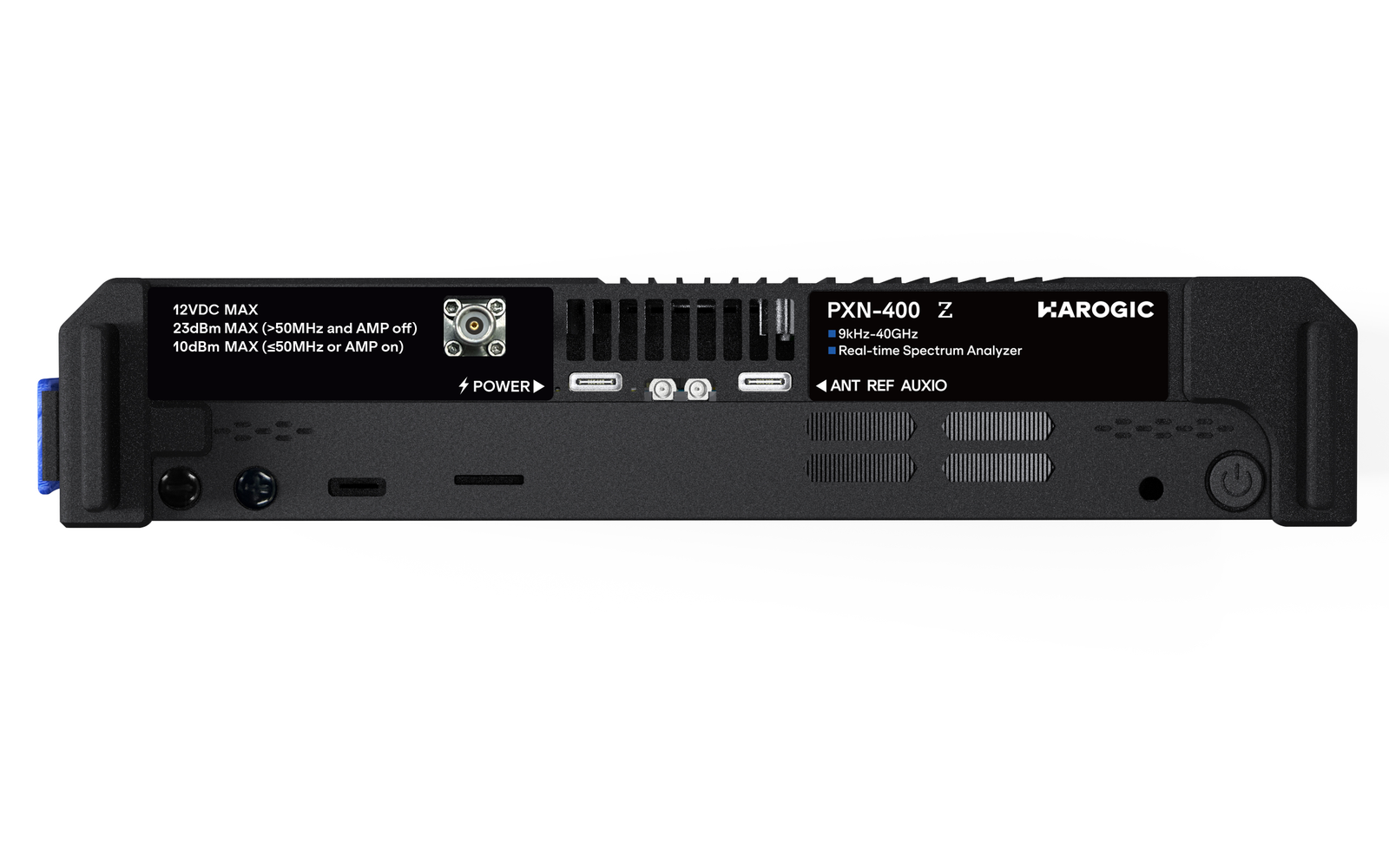

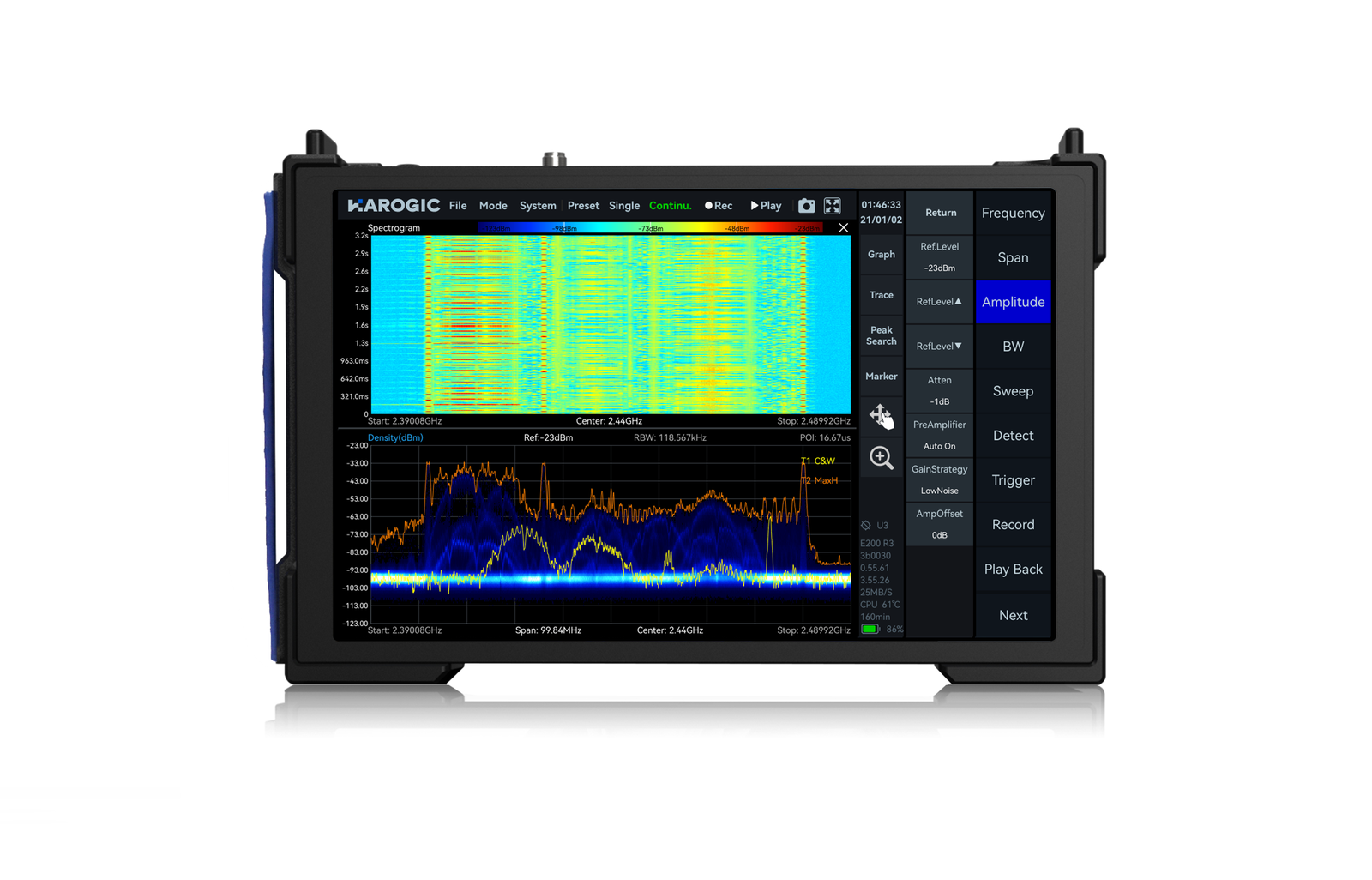

PXN-400Z
9 kHz – 40 GHz
9 kHz – 40 GHz
Available Models Comparison
Options
Code
Option
Description
01
Built-in OCXO reference clock
built-in hardware
34
External omnidirectional antenna, 400-8000MHz,
Gain<2dBi
Accessory
35
External active directional antenna, 0.5-10 GHz
Gain<5dBi(AMP OFF), Gain<25dBi (AMP ON)
Gain<5dBi(AMP OFF), Gain<25dBi (AMP ON)
Accessory
71
Basic digital modulation analysis
Software
72
Pulse signal measurement
Software
