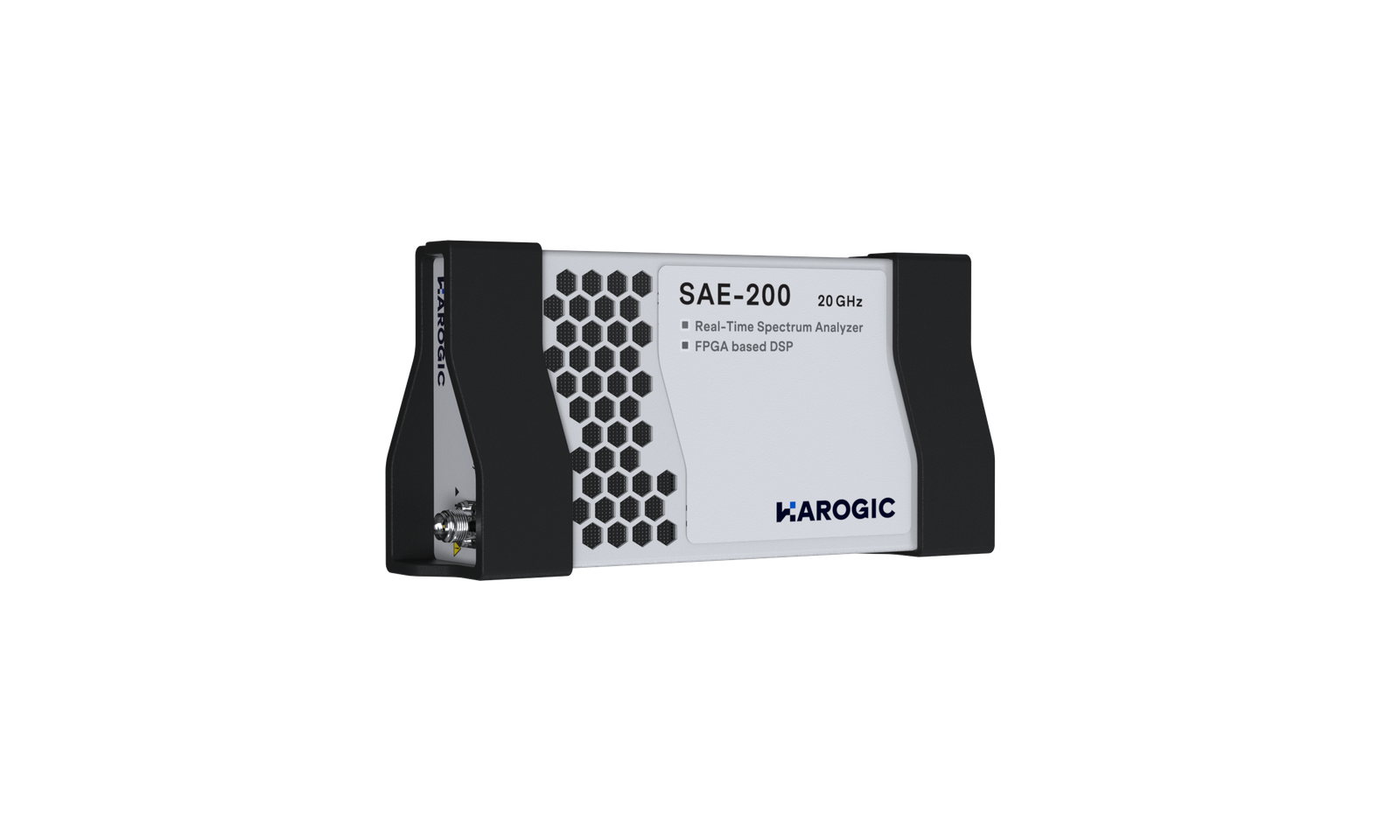

SA Series
Key Facts
- Frequency Range: 9 kHz to 9.5/20 GHz
- 1 GHz DANL: -166.3 dBm/Hz
- 1 GHz Phase Noise: -100 dBc/Hz@10 kHz
- Analysis Bandwidth: Up to 100 MHz
- USB3.0/2.0 Type C Interface
- Highly Compatible API Interface
- ARM and X86 Processor are supported
- Linux and Windows operating systems are supported
Available Models

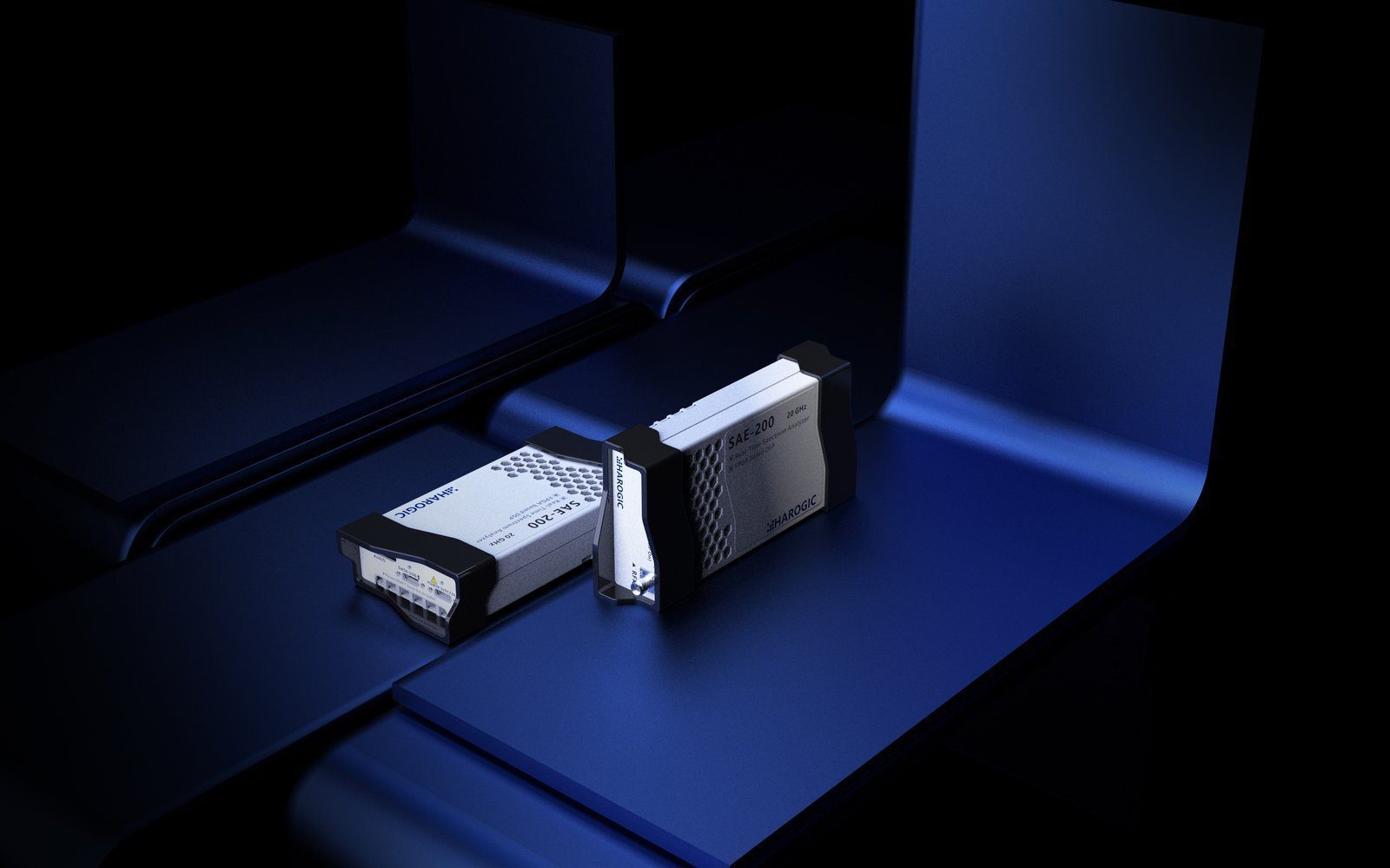

SAE-90
9 kHz – 9.5 GHz
9 kHz – 9.5 GHz

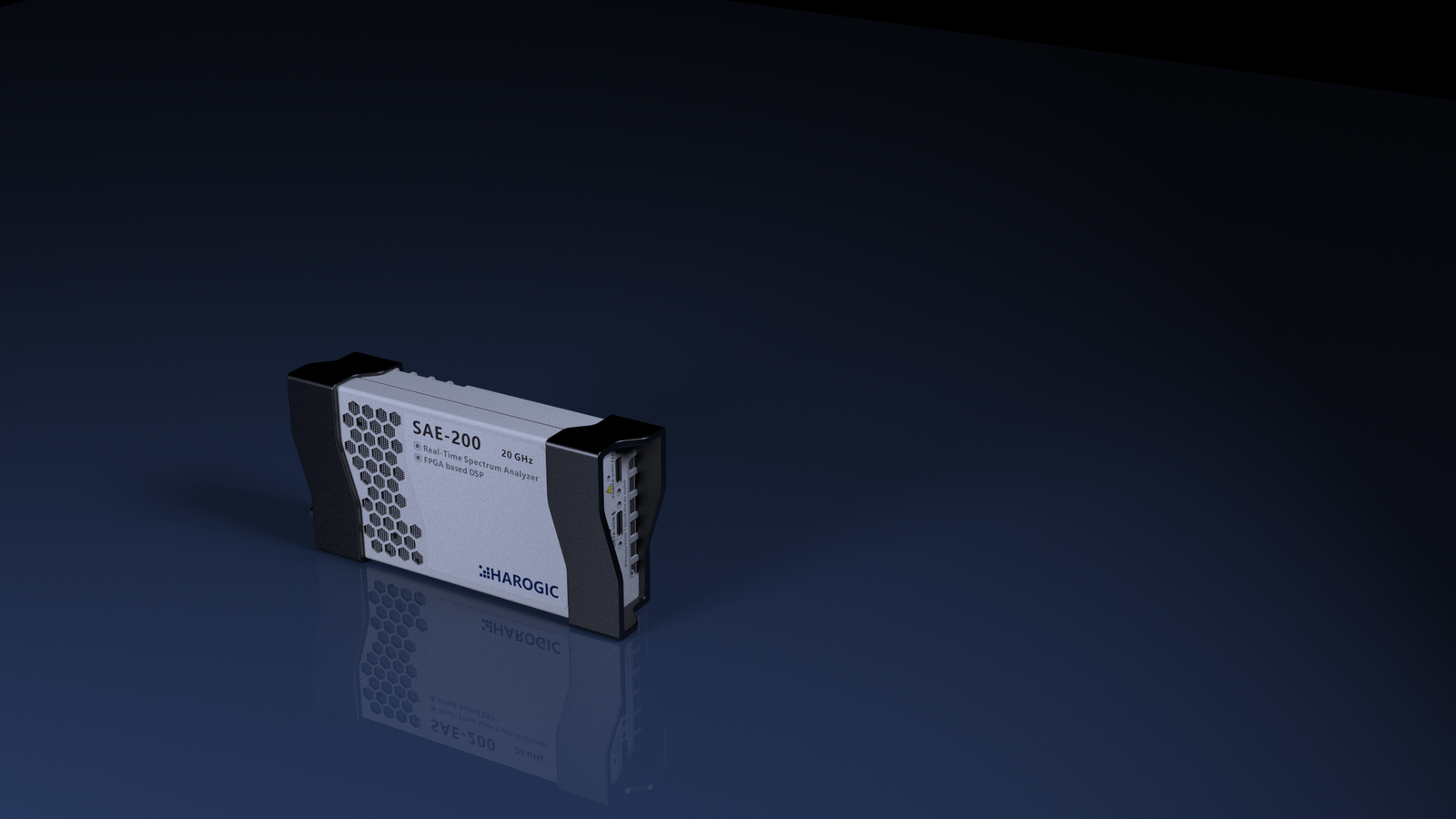

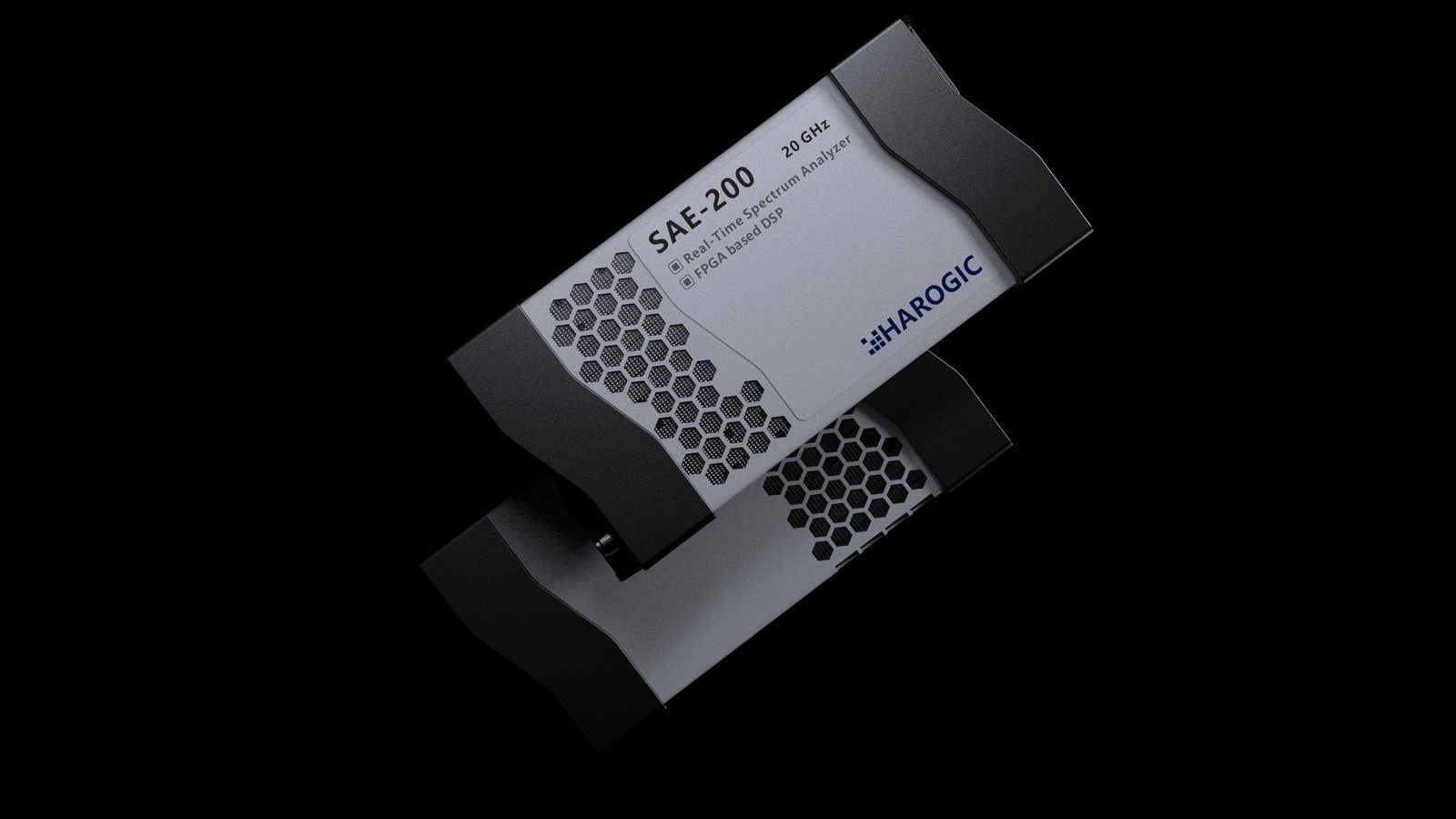

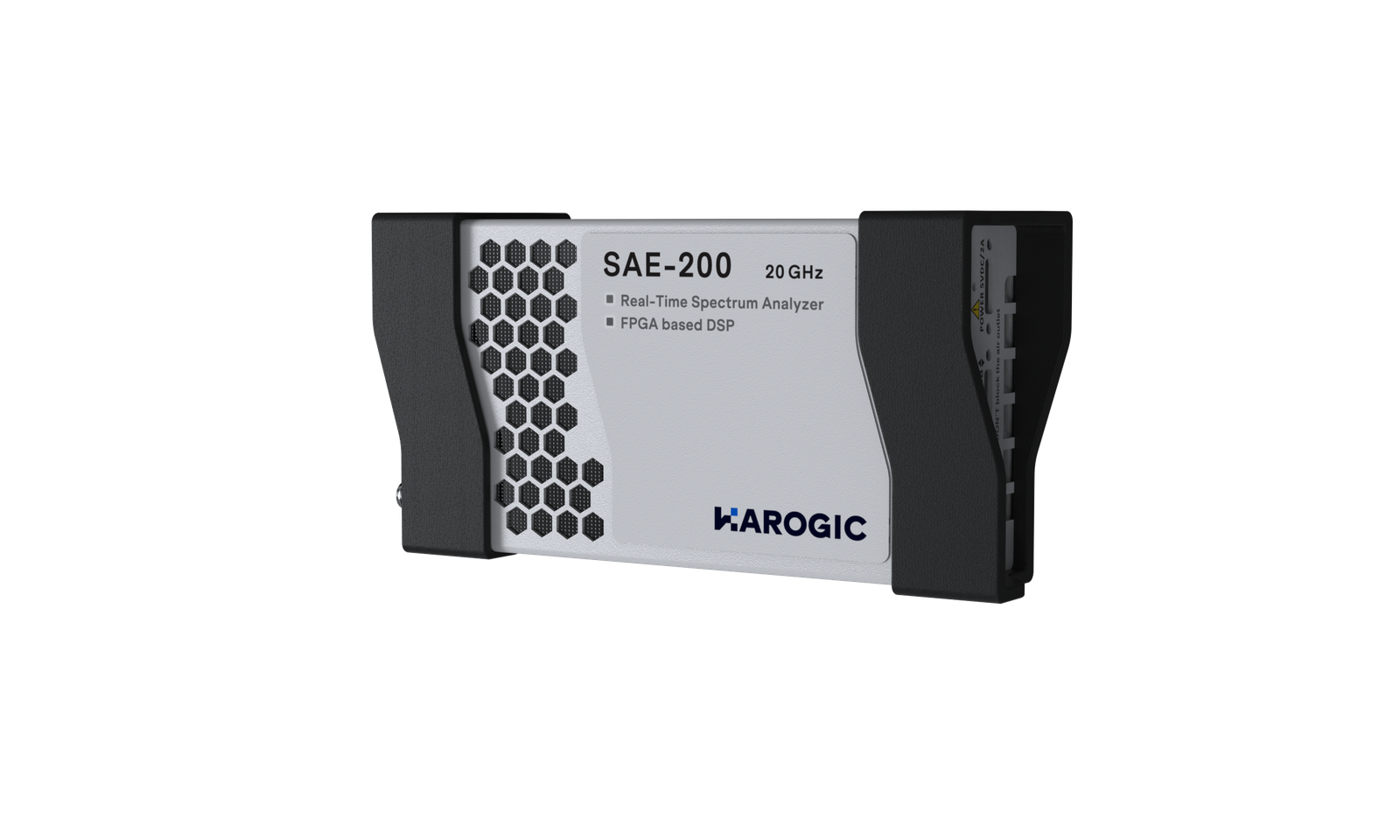

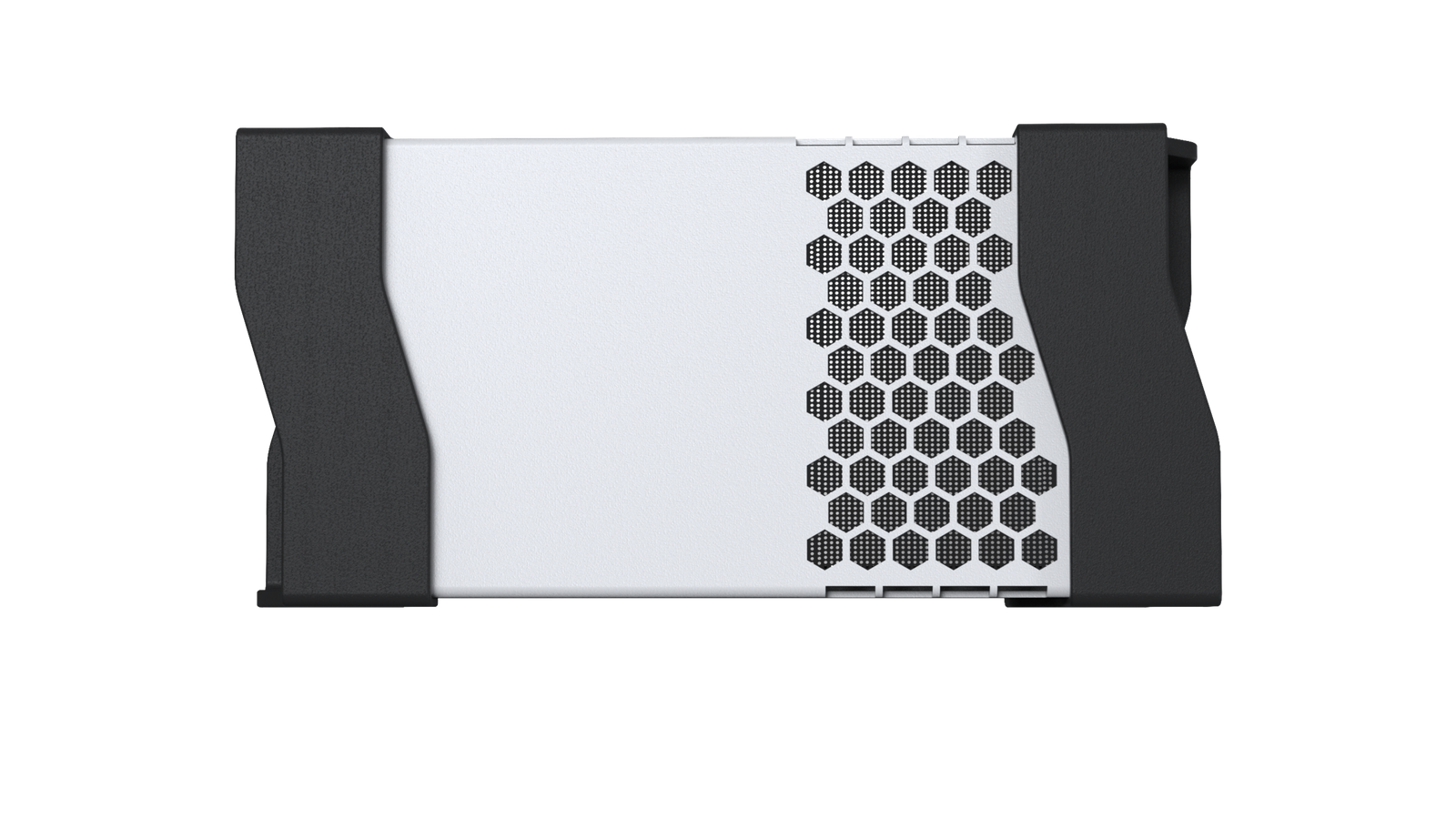

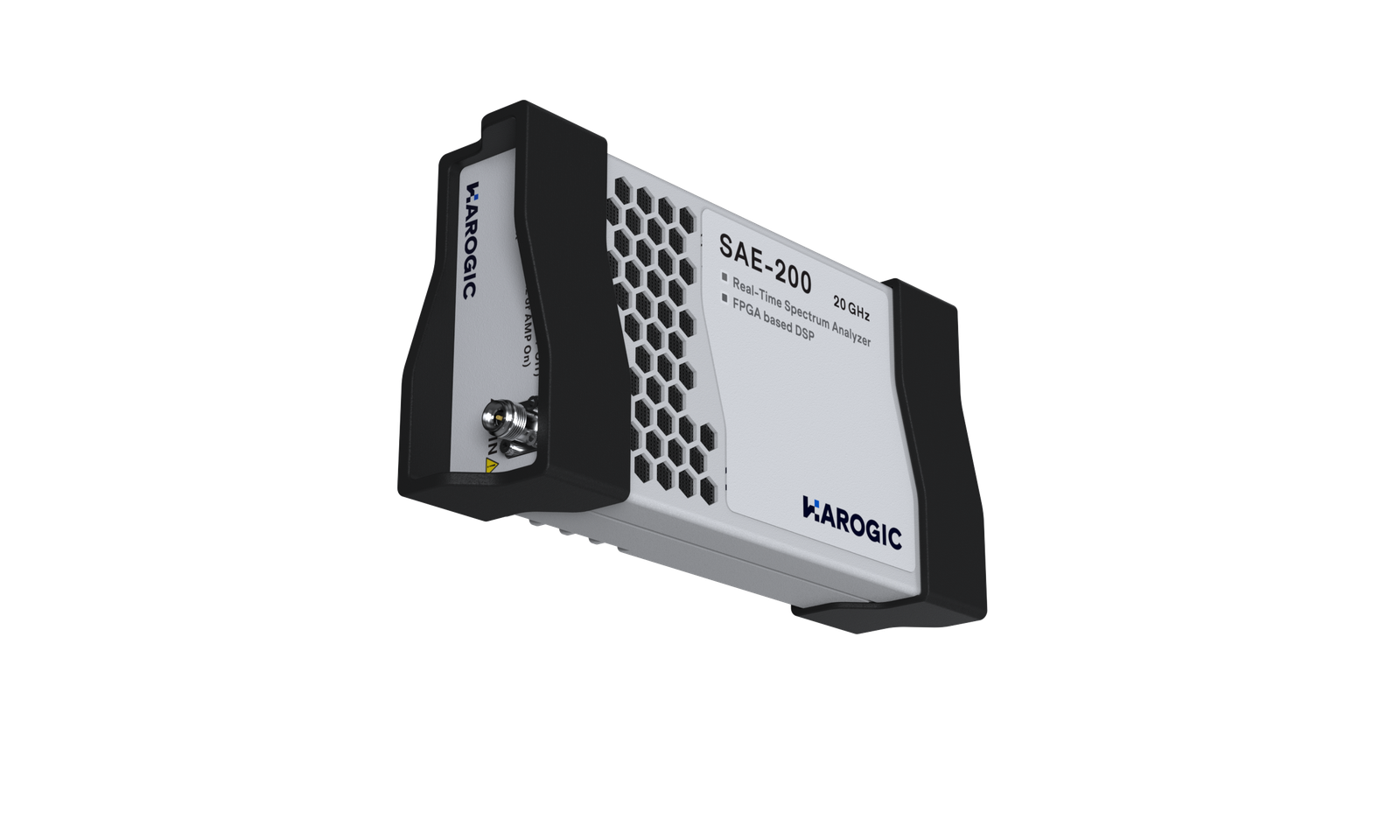

SAE-200
9 kHz – 20 GHz
9 kHz – 20 GHz
Available Models Comparison
Options
Code
Option
Description
05
Internal high precision GNSS
Built-in Hardware
06
Build-in GNSS disciplined reference clock
Built-in Hardware
20
MUXIO IO Board
Accessory
21
External GNSS
Accessory
22
External High Precision GNSS
Accessory
23
External GNSS Disciplined OCXO Reference Clock
Accessory
40
T1 Temperature Class
Built-in Hardware
41
T2 Temperature Class, Only Available for Core
Built-in Hardware
71
Basic Digital Modulation Analysis
Software
72
Pulse detection
Software
