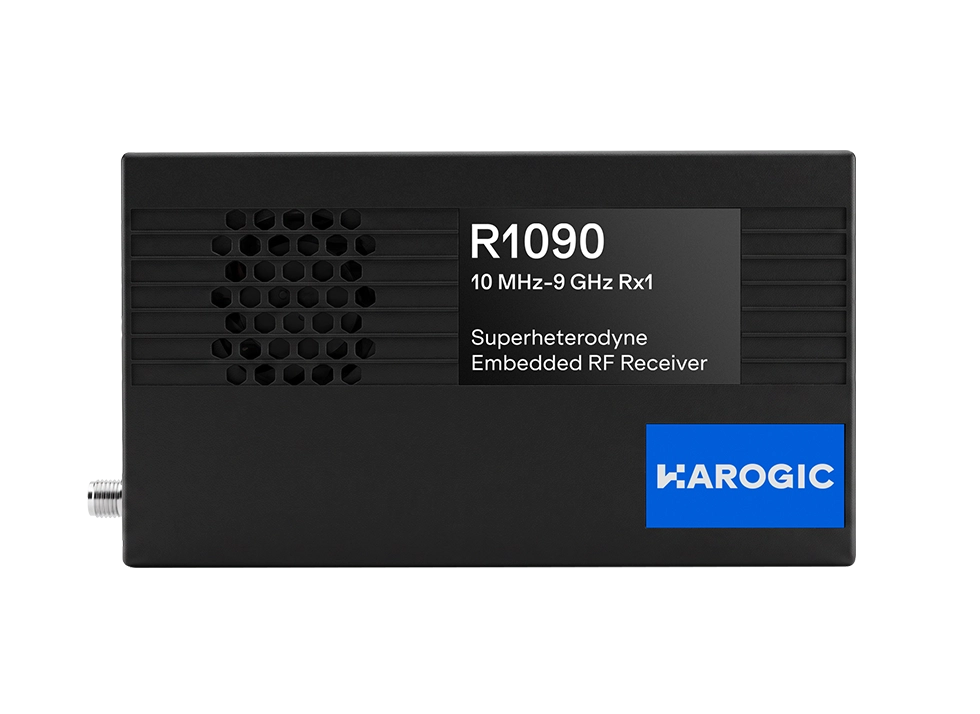

R1000 Series Embedded RF Receiver
Integrates a single-channel superheterodyne RF receiver and Raspberry Pi 5 module in a compact aluminum enclosure. Frequency up to 40 GHz with up to 100 MHz real-time bandwidth.
- Frequency: 10 MHz to 6 / 9 / 20 / 40 GHz
- Computing: Raspberry Pi 5 Onboard
- Real-Time BW: 50 MHz / 100 MHz (opt.)
- Phase Noise: -110 dBc/Hz @ 1 GHz
- Deployment: PoE / Distributed Edge Nodes

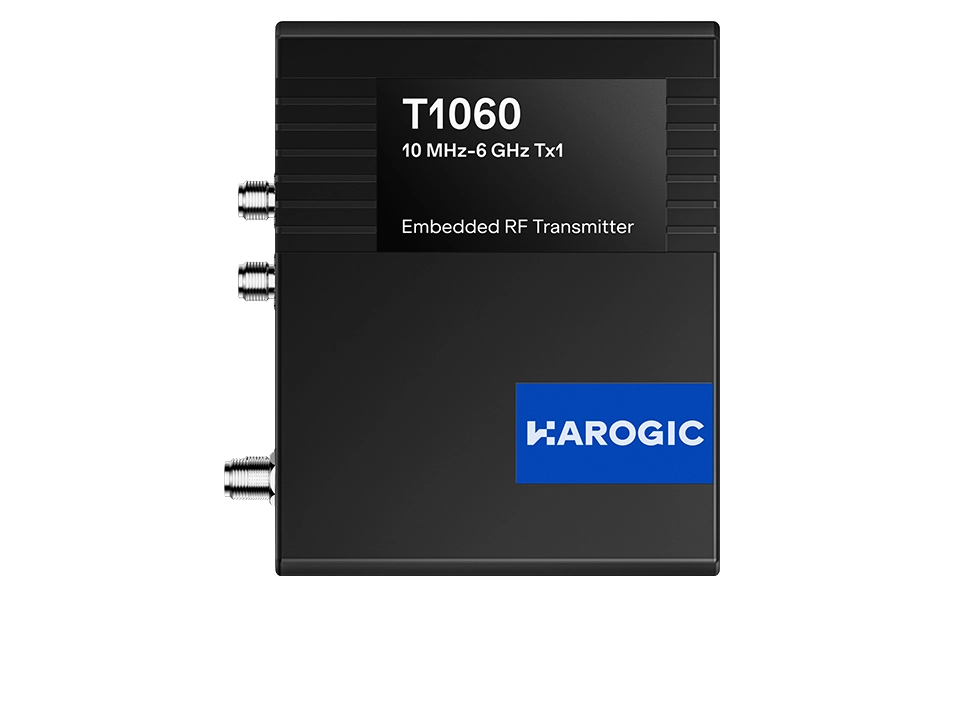

T1000 Series Embedded RF Transmitter
Self-contained RF transmit chain paired with Raspberry Pi 5 computing. Covers 10 MHz to 6 GHz with 100 MHz real-time bandwidth and a precision 16-bit DAC for autonomous waveform playback.
- Frequency: 10 MHz to 6 GHz
- Real-Time BW: 100 MHz (125 MS/s)
- DAC Resolution: 16-bit High Fidelity
- Output Power: 7–14 dBm (25 dBm opt.)
- Computing: Raspberry Pi 5 Onboard
Hardware Architecture & Software Ecosystem
Edge Embedded Computing
Onboard Raspberry Pi 5 quad-core processing executes autonomous signal classification, recording, and local alerting without needing external PC tethering.
Multi-Band Preselection Filtering
Superheterodyne front-ends with up to 14 preselection filter banks suppress strong adjacent channel interferers and out-of-band blockers.
High-Speed Data Interfaces
Choose from ultra-high-speed PCIe 3.0 x8 for zero-loss 2.5 GB/s streaming, Gigabit Ethernet with PoE for remote masts, or USB 3.0 for desktop prototyping.
Comprehensive SDK Ecosystem
Develop rapidly using standard C++, Python, Qt APIs, and official GNU Radio out-of-tree blocks for Linux, Windows, and Raspberry Pi OS.
