Key Facts
- Frequency range: 100 kHz to 6 GHz
- Number of Ports: 2 ports
- High-performance directional coupler with effective directivity >40 dB
- Output power: -35 dBm to 5 dBm
- Dynamic range: 100 dB to 120 dB (typ.)
- Trace noise: ≤0.003 dBrms (typ.)
- IF bandwidth: 15 Hz to 75 kHz
- Sweep speed: 150 us/point at 75 kHz IF bandwidth
- Supports the ECB-60 electronic calibration module
- Ultra-compact design: 86 x 70 x 36 mm

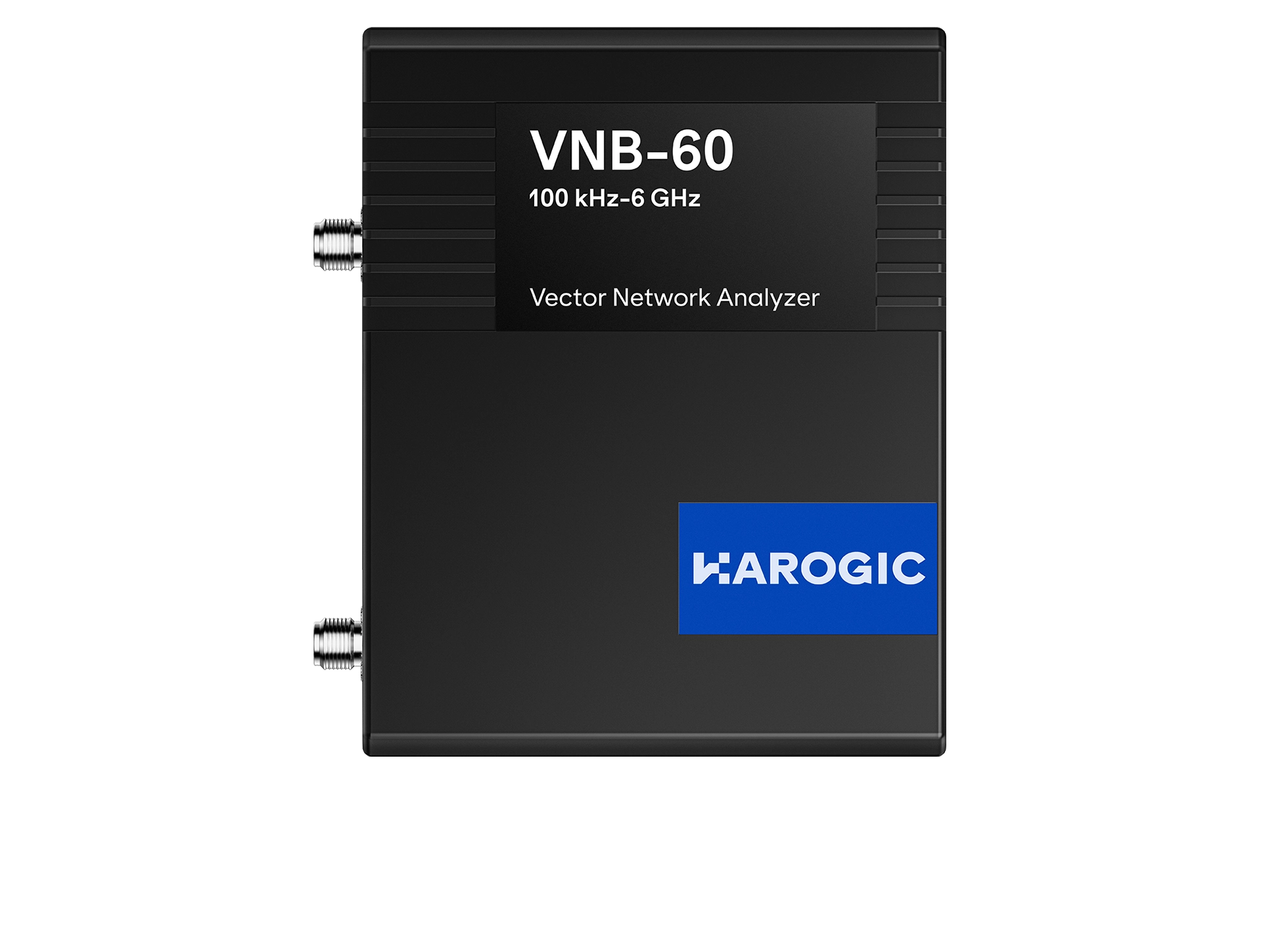

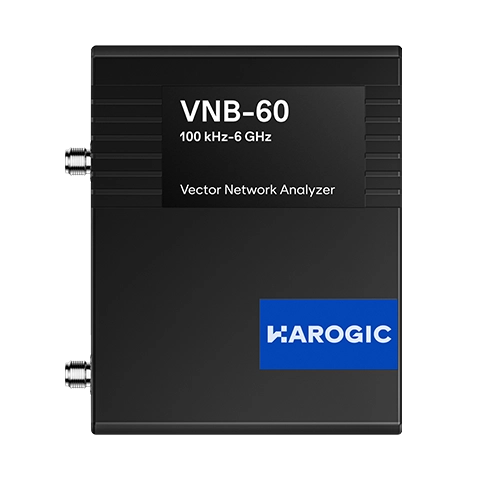

Available Models & Views
Technical Overview
The HAROGIC VNB-60 is a precision dual-port USB vector network analyzer covering 100 kHz to 6 GHz. Designed for high accuracy and laboratory versatility, it provides complete S-parameter characterization (S11, S12, S21, S22) with a typical dynamic range of 100–120 dB and directivity ≥40 dB. Paired with VNStudio PC software, it accelerates the design, tuning, and production verification of RF components including filters, amplifiers, antennas, and cables.
Full 2-Port S-Parameter Measurements
Measure return loss, insertion loss, phase response, isolation, and group delay simultaneously across both ports with bidirectional switching.
120 dB High Dynamic Range
Low noise floor and exceptional receiver linearity allow deep out-of-band rejection measurements on narrowband duplexers, cavity filters, and high-attenuation devices.
Electronic Calibration (ECB-60)
Fast, automated calibration via the ECB-60 module reduces user connection error and streamlines multi-point factory test workflows.
VNStudio Software & Data Export
Intuitive PC suite provides Smith charts, polar plots, VSWR analysis, marker math, and one-click export to Touchstone (.s2p) and CSV formats for RF simulation.
