Key Facts
- Frequency Range: 100 kHz to 6 GHz
- Number of Ports: 2 ports
- High-performance directional coupler with effective directivity >40 dB
- Output power: -35 dBm to 5 dBm
- Dynamic range: 100 dB to 120 dB (typ.)
- Trace noise: ≤0.003 dBrms (typ.)
- IF bandwidth: 15 Hz to 75 kHz
- Sweep speed: 150 us/point at 75 kHz IF bandwidth
- Supports the ECB-60 electronic calibration module
- 5-hour battery life with power bank support
Available Models & Views
Technical Overview
The HAROGIC PNB-60 brings laboratory-grade vector network analysis into a lightweight 1.4 kg handheld instrument. Covering 100 kHz to 6 GHz with bidirectional 2-port S-parameter measurements, it features high directivity (≥40 dB), up to 120 dB dynamic range, and a responsive 10.1-inch touch display. With up to 5 hours of battery endurance and portable power bank support, the PNB-60 is built for field installation, antenna tuning, cable fault location, and aerospace maintenance.
True Handheld Field Precision

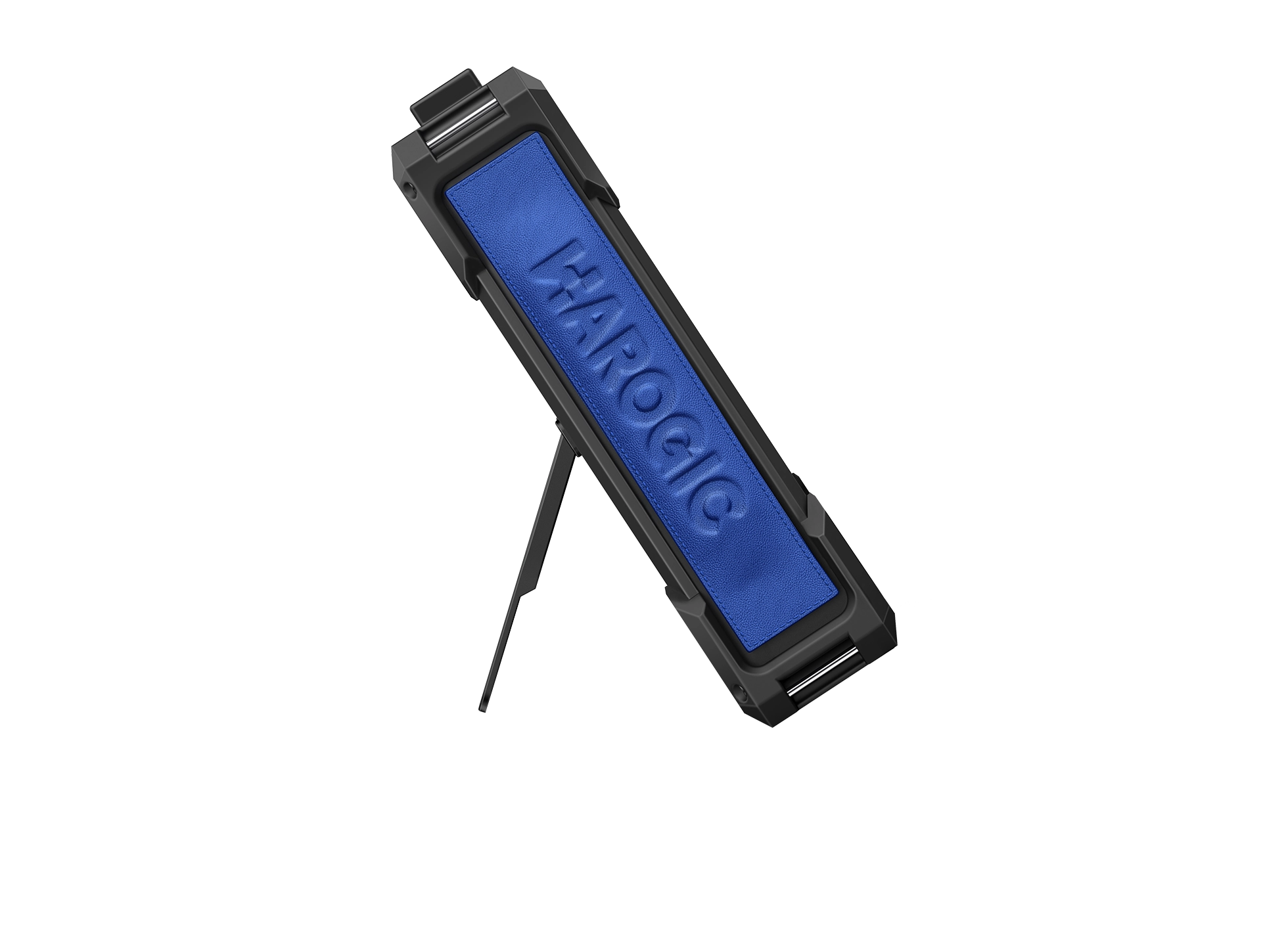

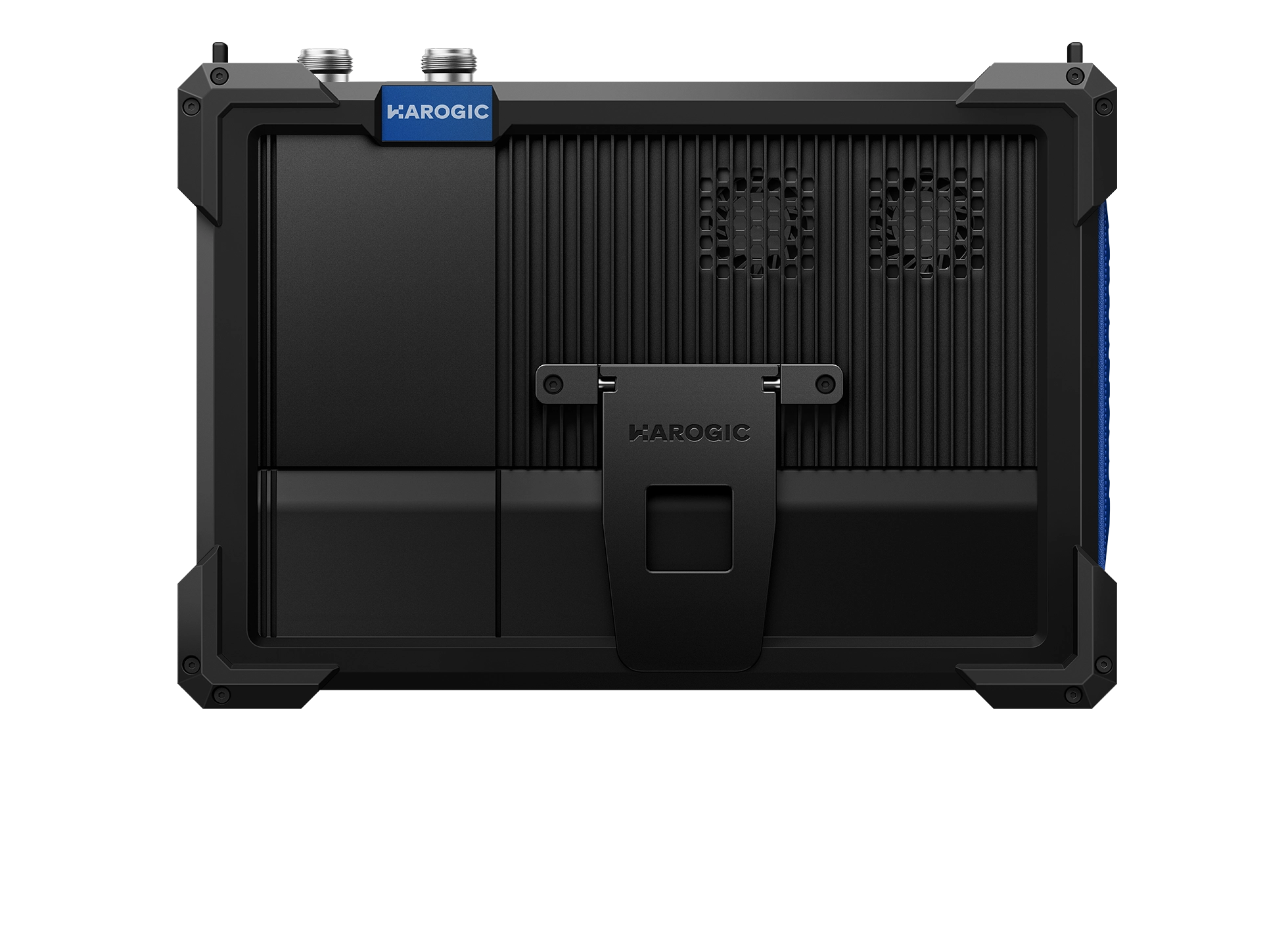

Weighs only 1.4 kg with a rugged, shock-absorbing enclosure and integrated kickstand. Perform complete 2-port cable and antenna verification without hauling a heavy benchtop analyzer.

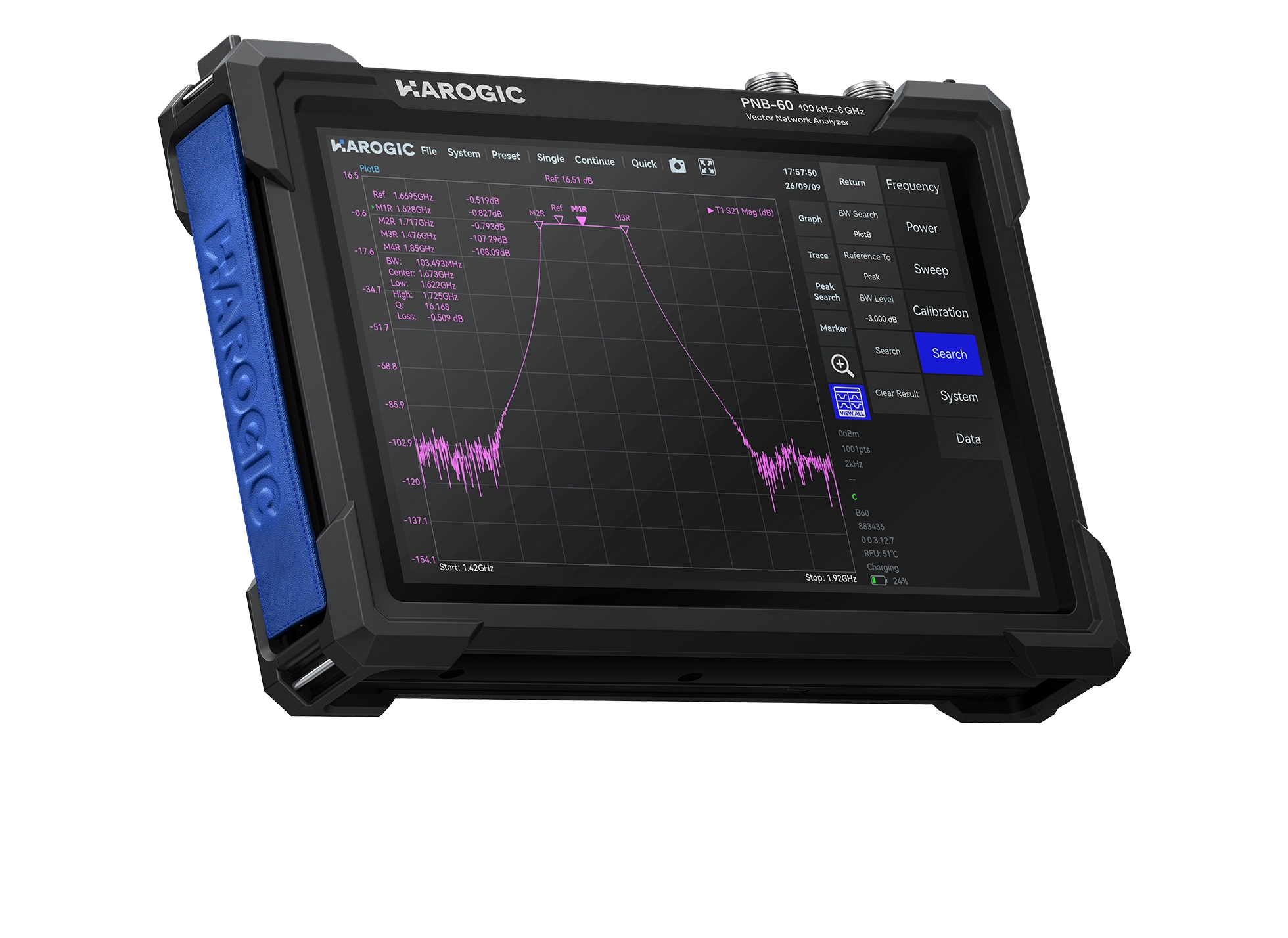

10.1" Capacitive Multi-Touch Display
Generous high-definition screen allows intuitive trace panning, marker adjustments, and simultaneous multi-parameter displays (Smith Chart, Phase, VSWR, and Return Loss).
5-Hour Field Battery Endurance
High-density battery powers up to 5 hours of continuous measurement, backed by standard USB-C power delivery for easy recharging from field vehicles or battery banks.

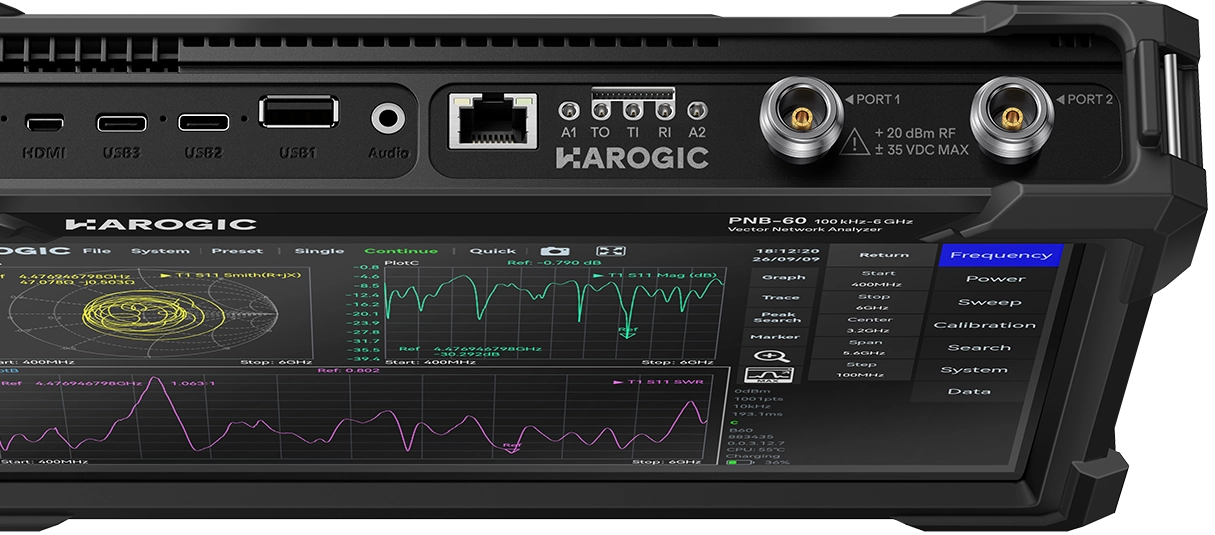

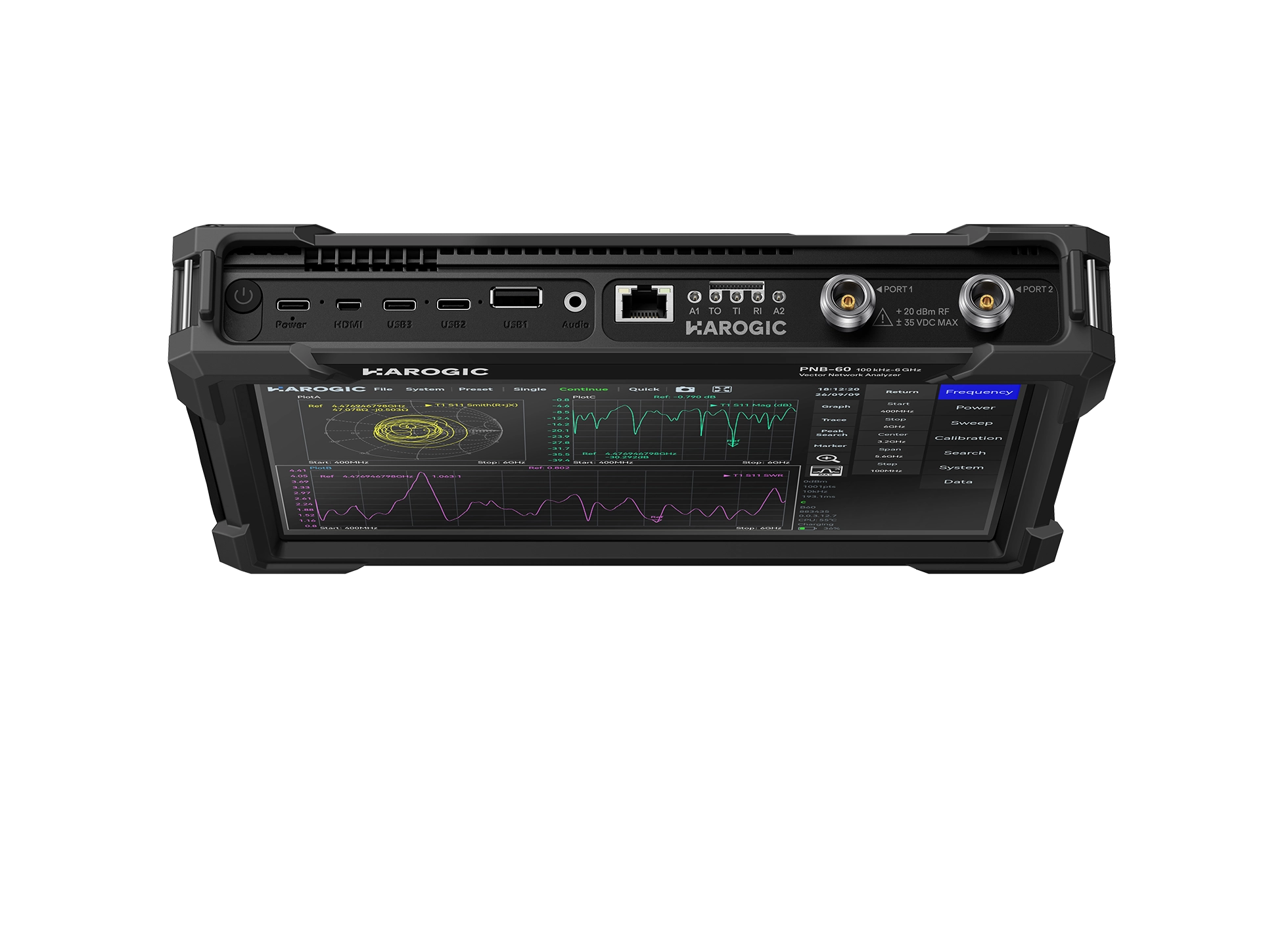

SCPI Automation & Remote Control
Gigabit LAN and USB connectivity allow the PNB-60 to be controlled via standardized SCPI command sets, integrating smoothly into automated factory or test-van setups.
