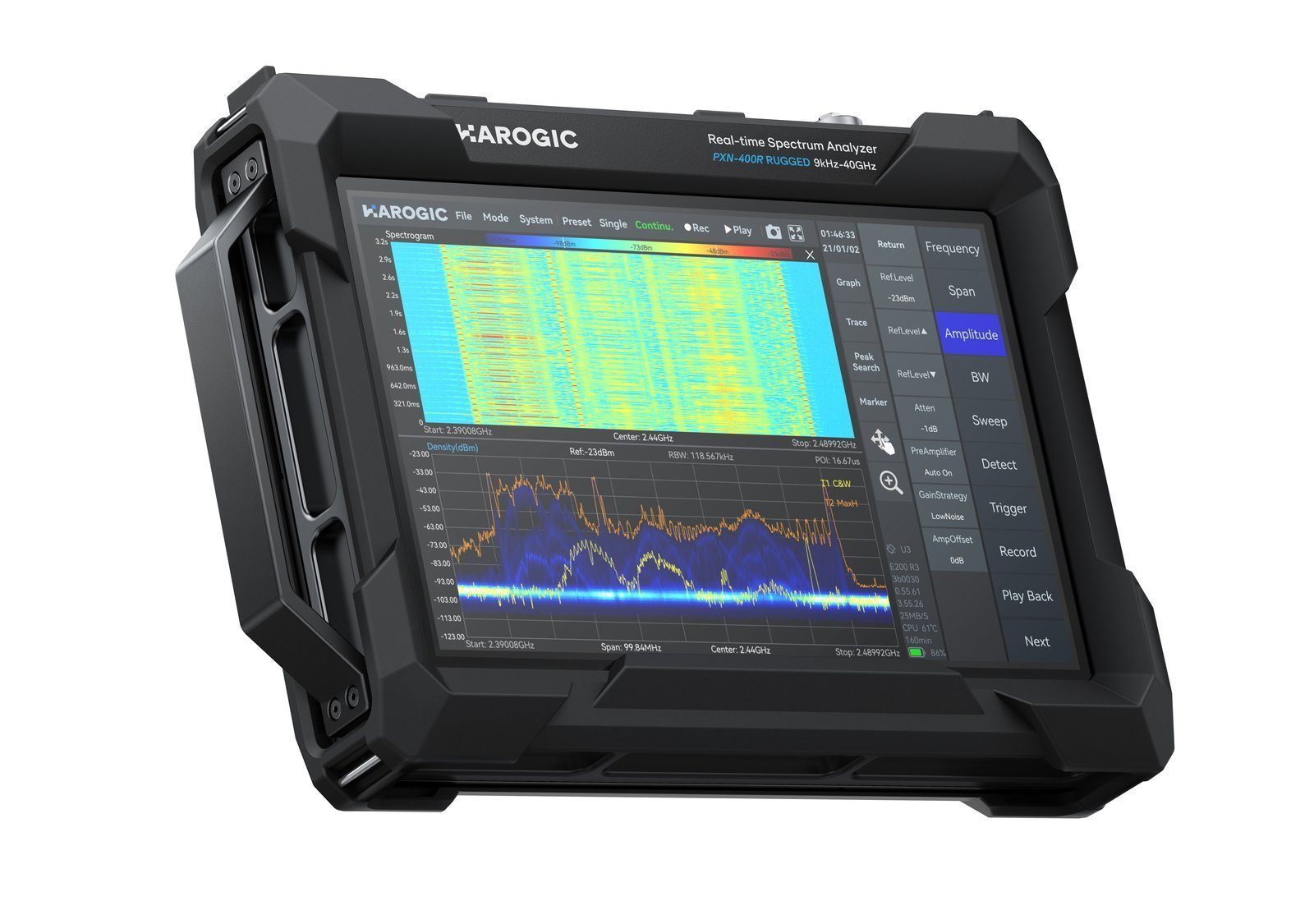

PX Series Rugged
Key Facts

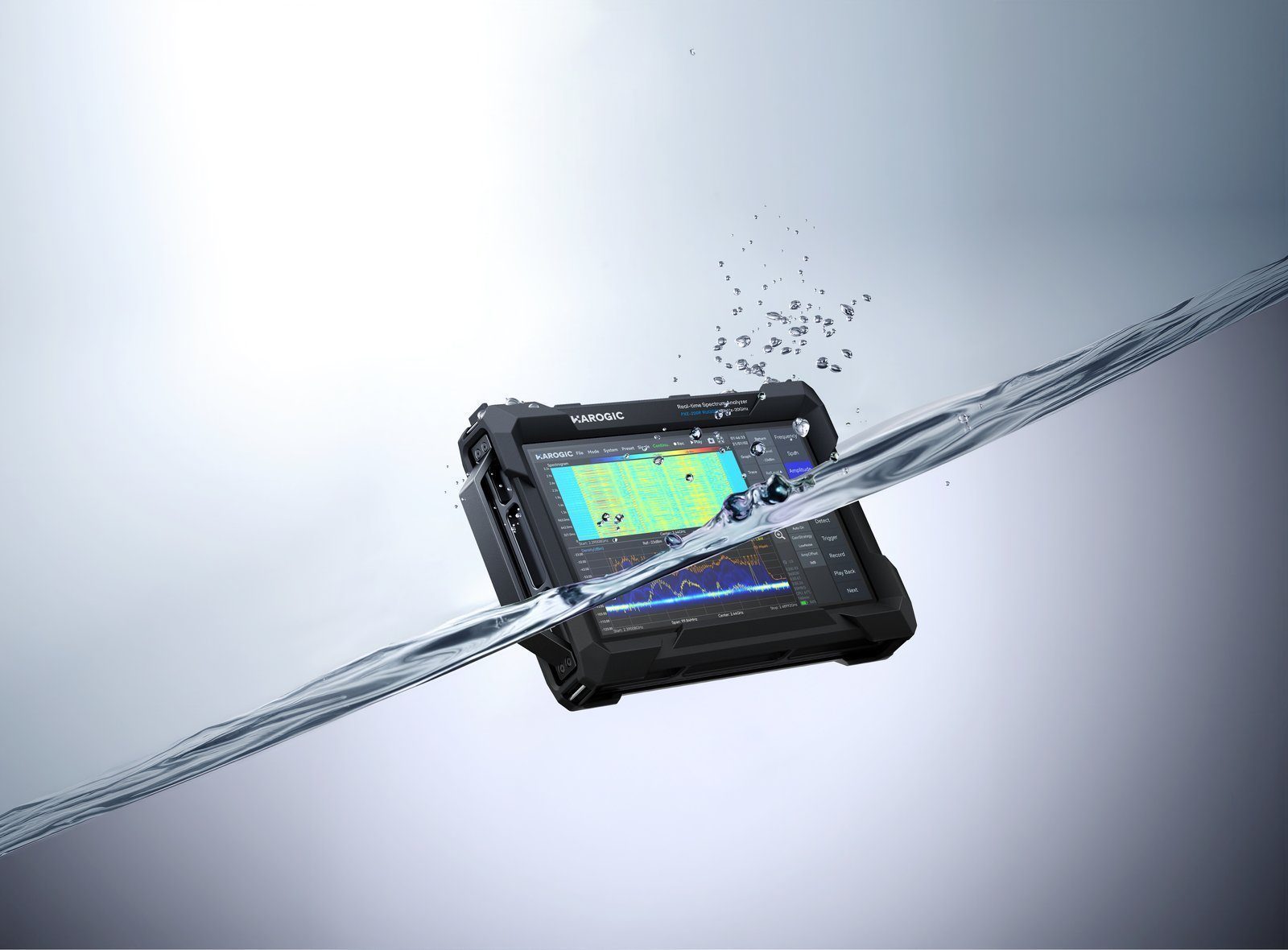

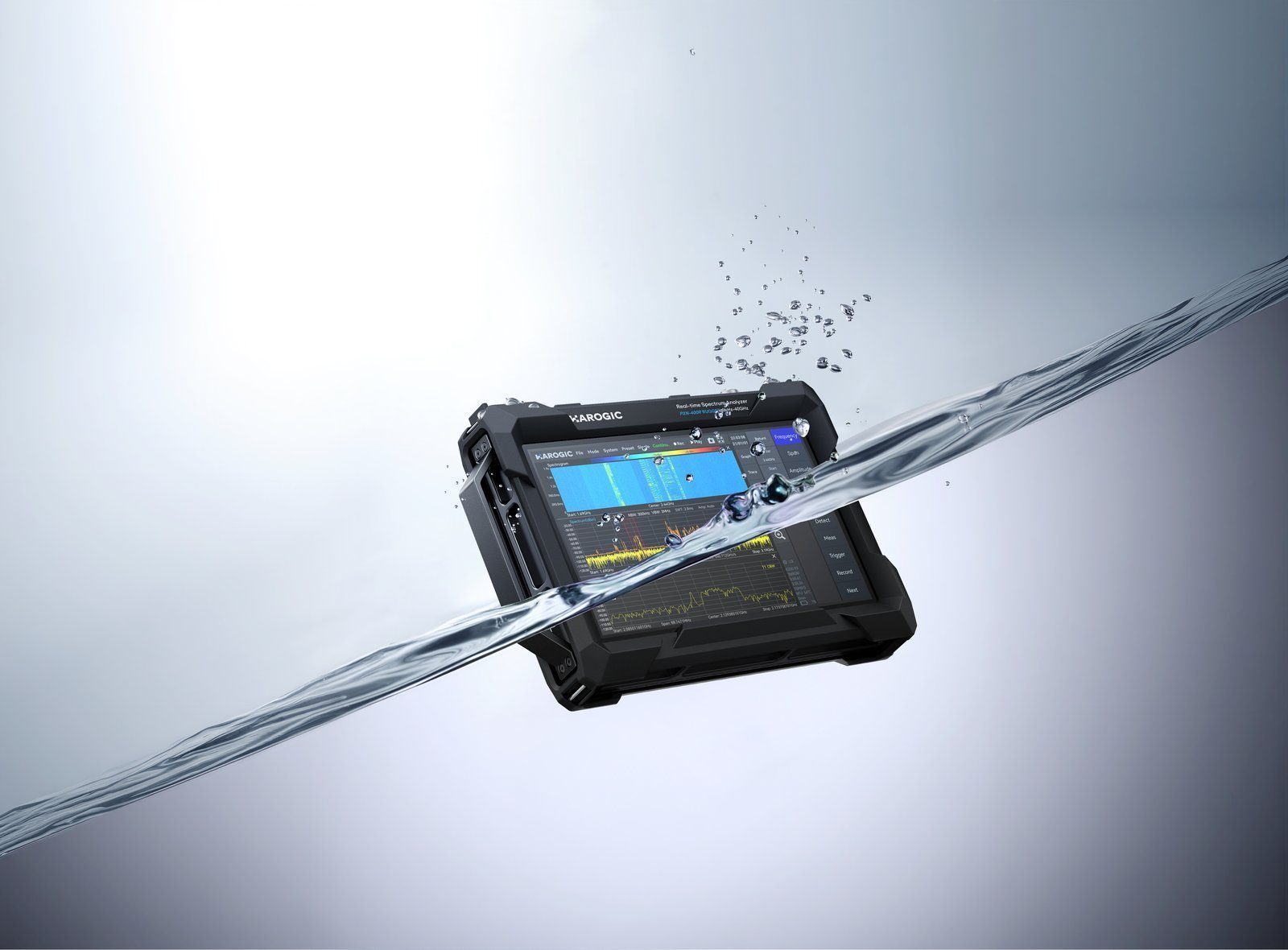

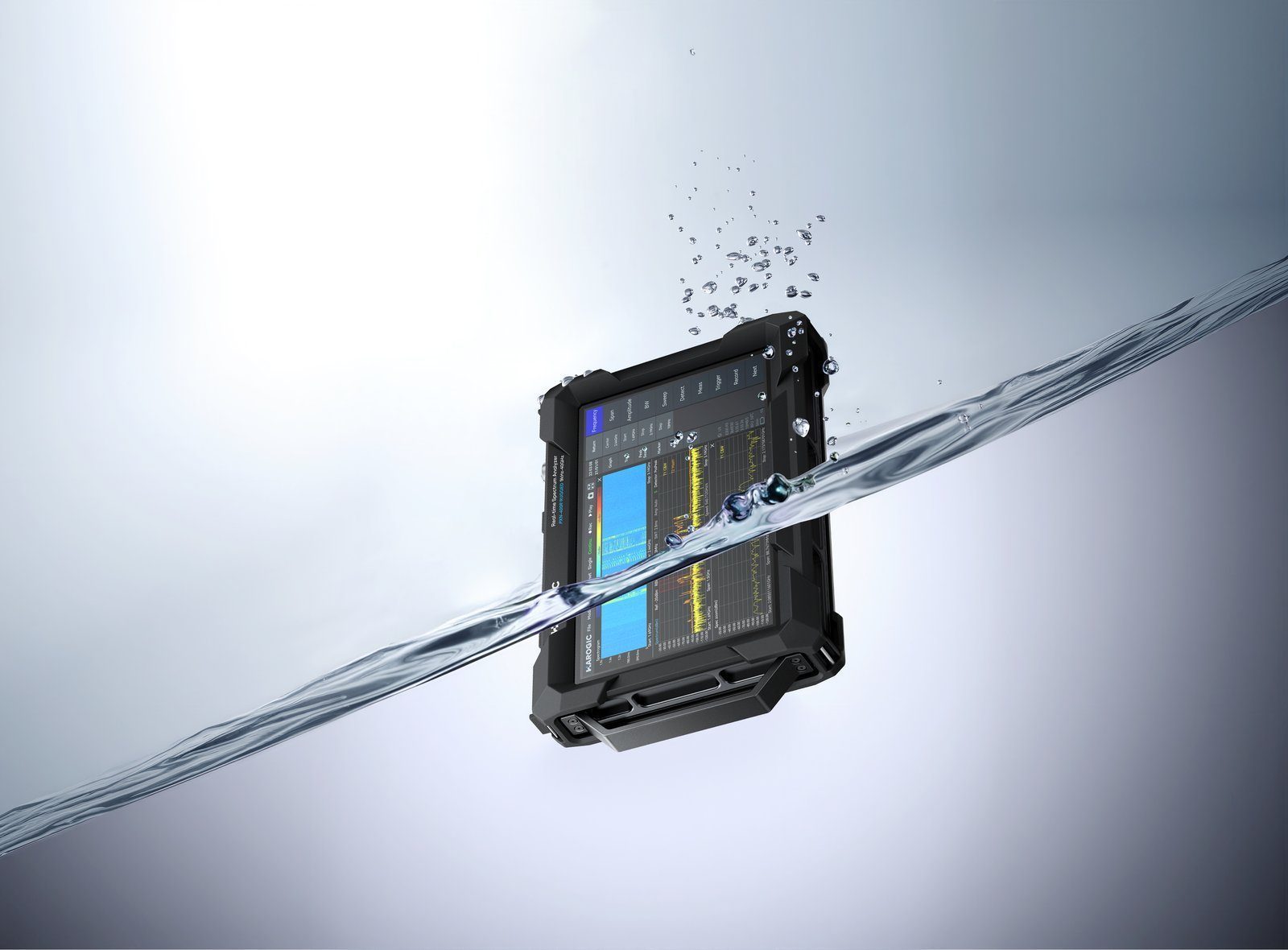

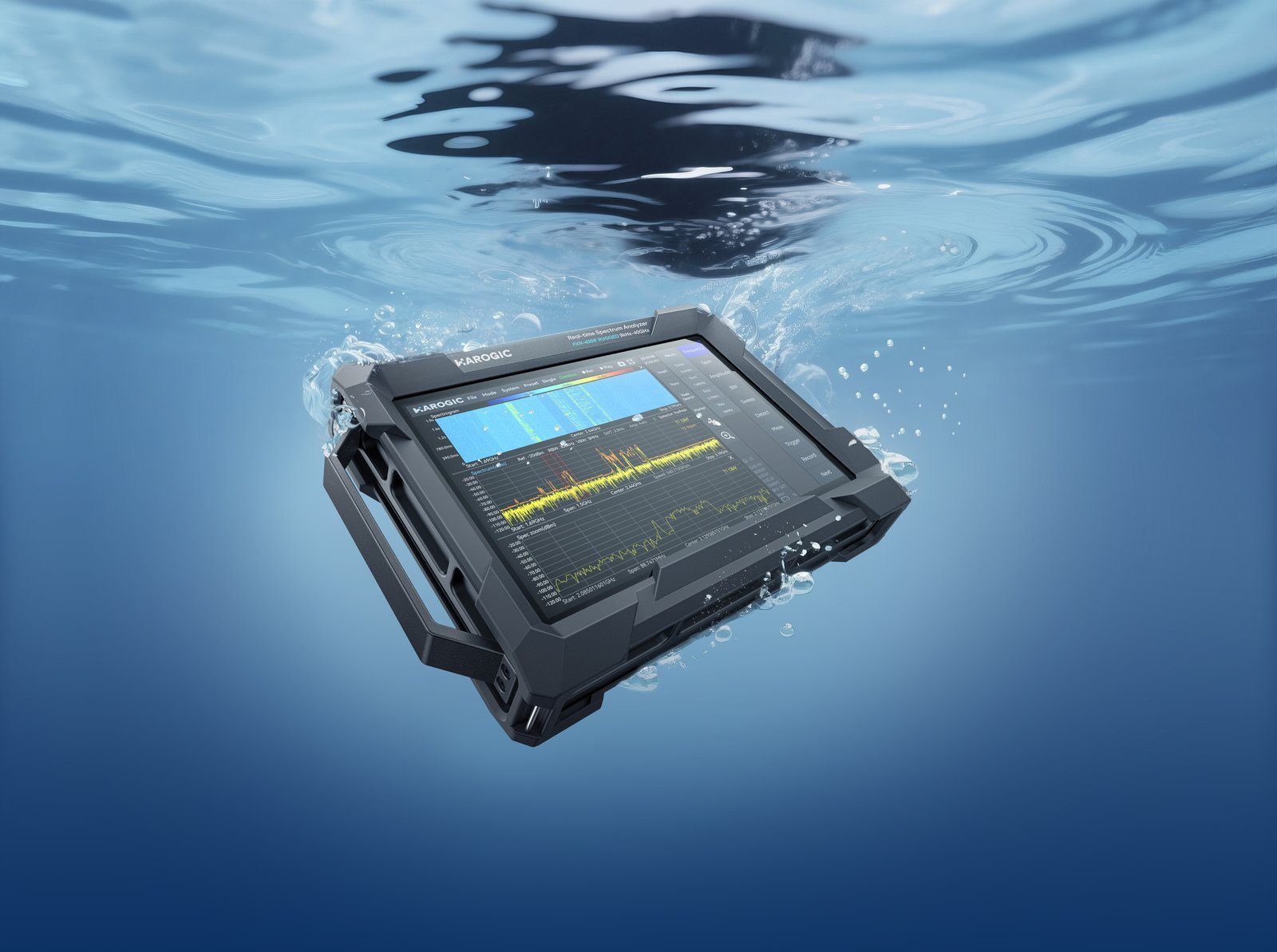

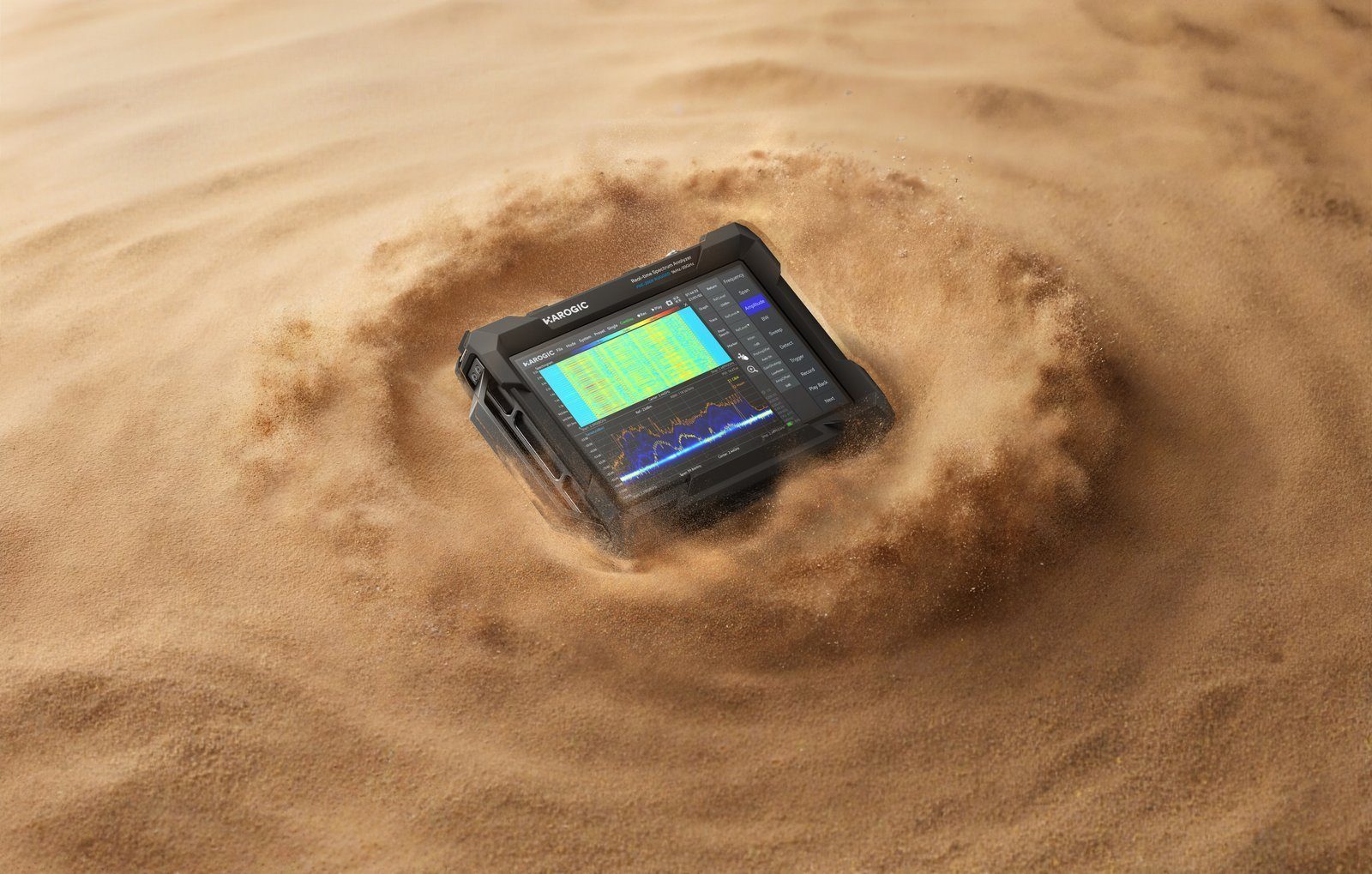

- IEC IP68 certified
- MIL-STD-810H method-512.6/514.8/516.8 certified
- 2.5 kg lightweight, 10.1-inch multi touchscreen
- Frequency range: 9 kHz to 9.5/20/40 GHz
- 1 GHz DANL: -161 dBm/Hz
- Analysis Bandwidth: up to 100 MHz
- Operation time: 4 hours (typ.)
- Built-in Nvidia Jetson Orin NX 8G (opt.)
Available Models

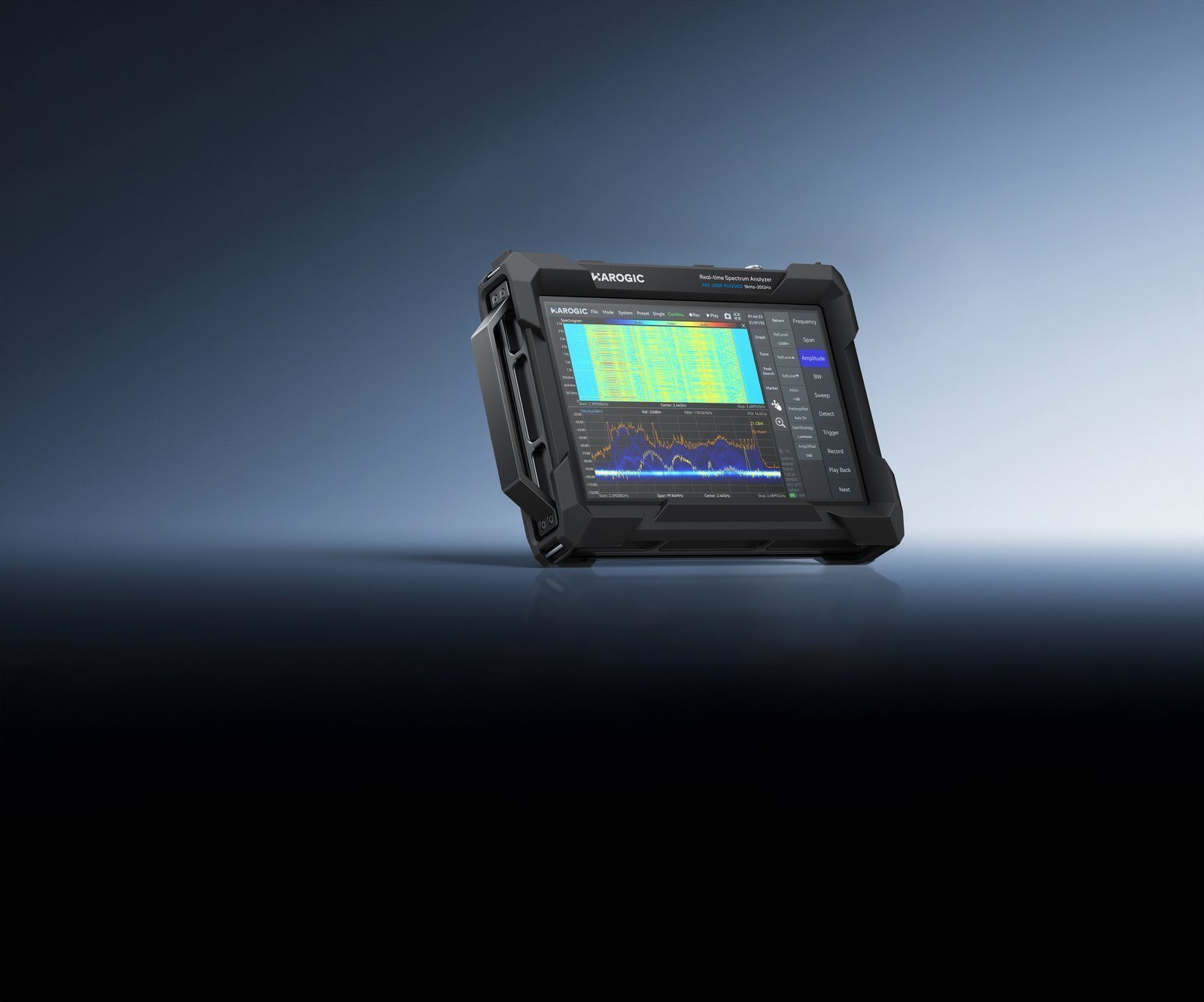

PXE-90R
9 kHz – 9.5 GHz
9 kHz – 9.5 GHz
PXE-200R
9 kHz – 20 GHz
9 kHz – 20 GHz

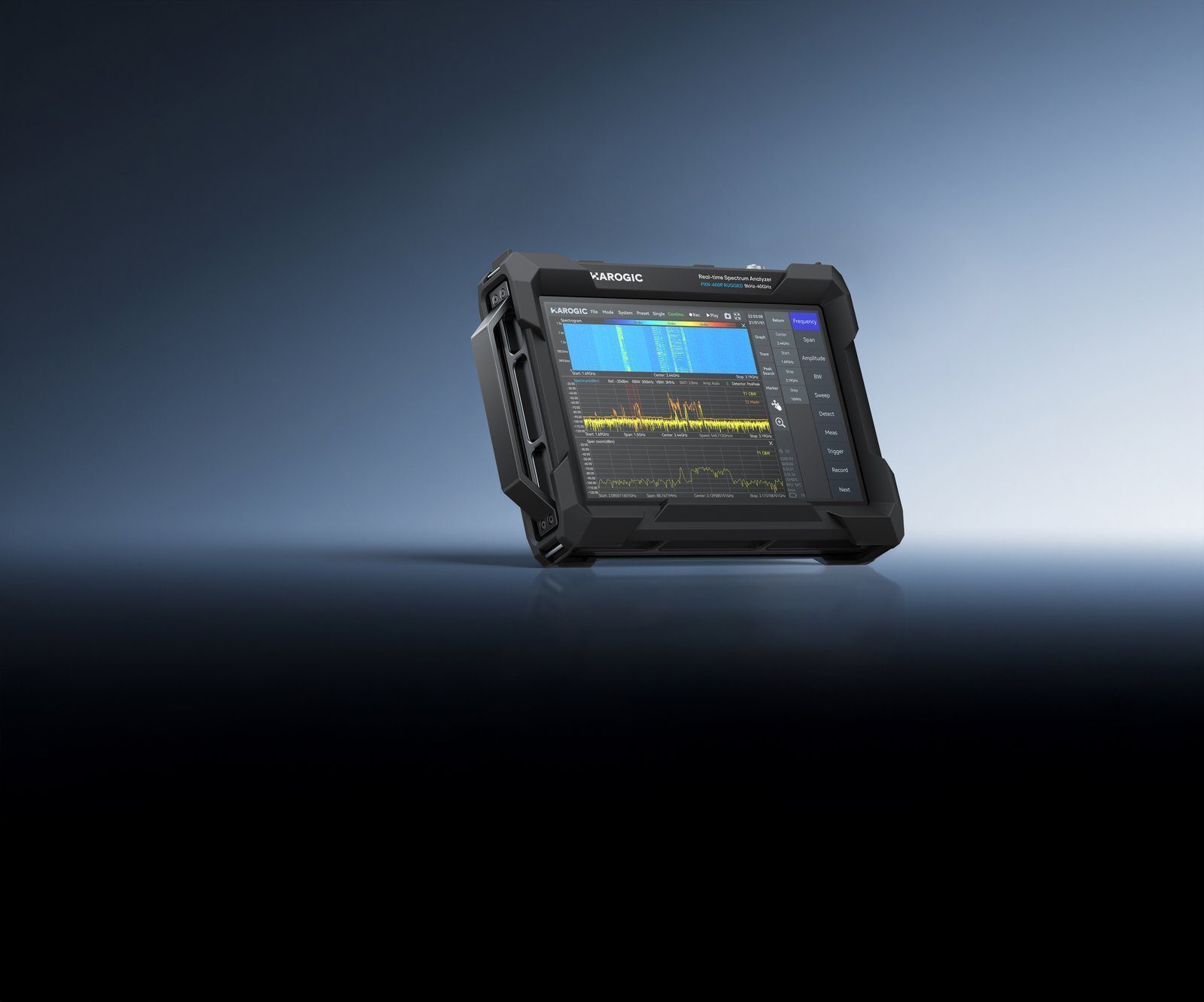

PXN-400R
9 kHz – 40 GHz
9 kHz – 40 GHz
Available Models Comparison
Options
Code
Option
Description
01
Built-in OCXO reference clock
built-in hardware
08
NVIDIA Orin NX 8GB
built-in hardware
34
External omnidirectional antenna, 400-8000MHz,
Gain<2dBi
Accessory
35
External active directional antenna, 0.5-10 GHz
Gain<5dBi(AMP OFF), Gain<25dBi (AMP ON)
Gain<5dBi(AMP OFF), Gain<25dBi (AMP ON)
Accessory
71
Basic digital modulation analysis
Software
72
Pulse signal measurement
Software
